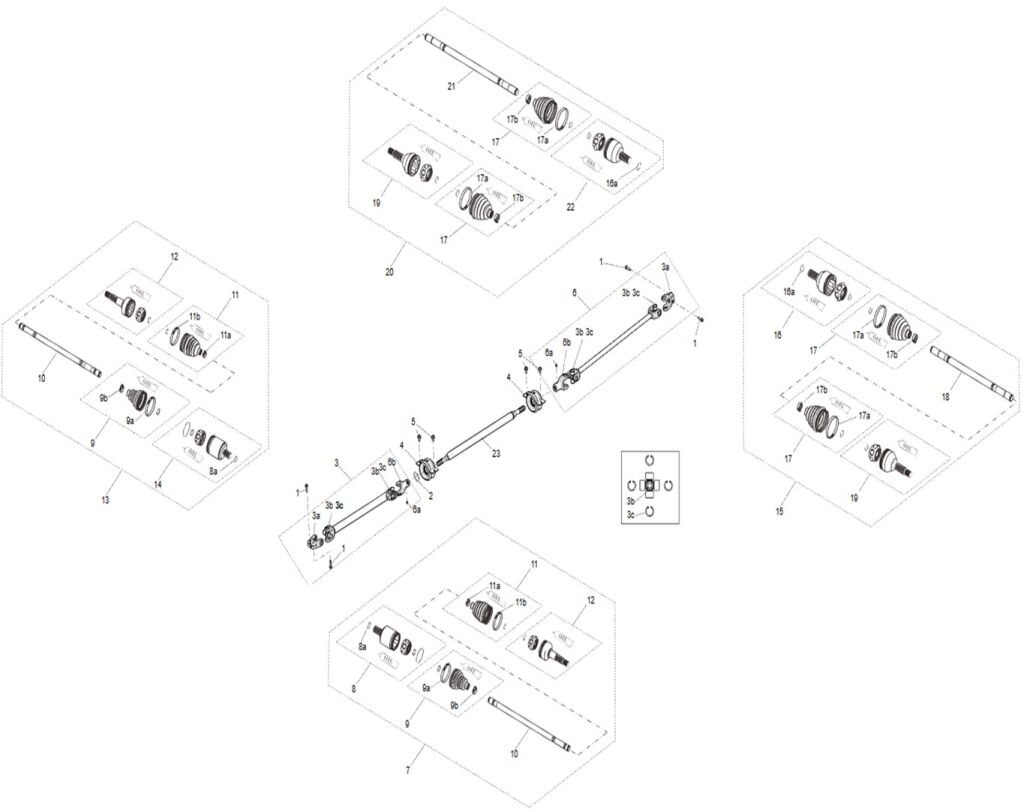

Drive Shaft Assembly

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_240_UT10_CREW_U3
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 BOLT M8×35 (Ref. č 1) A03F11001101 BOLT M8×35  4 € 2,40 € 3
SKLADOM
11a U01P11004001 SMALL CLAMPING BAND  1 € 2,48 € 3
NA DOPYT
11b U01P11002001 BIG CLAMPING BAND  1 € 2,48 € 3
NA DOPYT
12 OUTSIDE BALL CAGE ASSY (Ref. č 12) U01P11020001 OUTSIDE BALL CAGE ASSY  1 € 56,45 € 69
SKLADOM
13 U01_CONSTANT VELOCITY DRIVE SHAFT FR (Ref. č 13) U01P12000001 U01_CONSTANT VELOCITY DRIVE SHAFT FR  1 € 147,77 € 182
SKLADOM
14 U01P12030001 FR INNER BALL CAGE ASSY  1 € 56,45 € 69
NA DOPYT
15 U09_CONSTANT VELOCITY DRIVE SHAFT RL (Ref. č 15) U09P14000001 U09_CONSTANT VELOCITY DRIVE SHAFT RL  1 € 167,11 € 206
SKLADOM
16 U09P14020001 RL INNER BALL CAGE ASSY  1 € 19,34 € 24
NA DOPYT
16a U09P13006001 CIRCLIP  1 € 2,48 € 3
NA DOPYT
17 MAINTENANCE KIT FOR REAR SHAFT ASSY (Ref. č 17) U09P13030001 MAINTENANCE KIT FOR REAR SHAFT ASSY  2 € 19,34 € 24
SKLADOM
17a U09P13002001 BIG CLAMPING BAND  2 € 2,48 € 3
NA DOPYT
17b U09P13004001 SMALL CLAMPING BAND  2 € 2,48 € 3
NA DOPYT
18 U09P14005001 RL SHAFT  1 € 35,54 € 44
NA DOPYT
19 U09P13010001 OUTSIDE BALL CAGE ASSY  1 € 60,50 € 74
NA DOPYT
20 U09_CONSTANT VELOCITY DRIVE SHAFT RR (Ref. č 20) U09P13000001 U09_CONSTANT VELOCITY DRIVE SHAFT RR  1 € 167,93 € 207
SKLADOM
21 U09P13005001 RR SHAFT  1 € 35,54 € 44
NA DOPYT
22 U09P13020001 RR INNER BALL CAGE ASSY  1 € 61,32 € 75
NA DOPYT
11 MAINTENANCE KIT FOR OUTSIDE BALL CAGE ASSY (Ref. č 11) U01P11050001 MAINTENANCE KIT FOR OUTSIDE BALL CAGE ASSY  1 € 14,79 € 18
SKLADOM
10 U01P11005001 SHAFT  1 € 32,31 € 40
NA DOPYT
2 GBT000894012 CIRCLIP 30  1 € 2,48 € 3
NA DOPYT
3 S03P21100002 FRONT DRIVE SHAFT FRONT SECTION ASSEMBLY  1 € 137,02 € 169
NA DOPYT
3a U01P21101001 TRANSMISSION SHAFT MOUNTING SPLINE FORK  2 € 30,83 € 38
NA DOPYT
3b UNIVERRSAL CROSS SHAFT ASSY (Ref. č 3b) U01P22010001 UNIVERRSAL CROSS SHAFT ASSY  4 € 23,80 € 29
SKLADOM
3c CIRCLIP 25 (Ref. č 3c) GBT000893007 CIRCLIP 25  16 € 2,48 € 3
SKLADOM

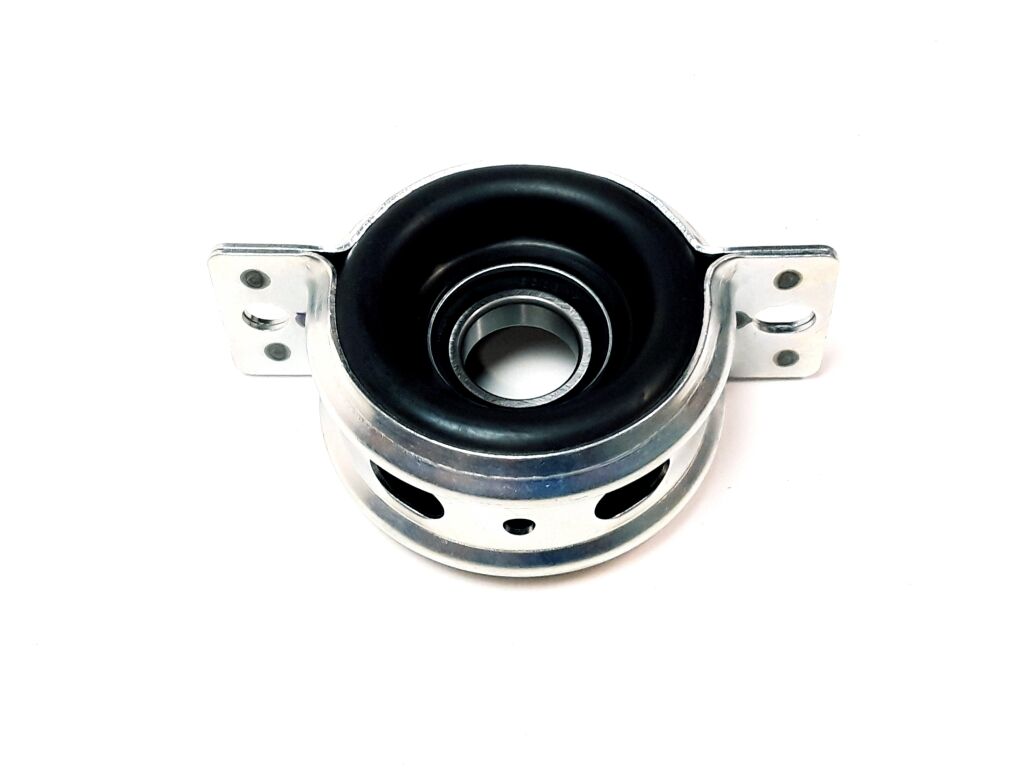

4 INTERMEDIATE SUPPORT SEAT (Ref. č 4) U01P21400001 INTERMEDIATE SUPPORT SEAT  2 € 35,04 € 43
NA DOPYT
5 Hexagon flange bolt M10×1.25×25 (Ref. č 5) GBT005789026 Hexagon flange bolt M10×1.25×25  4 € 2,48 € 3
SKLADOM
6 U09 REAR SECTION FRONT TRANSMISSION SHAFT (Ref. č 6) U09P21300001 U09 REAR SECTION FRONT TRANSMISSION SHAFT  1 € 115,21 € 142
NA DOPYT
6a Straight pressure oil cup (Ref. č 6a) GBT001152001 Straight pressure oil cup  2 € 5,04 € 6
SKLADOM
6b U09P21301001 TRANSMISSION SHAFT SLIDING SPLINE FORK  2 € 35,62 € 44
NA DOPYT
7 U01_CONSTANT VELOCITY DRIVE SHAFT FL (Ref. č 7) U01P11000001 U01_CONSTANT VELOCITY DRIVE SHAFT FL  1 € 148,18 € 182
NA CESTE
8 U01P11030001 FL INNER BALL CAGE ASSY  1 € 57,27 € 70
NA DOPYT
8a CIRCLIP (Ref. č 8a) U01P11011001 CIRCLIP  1 € 2,48 € 3
SKLADOM
9 MAINTENANCE KIT FOR INNER BALL CAGE ASSY (Ref. č 9) U01P11040001 MAINTENANCE KIT FOR INNER BALL CAGE ASSY  1 € 20,17 € 25
SKLADOM
9a U01P11008001 BIG CLAMPING BAND  1 € 2,48 € 3
NA DOPYT
9b U01P11006001 SMALL CLAMPING BAND  1 € 2,48 € 3
NA DOPYT
23 U03-P212000-000-00 front drive shaft(Mid)  1 € 54,21 € 67
NA DOPYT
Kód produktu SEGWAY_2_240_UT10_CREW_U3
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT10 Crew U3
