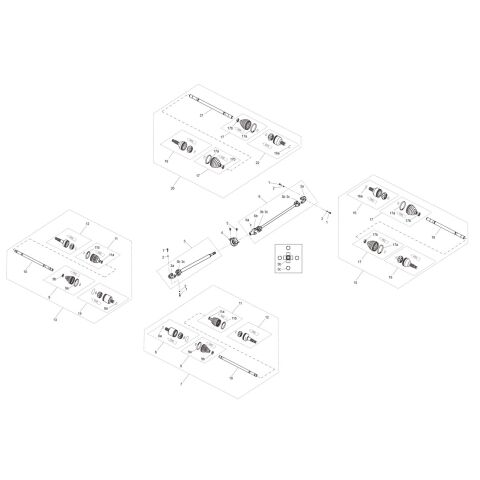

Drive shaft assembly

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_266_UTV1000
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 BOLT M8×35 (Ref. č 1) A03F11001101 BOLT M8×35  4 € 2,40 € 3
SKLADOM
11a U01P11004001 SMALL CLAMPING BAND  1 € 2,48 € 3
NASKLADŇUJEME
11b U01P11002001 BIG CLAMPING BAND  1 € 2,48 € 3
NASKLADŇUJEME
12 OUTSIDE BALL CAGE ASSY (Ref. č 12) U01P11020001 OUTSIDE BALL CAGE ASSY  1 € 56,45 € 69
SKLADOM
13 U01_CONSTANT VELOCITY DRIVE SHAFT FR (Ref. č 13) U01P12000001 U01_CONSTANT VELOCITY DRIVE SHAFT FR  1 € 147,77 € 182
NA DOPYT
14 U01P12030001 FR INNER BALL CAGE ASSY  1 € 56,45 € 69
NA DOPYT
15 U09_CONSTANT VELOCITY DRIVE SHAFT RL (Ref. č 15) U09P14000001 U09_CONSTANT VELOCITY DRIVE SHAFT RL  1 € 167,11 € 206
SKLADOM
16 U09P14020001 RL INNER BALL CAGE ASSY  1 € 19,34 € 24
NA DOPYT
16a U09P13006001 CIRCLIP  1 € 2,48 € 3
NA DOPYT
17 MAINTENANCE KIT FOR REAR SHAFT ASSY (Ref. č 17) U09P13030001 MAINTENANCE KIT FOR REAR SHAFT ASSY  2 € 19,34 € 24
SKLADOM
17a U09P13002001 BIG CLAMPING BAND  2 € 2,48 € 3
NA DOPYT
17b U09P13004001 SMALL CLAMPING BAND  2 € 2,48 € 3
NA DOPYT
18 U09P14005001 RL SHAFT  1 € 35,54 € 44
NA DOPYT
19 U09P13010001 OUTSIDE BALL CAGE ASSY  1 € 60,50 € 74
NA DOPYT
20 U09_CONSTANT VELOCITY DRIVE SHAFT RR (Ref. č 20) U09P13000001 U09_CONSTANT VELOCITY DRIVE SHAFT RR  1 € 167,93 € 207
SKLADOM
21 U09P13005001 RR SHAFT  1 € 35,54 € 44
NA DOPYT
11 MAINTENANCE KIT FOR OUTSIDE BALL CAGE ASSY (Ref. č 11) U01P11050001 MAINTENANCE KIT FOR OUTSIDE BALL CAGE ASSY  1 € 14,79 € 18
SKLADOM
10 U01P11005001 SHAFT  1 € 32,31 € 40
NA DOPYT
9b U01P11006001 SMALL CLAMPING BAND  1 € 2,48 € 3
NASKLADŇUJEME
2 WASHER 8 (Ref. č 2) GB0000093004 WASHER 8  4 € 2,18 € 3
SKLADOM

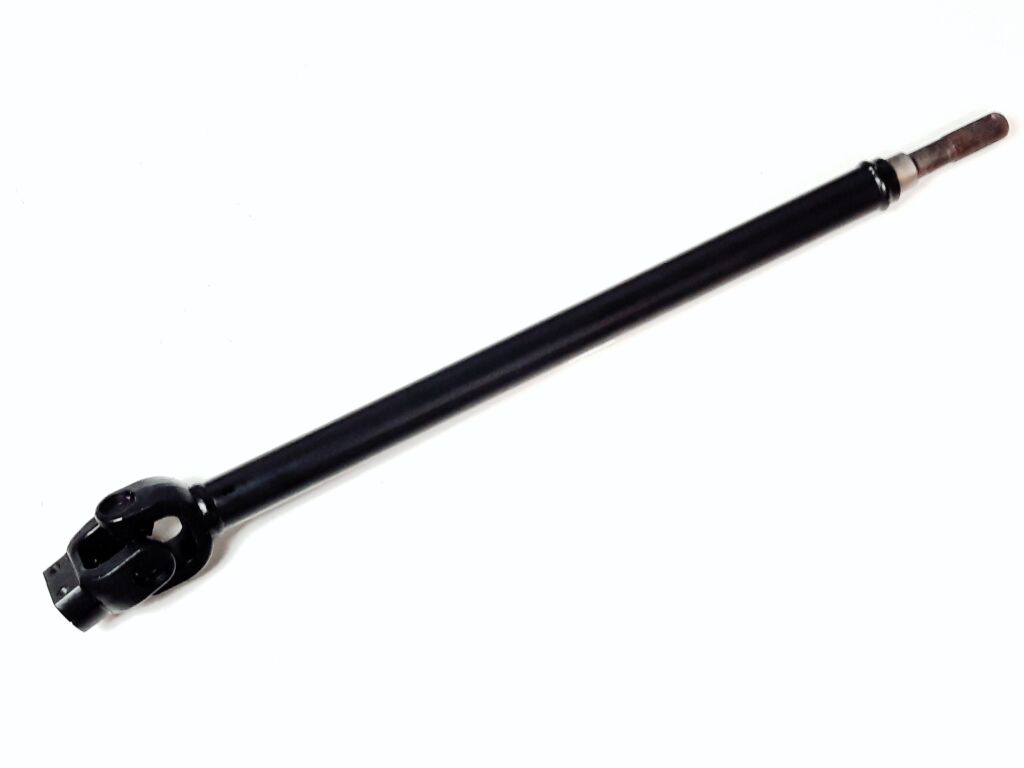

3 U09_FRONT TRANSMISSION SHAFT FRONT SECTION (Ref. č 3) U09P21100001 U09_FRONT TRANSMISSION SHAFT FRONT SECTION  1 € 141,82 € 174
SKLADOM
3a U01P21101001 TRANSMISSION SHAFT MOUNTING SPLINE FORK  2 € 30,83 € 38
NA DOPYT
3b UNIVERRSAL CROSS SHAFT ASSY (Ref. č 3b) U01P22010001 UNIVERRSAL CROSS SHAFT ASSY  3 € 23,80 € 29
SKLADOM
3c CIRCLIP 25 (Ref. č 3c) GBT000893007 CIRCLIP 25  12 € 2,48 € 3
SKLADOM
4 INTERMEDIATE SUPPORT SEAT (Ref. č 4) U01P21400001 INTERMEDIATE SUPPORT SEAT  1 € 35,04 € 43
SKLADOM ZA 10 dní
5 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 5) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  2 € 2,18 € 3
SKLADOM
6 U09 REAR SECTION FRONT TRANSMISSION SHAFT (Ref. č 6) U09P21300001 U09 REAR SECTION FRONT TRANSMISSION SHAFT  1 € 115,21 € 142
SKLADOM
6a Straight pressure oil cup (Ref. č 6a) GBT001152001 Straight pressure oil cup  1 € 5,04 € 6
SKLADOM
6b U09P21301001 TRANSMISSION SHAFT SLIDING SPLINE FORK  1 € 35,62 € 44
NA DOPYT
7 U01_CONSTANT VELOCITY DRIVE SHAFT FL (Ref. č 7) U01P11000001 U01_CONSTANT VELOCITY DRIVE SHAFT FL  1 € 148,18 € 182
NA DOPYT
8 U01P11030001 FL INNER BALL CAGE ASSY  1 € 57,27 € 70
NA CESTE
8a CIRCLIP (Ref. č 8a) U01P11011001 CIRCLIP  1 € 2,48 € 3
SKLADOM
9 MAINTENANCE KIT FOR INNER BALL CAGE ASSY (Ref. č 9) U01P11040001 MAINTENANCE KIT FOR INNER BALL CAGE ASSY  1 € 20,17 € 25
SKLADOM
9a U01P11008001 BIG CLAMPING BAND  1 € 2,48 € 3
NASKLADŇUJEME
22 U09P13020001 RR INNER BALL CAGE ASSY  1 € 61,32 € 75
NA DOPYT
Kód produktu SEGWAY_2_266_UTV1000
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT10
