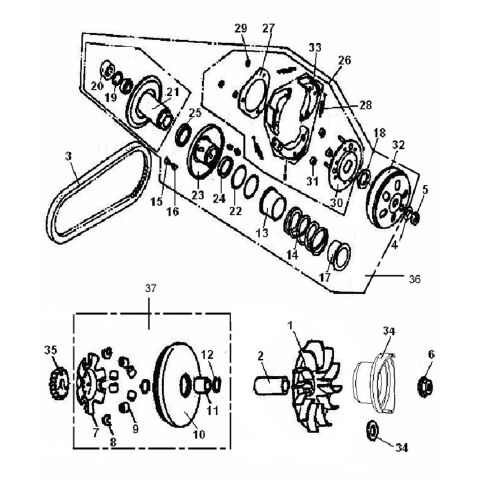

DRIVE PULLEY

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_1_128_ATV200-D_T3b
MODEL:
200 T3b 200 T3b
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 FACE DRIVE(200CC) (Ref. č 1) 29526 FACE DRIVE(200CC)  1 € 11,32 € 13,70
NA CESTE
20 28031 BEARIING NEEDLE 20X29X18  1 € 17,19 € 20,80
NA DOPYT
21 29698 FACE COMP DRIVEN 200cc  1 € 41,98 € 50,80
NA DOPYT
22 28034 O-RING PINION CAP  2 € 2,40 € 2,90
NA DOPYT
23 28035 FACE COMP MOVABLE DRIVEN ATV200-D T3b  1 € 8,51 € 10,30
NA DOPYT
24 28033 SEAL DRIVEN FACE  2 € 5,12 € 6,20
NA DOPYT
25 28036 BEARING BALL RADIAL 28X15X7  1 € 17,19 € 20,80
NA DOPYT
27 28047 PLATE CLUTCH SIDE  1
NA DOPYT
Detail
30 28044 PLATE CLUTCH DRIVE  1
NA DOPYT
Detail
31 28045 SPRING CLUTCH DAMPER  3
NA DOPYT
Detail
7 28029 PLATE RAMP  1
NA DOPYT
Detail
9 R/B 28025 ROLLER SET WEIGHT(WEIGHT 10g) ATV200-D T3b (Ref. č 9) 28025A R/B 28025 ROLLER SET WEIGHT(WEIGHT 10g) ATV200-D T3b  6 € 2,40 € 2,90
SKLADOM
10 28026 FACE COMP MOVABLE DRIVE  1
NA DOPYT
Detail
11 28027 COLLAR DRIVE FACE  1
NA DOPYT
Detail
12 28028 CLIP 28MM  2
NA DOPYT
Detail
13 28037 COLLAR SEAL  1 € 6,86 € 8,30
NA DOPYT
14 28038 SPRING DRIVEN FACE  1 € 6,86 € 8,30
NA DOPYT
19 29518 CIR CLIP IN 28MM ATV200-D T3b  1 € 2,40 € 2,90
NA DOPYT
18 50416 NUT SPECIAL 28MM  1
NA DOPYT
Detail
17 28041 COLLAR SPRING  1 € 6,86 € 8,30
NA DOPYT
2 BOSS DRIVE FACE (Ref. č 2) 28051 BOSS DRIVE FACE  1 € 10,83 € 13,10
SKLADOM
3 BELT DRIVE (LINHAI 200) (Ref. č 3) 29529 BELT DRIVE (LINHAI 200)  1 € 31,49 € 38,10
SKLADOM
4 Washer 12 (Ref. č 4) 28053 Washer 12  1 € 9,34 € 11,30
SKLADOM
5 NUT FLANGE 12X1.25MM (Ref. č 5) 28054 NUT FLANGE 12X1.25MM  1 € 2,40 € 2,90
SKLADOM
6 Nut M12x1.25 (Ref. č 6) 10188 Nut M12x1.25  1 € 2,40 € 2,90
SKLADOM
8 PIECE SLIDE (Ref. č 8) 28030 PIECE SLIDE  3 € 2,40 € 2,90
SKLADOM
26 PLATE ASSY DRIVEN (unavailable) (Ref. č 26) 28043 PLATE ASSY DRIVEN (unavailable)  1 € 80,66 € 97,60
NA DOPYT
28 SPRING CLUTCH (Ref. č 28) 28048 SPRING CLUTCH  3 € 2,40 € 2,90
SKLADOM ZA 13 dní
29 CIR CLIP 6MM (Ref. č 29) 10130 CIR CLIP 6MM  3 € 2,40 € 2,90
SKLADOM
32 OUTER CLUTCH(200CC) (Ref. č 32) 29682 OUTER CLUTCH(200CC)  1 € 51,65 € 62,50
SKLADOM
33 WEIGHT SET CLUTCH (Ref. č 33) 29683 WEIGHT SET CLUTCH  3 € 34,46 € 41,70
SKLADOM
34 STARTER PULLEY (200cc) (Ref. č 34) 29593 STARTER PULLEY (200cc)  1 € 3,47 € 4,20
SKLADOM
35 GEAR KICK DRIVEN (Ref. č 35) 2531054 GEAR KICK DRIVEN  1 € 29,59 € 35,80
SKLADOM
36 DRIVEN ASSY(200) (Ref. č 36) 29685 DRIVEN ASSY(200)  1 € 130,74 € 158,20
SKLADOM
37 DRIVER ASSY(200) (Ref. č 37) 29687 DRIVER ASSY(200)  1 € 101,65 € 123
SKLADOM
16 28040 ROLLE GUIDE  3 € 2,40 € 2,90
NA DOPYT
15 28039 PIN ROLLER GUIDE  3 € 2,40 € 2,90
NA DOPYT
