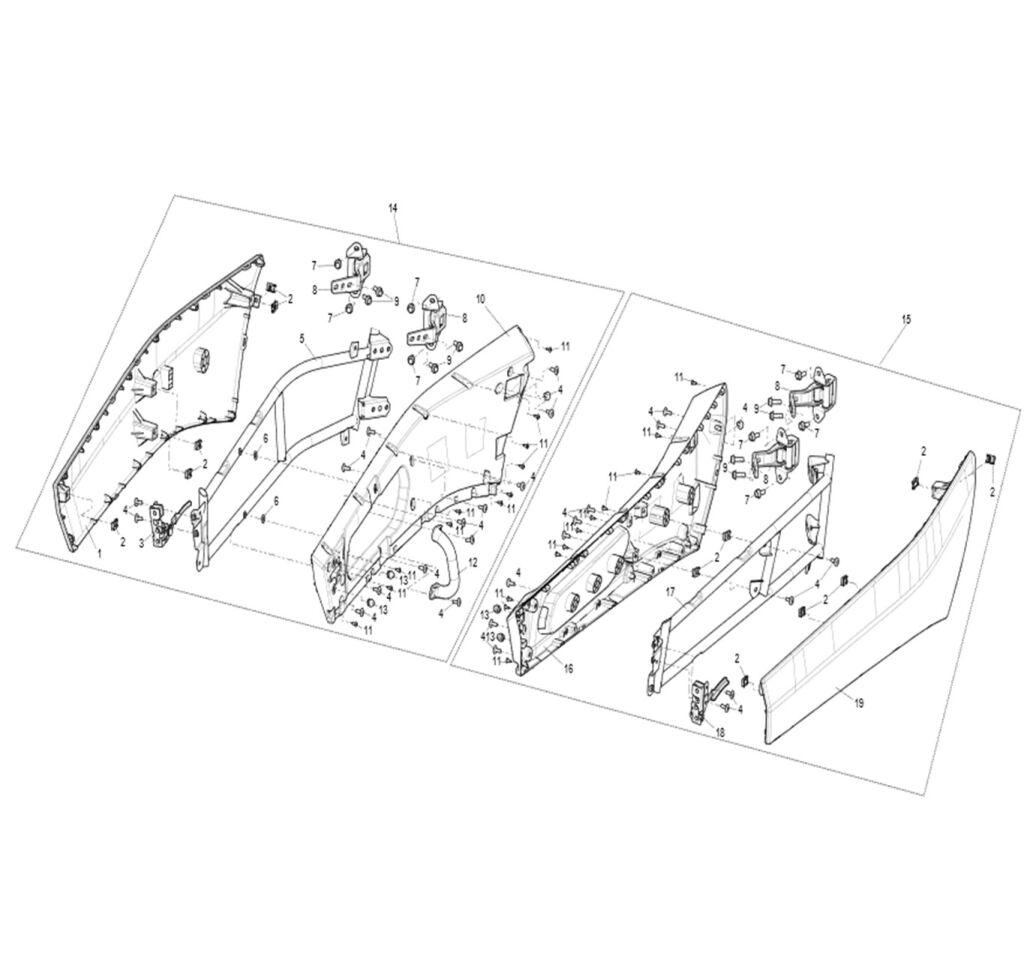

DOOR COMBINATION

SEGWAY
Výrobca: SEGWAY
Kód produktu: SEGWAY_4_431_UTV1000F-S3
MODEL:
Villain SX10 Villain SX10
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1_ S01H15200002 RIGHT DOOR PANEL (WHITE)  1 € 38,92 € 47,09
NA DOPYT
12 S01C01531001 RIGHT DOOR ARMREST  1 € 14,14 € 17,11
NA DOPYT
13 S01H20700001 DOOR CUSHION RUBBER  4 € 2,44 € 2,95
NA DOPYT
14 S05C00000121 RIGHT DOOR COMBINATION (ZVOLTE BARVU)  1 € 435,25 € 526,65
NA DOPYT
15 S05C00000111 R/B S05C00000113 LEFT DOOR COMPLETE BLACK  1 € 169,75 € 205,40
NA DOPYT
16 S01H14900001 R/B S05-H149000-0B0-00 LEFT DOOR LINING  1 € 23,64 € 28,60
NA DOPYT
17 S01C01400002 LEFT DOOR BRACKET(BLACK)  1 € 50,41 € 61
SKLADOM
18 S01C01800001 LEFT DOOR LOCK ASSEMBLY  1 € 19,46 € 23,55
NA DOPYT
19 LEFT DOOR PANEL (WHITE) (Ref. č 19) S01H15100002 LEFT DOOR PANEL (WHITE)  1 € 38,92 € 47,09
SKLADOM
19 S01H15100003 LEFT DOOR PANEL (BLACK)  1 € 38,92 € 47,09
NA DOPYT
11 QCT000602009 CROSS RECESSED ROUND HEAD TAPPING SCREWS ST4.2×13  22 € 2,44 € 2,95
NA DOPYT
10 S01H15000001 R/B S05-H150000-0B0-00 RIGHT DOOR LINING  1 € 23,64 € 28,60
NA DOPYT
9 Hexagon flange bolt M8×25 (Ref. č 9) GBT005789016 Hexagon flange bolt M8×25  8 € 2,44 € 2,95
SKLADOM
1 RIGHT DOOR PANEL (BLACK) (Ref. č 1) S01H15200003 RIGHT DOOR PANEL (BLACK)  1 € 38,96 € 47,14
SKLADOM
1 S01H15200004 RIGHT DOOR PANEL (BLUE)  1 € 75,33 € 91,15
NA DOPYT
2 M6 nut clip (Ref. č 2) T04000002001 M6 nut clip  12 € 2,44 € 2,95
SKLADOM
3 S01C01900001 RIGHT DOOR LOCK ASSEMBLY  1 € 19,46 € 23,55
NA DOPYT
4 Inner hexagon screws M10×1.25×25 (Ref. č 4) T03000007002 Inner hexagon screws M10×1.25×25  28 € 2,44 € 2,95
SKLADOM
5 S01C01500002 RIGHT DOOR BRACKET(BLACK)  1 € 52,98 € 64,10
NA DOPYT
6 GBT000971001 GASKET 8  2 € 2,44 € 2,95
NA DOPYT
7 BOLT M8×20 (Ref. č 7) GBT005789015 BOLT M8×20  8 € 2,44 € 2,95
SKLADOM
8 DOOR HINGE ASSEMBLY (Ref. č 8) S01C01600001 DOOR HINGE ASSEMBLY  4 € 47,52 € 57,50
SKLADOM
19 S01H15100004 LEFT DOOR PANEL (BLUE)  1 € 79,76 € 96,51
NA DOPYT
