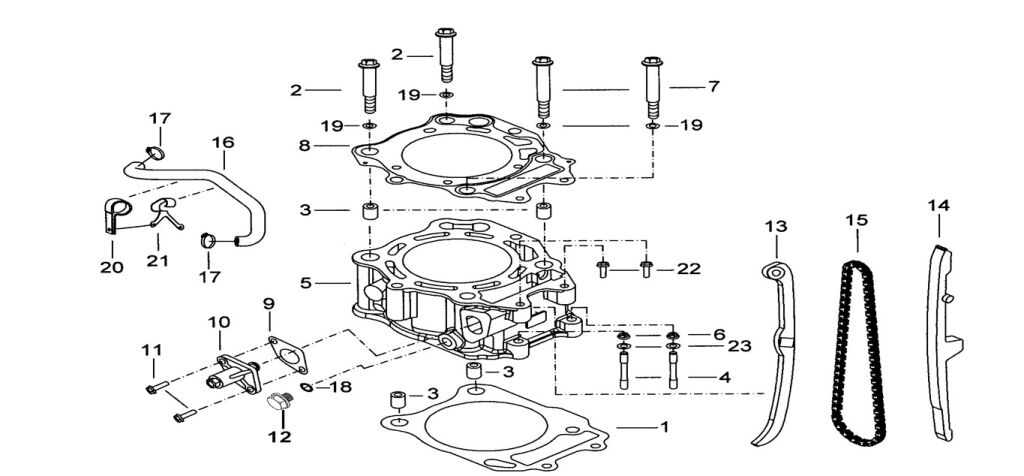

CYLINDER

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 R/B 925338 GASKET, CYLINDER (Ref. č 01) D9900008 R/B 925338 GASKET, CYLINDER

FOR WITHOUT OIL RADIATOR

1 € 8,43 € 10,20
SKLADOM
12 BOLT M10X1.0X9 (Ref. č 12) S78901 BOLT M10X1.0X9  1 € 3,80 € 4,60
SKLADOM
13 R/B 927421 CAM CHAIN TENSIONER (Ref. č 13) 924038 R/B 927421 CAM CHAIN TENSIONER  1 € 25,54 € 30,90
NA DOPYT
14 R/B 924857 CAM CHAIN GUIDE (Ref. č 14) D9900013 R/B 924857 CAM CHAIN GUIDE  1 € 31,07 € 37,60
NA DOPYT
15 TIMING CHAIN (Ref. č 15) D9900014 TIMING CHAIN  1 € 101,82 € 123,20
SKLADOM
16 WATER PIPE, WATER PUMP (Ref. č 16) 924666 WATER PIPE, WATER PUMP  1 € 31,07 € 37,60
NA DOPYT
17 CLIP (Ref. č 17) R66701 CLIP  2 € 3,97 € 4,80
SKLADOM
18 WASHER  (Ref. č 18) W99013 WASHER   1 € 2,40 € 2,90
SKLADOM
19 WASHER (Ref. č 19) W99010 WASHER  4 € 2,40 € 2,90
SKLADOM
20 924833 CLIP "P"  1 € 8,51 € 10,30
NA DOPYT
21 925148 CLIP "Y"  1 € 23,22 € 28,10
NA DOPYT
22 BOLT, FLANGE (Ref. č 22) S20617 BOLT, FLANGE  2 € 2,15 € 2,60
SKLADOM
11 BOLT, FLANGE M6x16 (Ref. č 11) S24603 BOLT, FLANGE M6x16  2 € 2,40 € 2,90
SKLADOM
10 ADJUSTER ASSY., TENSIONER (Ref. č 10) 924014 ADJUSTER ASSY., TENSIONER  1 € 19,17 € 23,20
SKLADOM
01A GASKET, CYLINDER (Ref. č 01A) 925338 GASKET, CYLINDER

FOR WITH OIL RADIATOR

1 € 32,40 € 39,20
SKLADOM
02 STUD (Ref. č 02) D9900009 STUD  2 € 17,52 € 21,20
SKLADOM
03 PIN, DOWEL (Ref. č 03) P40301 PIN, DOWEL  4 € 2,40 € 2,90
SKLADOM
04 STUD (Ref. č 04) S95607 STUD  2 € 2,40 € 2,90
SKLADOM
05 D9900010 R/B 925277-S CYLINDER

←010379

1 € 220,41 € 266,70
NA DOPYT
05A CYLINDER(ALLOY) (Ref. č 05A) 925277 CYLINDER(ALLOY)

010380→

1 € 229,01 € 277,10
SKLADOM
06 NUT, HEX HEAD M6 (Ref. č 06) GA509NT01 NUT, HEX HEAD M6

←010379

2 € 2,40 € 2,90
SKLADOM
06A NUT,FLANGE M6 (Ref. č 06A) GA504NT01 NUT,FLANGE M6

010380→

2 € 2,40 € 2,90
SKLADOM
07 STUD (Ref. č 07) D9900011 STUD  2 € 17,44 € 21,10
SKLADOM
08 D9900012 R/B 910178 GASKET, CYLINDER HEAD  1 € 75,79 € 91,70
NA DOPYT
09 GASKET (Ref. č 09) 924013 GASKET  1 € 2,40 € 2,90
SKLADOM
23 WASHER, SPRING M6 (Ref. č 23) GA504WS04 WASHER, SPRING M6

←010379

2 € 2,40 € 2,90
SKLADOM
