Cylinder head cover.

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_122_AT10_A3
MODEL:

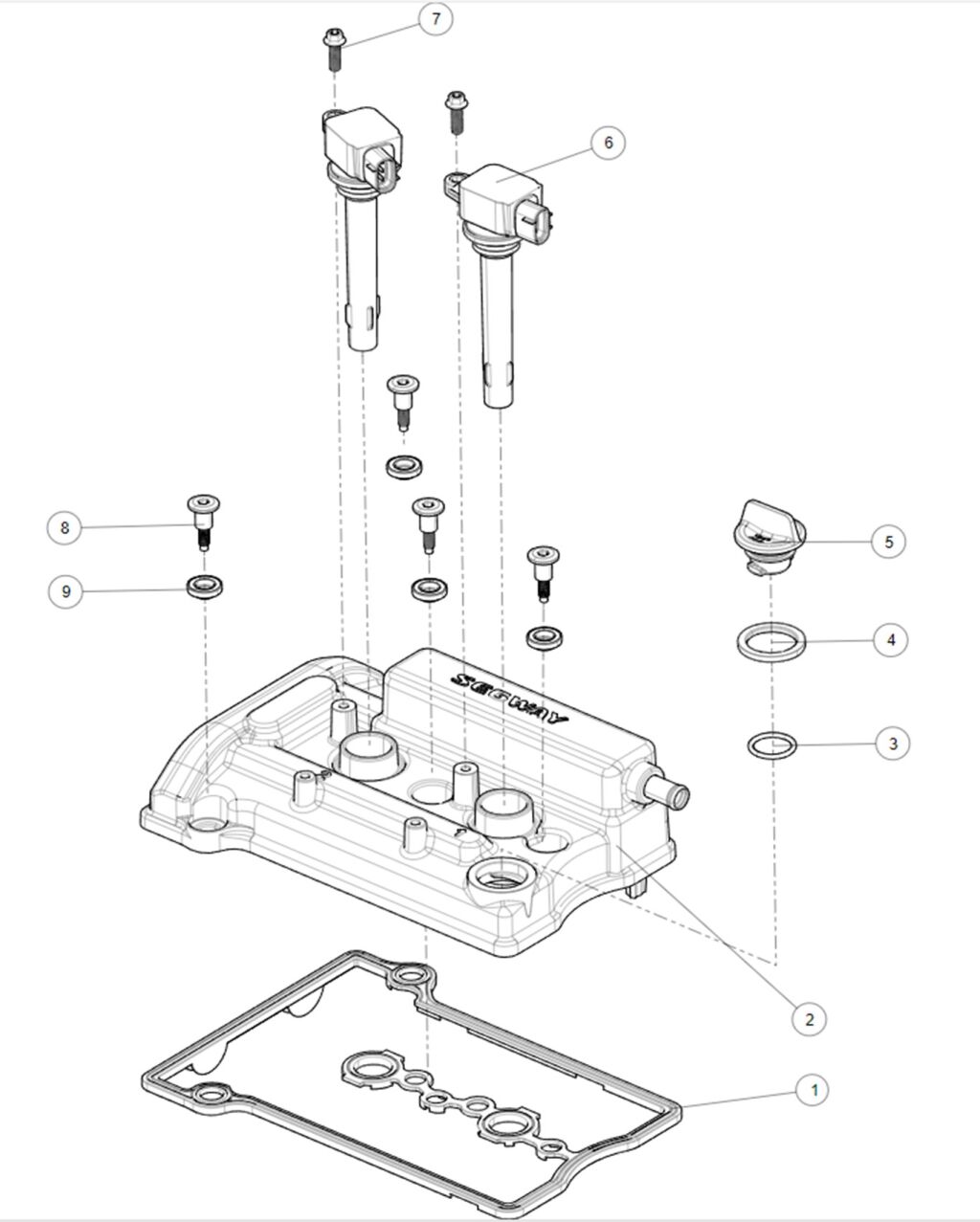

Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 CYLINDER HEAD COVER SEAL (Ref. č 1) F02A10002001 CYLINDER HEAD COVER SEAL  1 € 21,24 € 26
SKLADOM

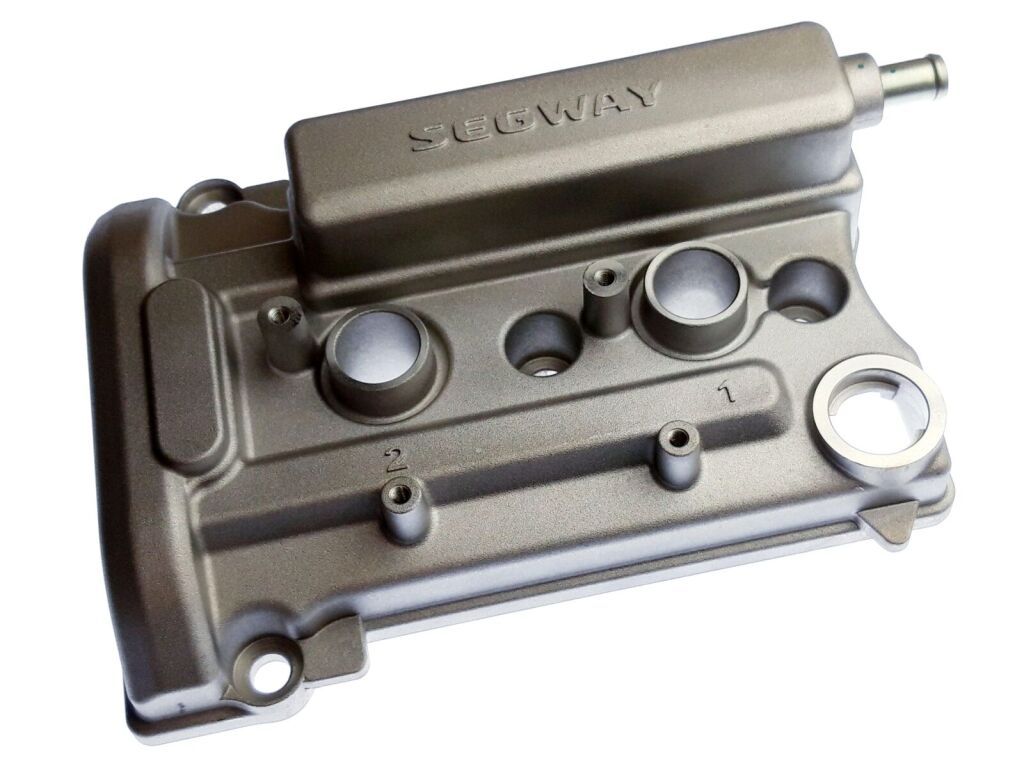

2 CYLINDER HEAD COVER SUB ASSEMBLY (Ref. č 2) E03-A100001-000-00 CYLINDER HEAD COVER SUB ASSEMBLY  1 € 66,36 € 82
SKLADOM
3 O-Ring 22×3 (Ref. č 3) F01A10009001 O-Ring 22×3  1 € 2,48 € 3
SKLADOM
4 Seal,Oil fill cap (Ref. č 4) F01A10005001 Seal,Oil fill cap  1 € 4,13 € 5
SKLADOM
5 OIL FILL CAP (Ref. č 5) F01A10004001 OIL FILL CAP  1 € 5,95 € 7
SKLADOM
6 IGNITION COIL (Ref. č 6) F01K00600001 IGNITION COIL  1 € 62,23 € 77
NA DOPYT
7 BOLT M6×20 (Ref. č 7) F01000004001 BOLT M6×20  2 € 2,48 € 3
SKLADOM
8 SHOULDER BOLT (Ref. č 8) F01A10008001 SHOULDER BOLT  4 € 2,48 € 3
SKLADOM
9 Bolt rubber gasket 10 (Ref. č 9) F01A10003001 Bolt rubber gasket 10  4 € 2,48 € 3
SKLADOM
Kód produktu SEGWAY_1_122_AT10_A3
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: AT10
MODEL: AT10L
