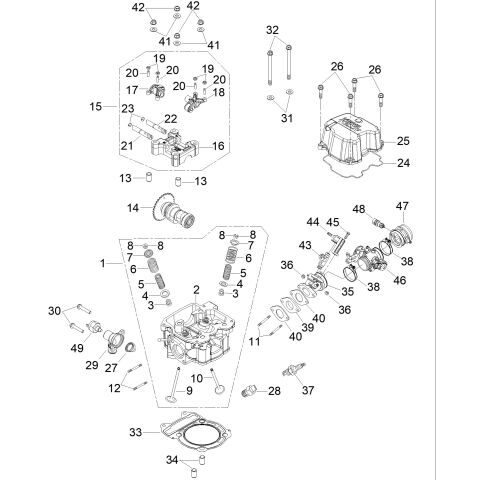

CYLINDER HEAD COVER, CYLINDER HEAD

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  ACCESS_1_102_TMHWK_400
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 12200-E17-000 R/B 12200-E17-100 Cylinder Head, Ass'y 400cc  1 € 293,39 € 361
SKLADOM
31 Washer, Plain (Copper) (Ref. č 31) P93102-65012-12 Washer, Plain (Copper)  2 € 2,48 € 3
NA DOPYT
30 Hex.Washer Face Bolt (Ref. č 30) P91700-06016-08G Hex.Washer Face Bolt  2 € 2,48 € 3
SKLADOM
29 R/B 15305-E10-001 Hose, Connection (Ref. č 29) 15305-E10-000 R/B 15305-E10-001 Hose, Connection  1 € 6,61 € 8
NA DOPYT
28 Sensor,Temperature (Ref. č 28) 15240-E10-010 Sensor,Temperature  1 € 52,07 € 64
SKLADOM
27 Thermostat Ass'y (Ref. č 27) 15300-E10-000 Thermostat Ass'y  1 € 38,02 € 47
SKLADOM ZA 1 dní
26 R/B 91700-06025-08G-2 Hex.Washer Face Bolt (Ref. č 26) P91700-06025-08G R/B 91700-06025-08G-2 Hex.Washer Face Bolt  4 € 2,48 € 3
NA DOPYT
25 12210-E17-000 Head Cover , Cylinder  1
NA DOPYT
Detail
24 Oil Ring, Head Cover (Ref. č 24) 12310-E17-000 Oil Ring, Head Cover  1 € 10,74 € 13
SKLADOM
32 Hex. Bolt, Flange M6x127 (Ref. č 32) 91700-06127-08Z Hex. Bolt, Flange M6x127  2 € 2,48 € 3
NA DOPYT
33 R/B: 12300-E17-001 Gasket, Cylinder Head 400cc (Ref. č 33) 12300-E17-000 R/B: 12300-E17-001 Gasket, Cylinder Head 400cc  1 € 38,84 € 48
NA DOPYT
41 Washer, Plate (Ref. č 41) 93100-08516-15C-1 Washer, Plate  4 € 2,48 € 3
NA DOPYT
40 Insulator Gasket 400cc (Ref. č 40) 14711-E17-000 Insulator Gasket 400cc  2 € 3,31 € 4
SKLADOM
39 spacer (Ref. č 39) 14712-E17-000 spacer  1 € 3,31 € 4
NA DOPYT

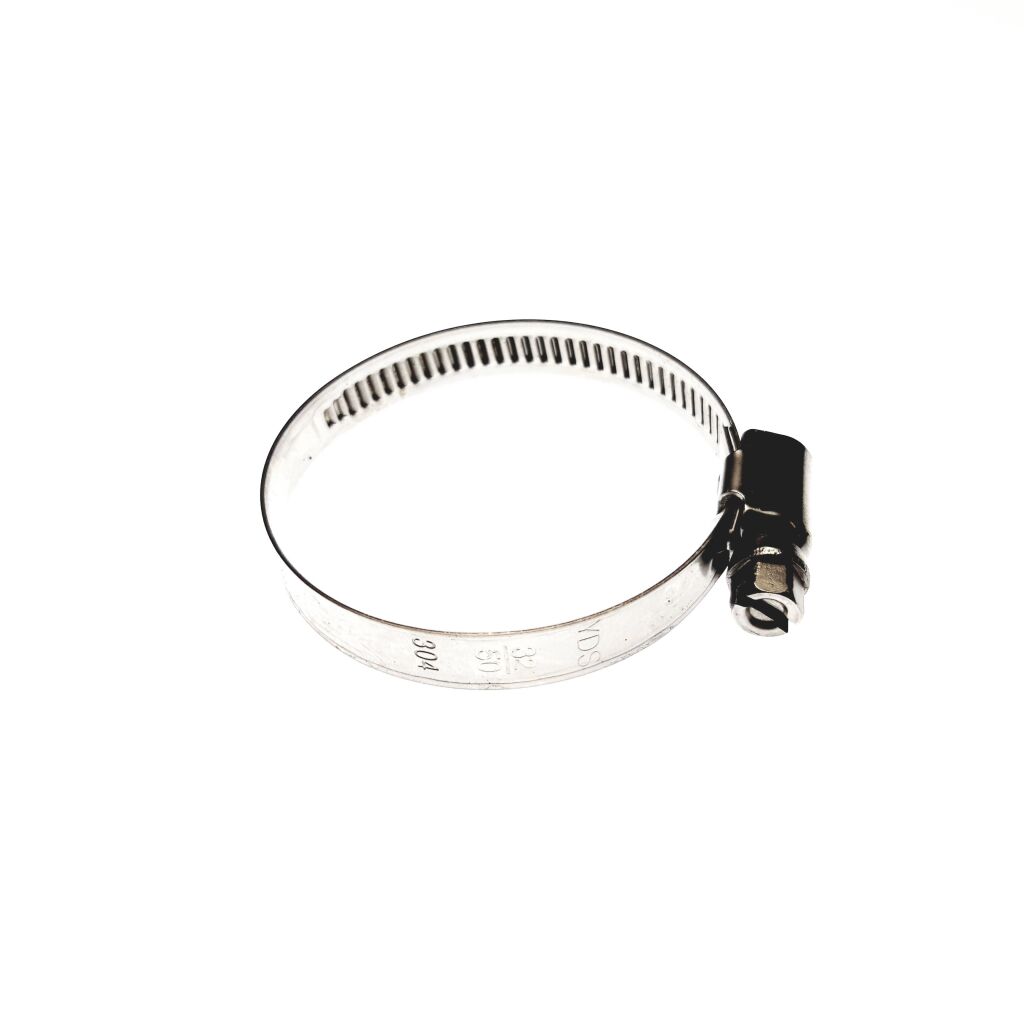

38 Clip (Ref. č 38) 97414-050090 Clip  1 € 3,31 € 4
SKLADOM
37 98069-CR8E-010 Plug, Spark  1
NA DOPYT
Detail
36 92120-06-10C-2 Hex. Acorn Washer Face  2 € 1,90 € 2
NA DOPYT
35 PIPE COMP, intake (Ref. č 35) 16410-E17-000 PIPE COMP, intake  1 € 62,81 € 77
SKLADOM
34 Pin, Dowel (Ref. č 34) 94001-100140 Pin, Dowel  2 € 2,48 € 3
SKLADOM
23 CLIP, Piston Pin (Ref. č 23) 13410-E03-100 CLIP, Piston Pin  2 € 2,48 € 3
SKLADOM
22 In Rocker Arm Shaft Comp (Ref. č 22) 25310-E17-000 In Rocker Arm Shaft Comp  1 € 10,74 € 13
SKLADOM
9 14720-E17-000 R/B 14720-E17-100 VALVE, intake  2 € 23,14 € 28
SKLADOM
8 Cotter, Valve (Ref. č 8) 14781-E10-000 Cotter, Valve  8 € 2,48 € 3
SKLADOM
7 Holder, Valve Spring (Ref. č 7) 14771-E10-000 Holder, Valve Spring  4 € 15,70 € 19
SKLADOM
6 14735-E17-000 R/B 14735-E17-100 Spring, Valve Outer  4 € 3,31 € 4
SKLADOM
5 14736-E17-000 R/B 14736-E17-100 Spring, Valve Inner  4 € 2,48 € 3
SKLADOM
4 Support, Valve Spring (Ref. č 4) 14776-E10-000 Support, Valve Spring  4 € 2,48 € 3
SKLADOM
3 Seal, Valve (Ref. č 3) 14730-E10-000 Seal, Valve  4 € 3,31 € 4
SKLADOM
2 12201-E17-000 R/B 12200-E17-100 CYLINDER HEAD  1 € 160,33 € 197
NA DOPYT
10 14721-E17-000 R/B 14721-E17-100 VALVE, exhaust  2 € 42,98 € 53
NA DOPYT
11 91000-06039G-1 Bolt,Stud  2
NA DOPYT
Detail
21 Ex rocke Arm Shaft Comp (Ref. č 21) 25315-E17-000 Ex rocke Arm Shaft Comp  1 € 3,31 € 4
SKLADOM
20 Adjust Screw (Ref. č 20) 25306-E10-200 Adjust Screw  4 € 2,48 € 3
SKLADOM
19 Adjust Screw (Ref. č 19) 25307-E10-200 Adjust Screw  4 € 2,48 € 3
SKLADOM
16 R/B 25104-E17-001 Cam Shaft Holder (Ref. č 16) 25105-E17-000 R/B 25104-E17-001 Cam Shaft Holder  1 € 38,84 € 48
SKLADOM
15 25104-E17-000 R/B 25104-E17-001 Cam Shaft Holder Ass'y 400cc  1 € 160,33 € 197
NA DOPYT
14 Cam shaft comp 400cc (Ref. č 14) 25100-E17-000 Cam shaft comp 400cc  1 € 184,30 € 227
SKLADOM
12 Bolt,Stud (Ref. č 12) P91000-08032G Bolt,Stud  2 € 2,48 € 3
SKLADOM
42 Hex. Acorn Nut, Flange (Ref. č 42) P92120-08-12C Hex. Acorn Nut, Flange  4 € 2,48 € 3
SKLADOM
Kód produktu ACCESS_1_102_TMHWK_400
typ rozkresu: ENGINE PARTS
ZNACKA: ACCESS
TYP: ACCESS Tomahawk
MODEL: TOMAHAWK 400
