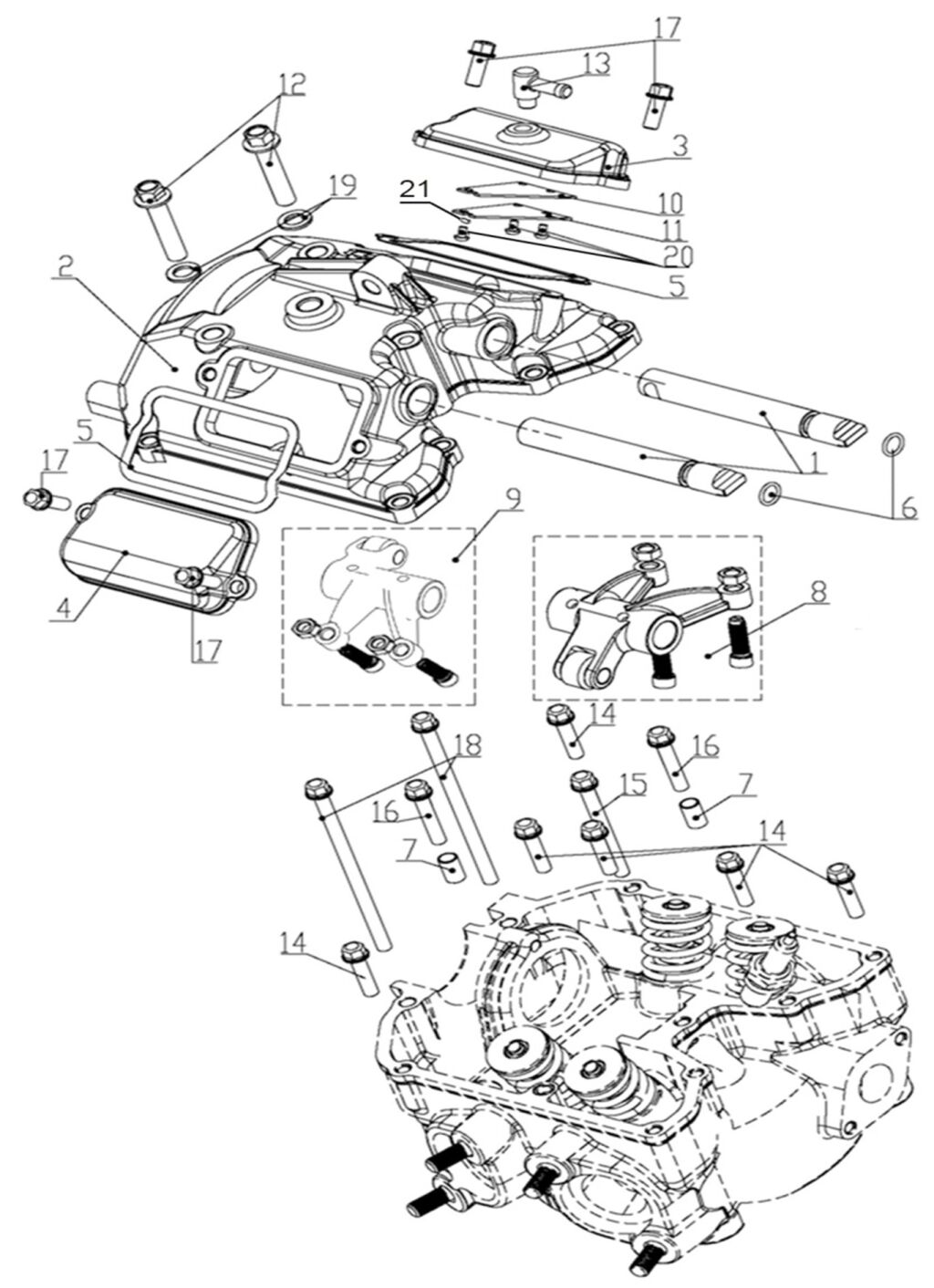

CYLINDER HEAD COVER ASSY

LINHAI
  • Výrobca  LINHAI
  • Kód produktu  LINHAI_1_131_M750L T3b
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

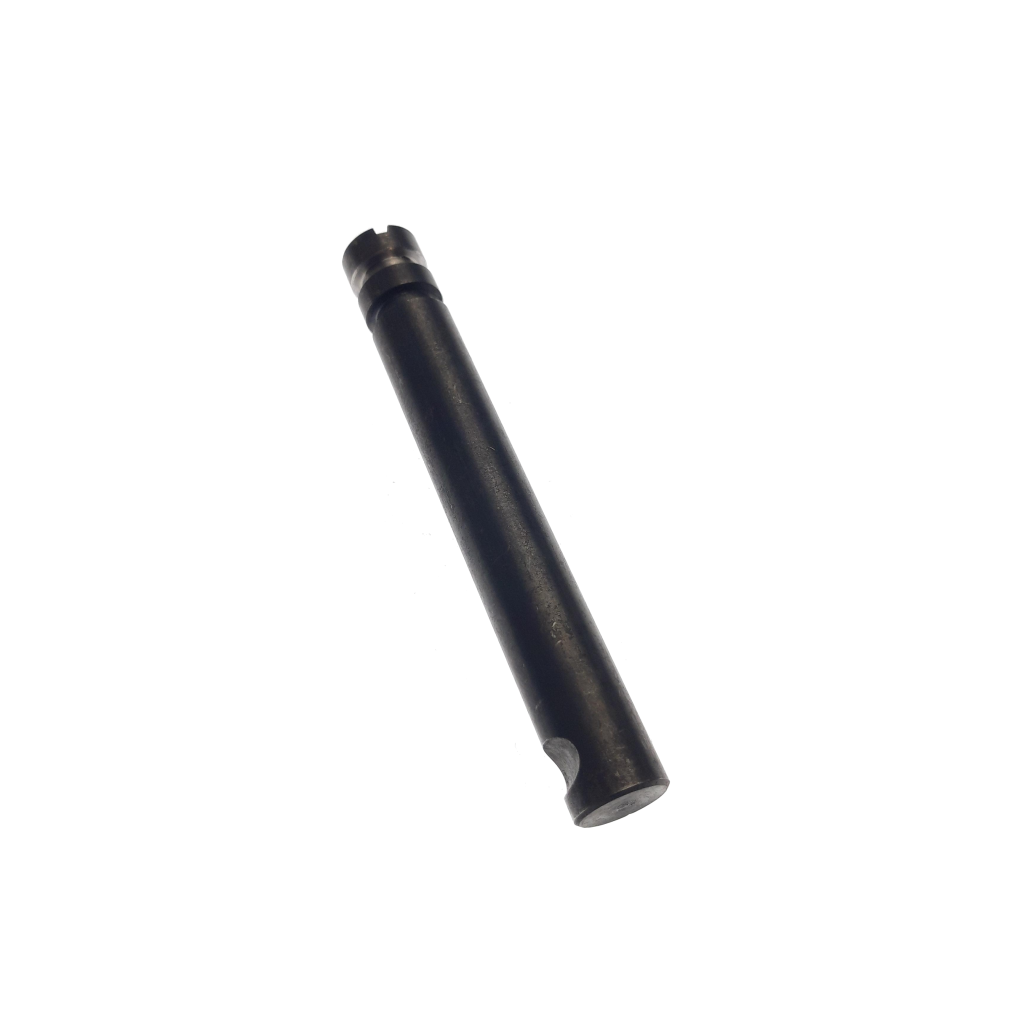

1 ROCKER SHAFT (Ref. č 1) 71683 ROCKER SHAFT  2 € 3,64 € 4
SKLADOM
13 71671 FITTIONGS ASSY  1 € 3,39 € 4
NA DOPYT

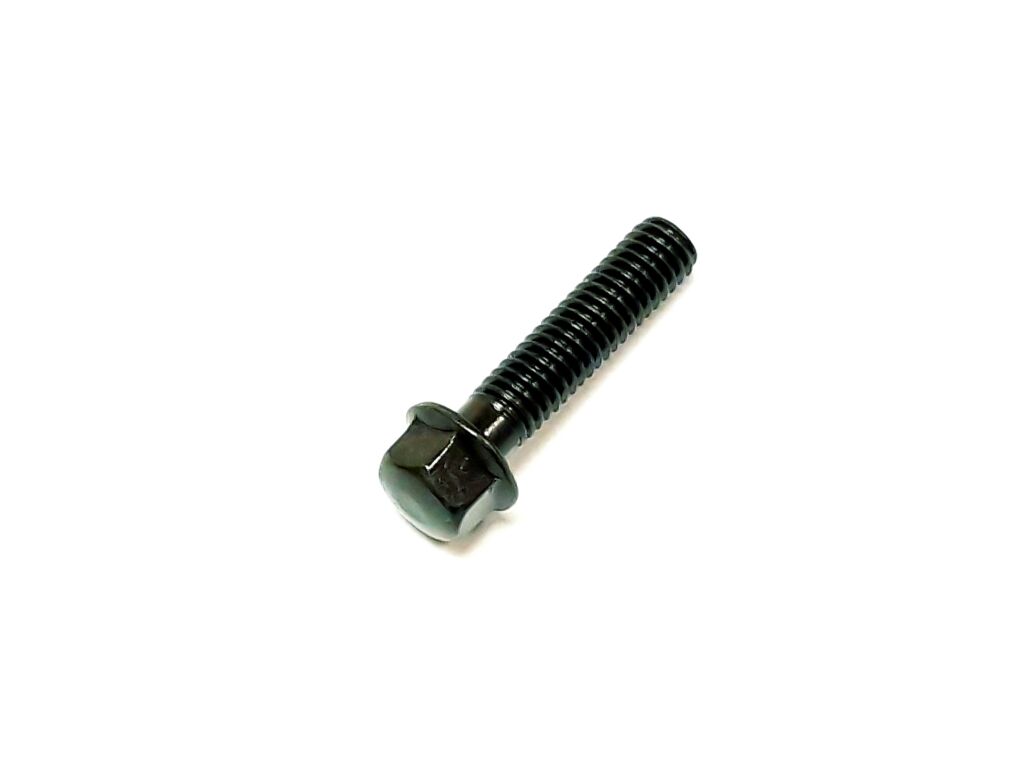

14 BOLT M6X25 (Ref. č 14) 10187W BOLT M6X25  6 € 8,76 € 11
SKLADOM
15 BOLT M6X55 (Ref. č 15) 10530 BOLT M6X55  1 € 2,40 € 3
SKLADOM
16 BOLT M6×32 (Ref. č 16) 10329 BOLT M6×32  2 € 8,68 € 11
SKLADOM
17 BOLT M6X16 (Ref. č 17) 10183W BOLT M6X16  4 € 8,76 € 11
SKLADOM
18 70219 BOLT M6X105  2 € 3,22 € 4
NA DOPYT
19 20818 WASHER  2 € 7,19 € 9
NA DOPYT
20 10752 SCREW M3×6  3 € 8,76 € 11
NA DOPYT
12 71687 BOLT,ROCKER SHAFT  2 € 3,55 € 4
NA DOPYT

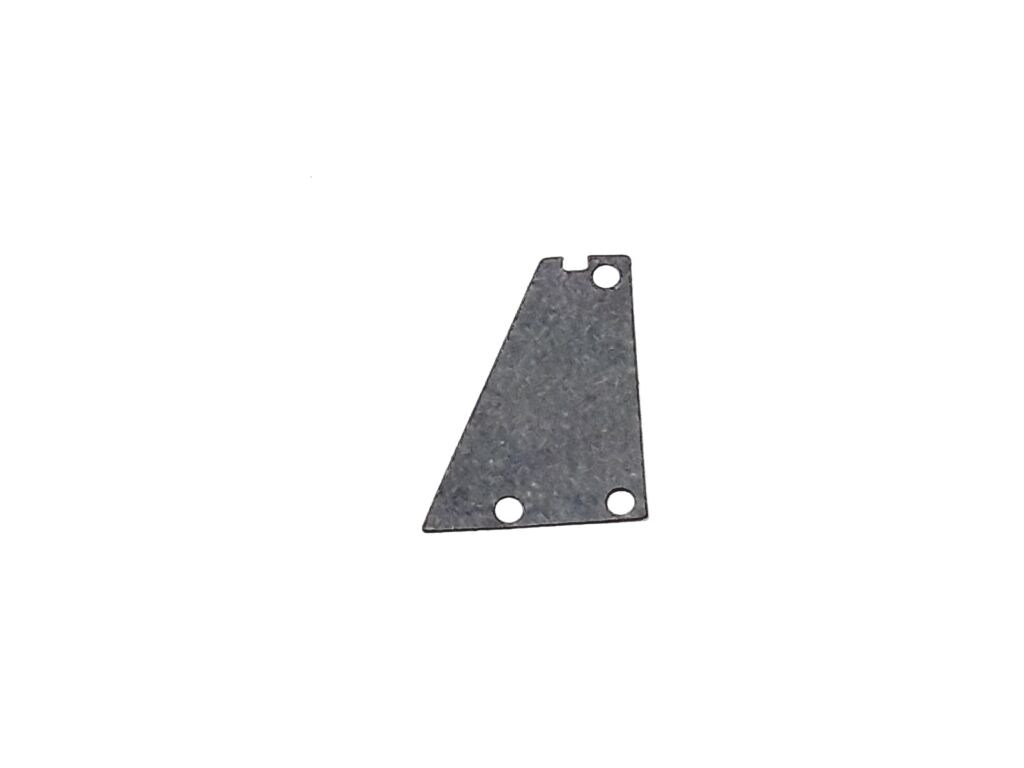

11 GASKET,VENTILATION CHANBER COVER (Ref. č 11) 71778 GASKET,VENTILATION CHANBER COVER  1 € 2,98 € 4
SKLADOM
10 VENTILATION CHANBER COVER (Ref. č 10) 71758 VENTILATION CHANBER COVER  1 € 2,40 € 3
SKLADOM

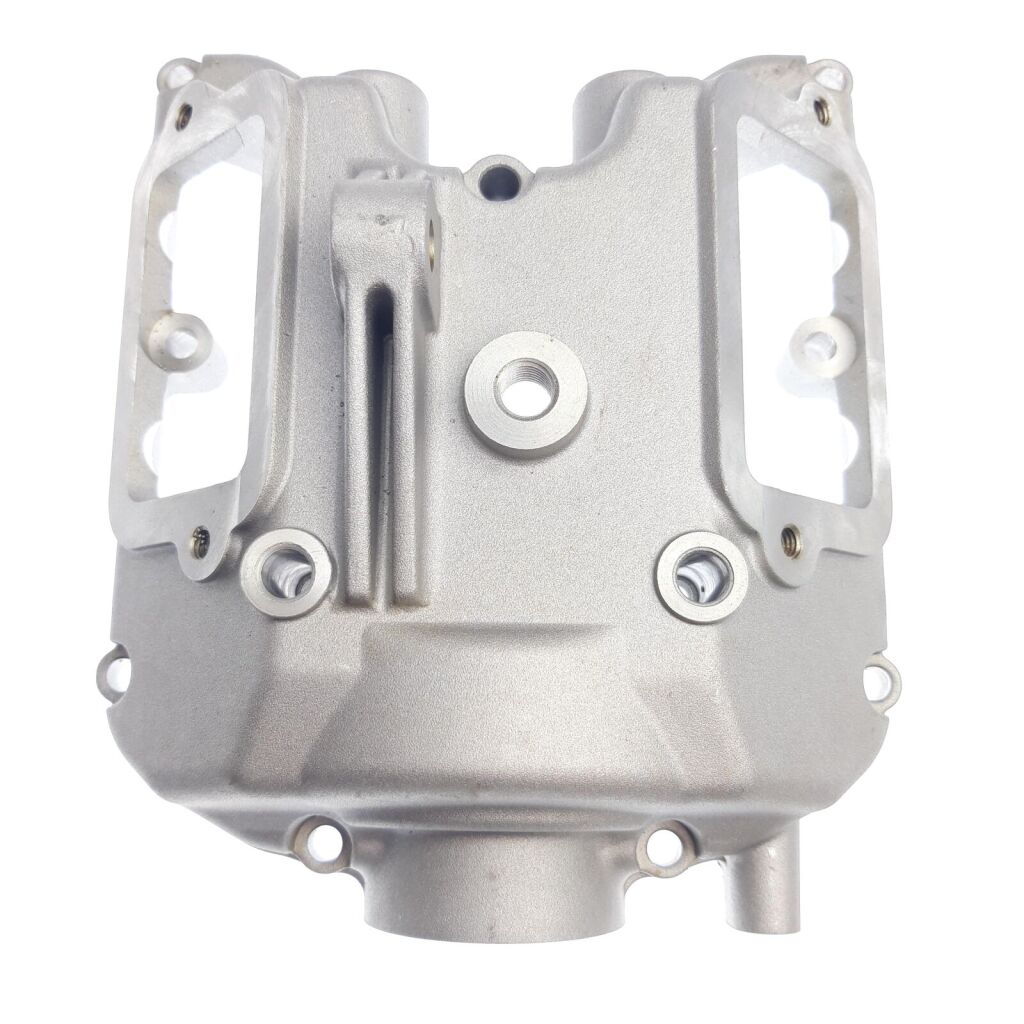

2 CYLINDER HEAD (Ref. č 2) 71690a CYLINDER HEAD  1 € 60,91 € 75
SKLADOM
3 VALVE COVER INATKE (Ref. č 3) 71692a VALVE COVER INATKE  1 € 27,77 € 34
SKLADOM

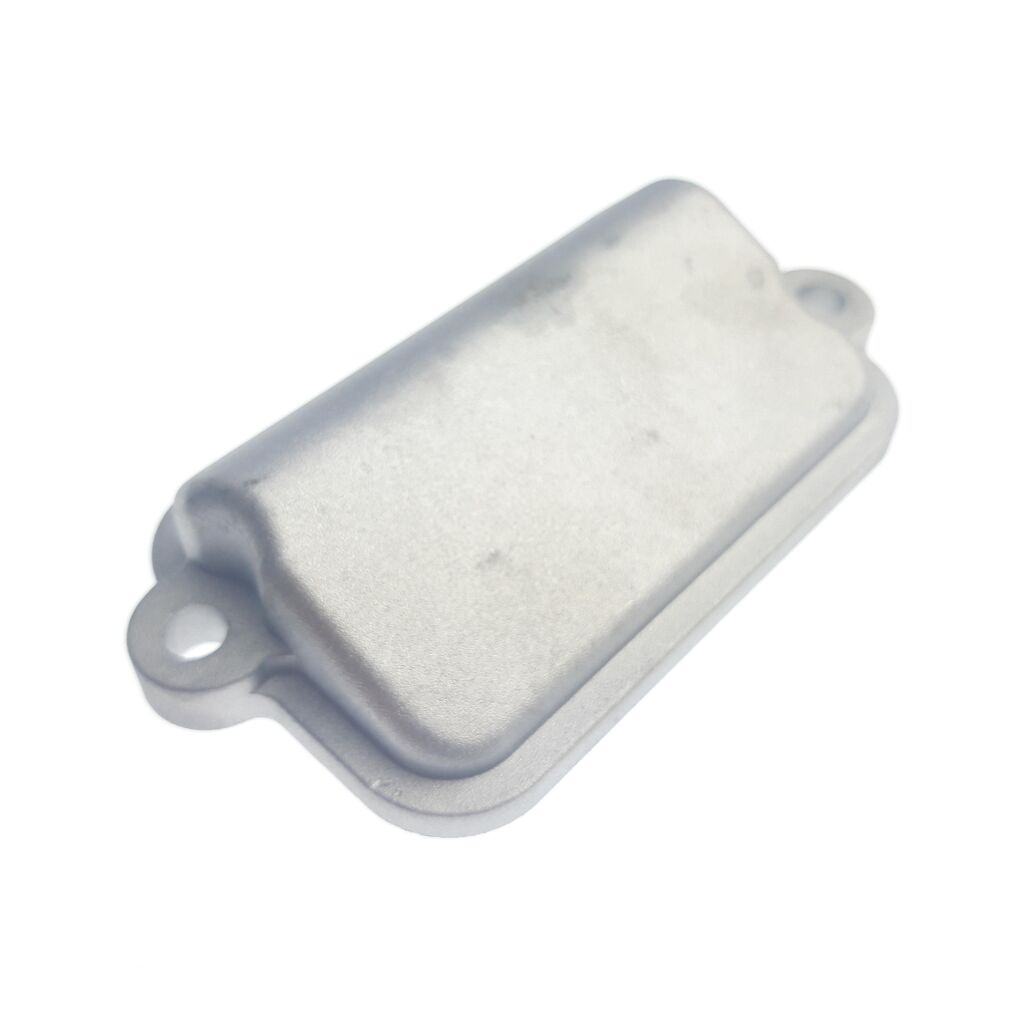

4 VALVE COVER (Ref. č 4) 71705a VALVE COVER  1 € 15,70 € 19
SKLADOM
5 GASKET, VALVE COVER (MUST MATCH WITH 2b, 3b, 5b) (Ref. č 5) 72189 GASKET, VALVE COVER (MUST MATCH WITH 2b, 3b, 5b)  2 € 4,13 € 5
SKLADOM
6 O-RING 9.8X2.4 (Ref. č 6) 71719 O-RING 9.8X2.4  2 € 7,19 € 9
SKLADOM
7 71737 PIN DOWEL 8X9  2 € 9,59 € 12
NA DOPYT
8 INTAKE SIDE ROCKER ARM VALVE (Ref. č 8) 71951 INTAKE SIDE ROCKER ARM VALVE  1 € 40,58 € 50
SKLADOM
9 EXHAUST SIDE ROCKER ARM VALVE (Ref. č 9) 71670 EXHAUST SIDE ROCKER ARM VALVE  1 € 41,57 € 51
SKLADOM
21 11432 GASKETφ3  1 € 2,40 € 3
NA DOPYT
Kód produktu LINHAI_1_131_M750L T3b
typ rozkresu: ENGINE PARTS
ZNACKA: LINHAI
MODEL: M750L T3b
TYP: LINHAI M750
