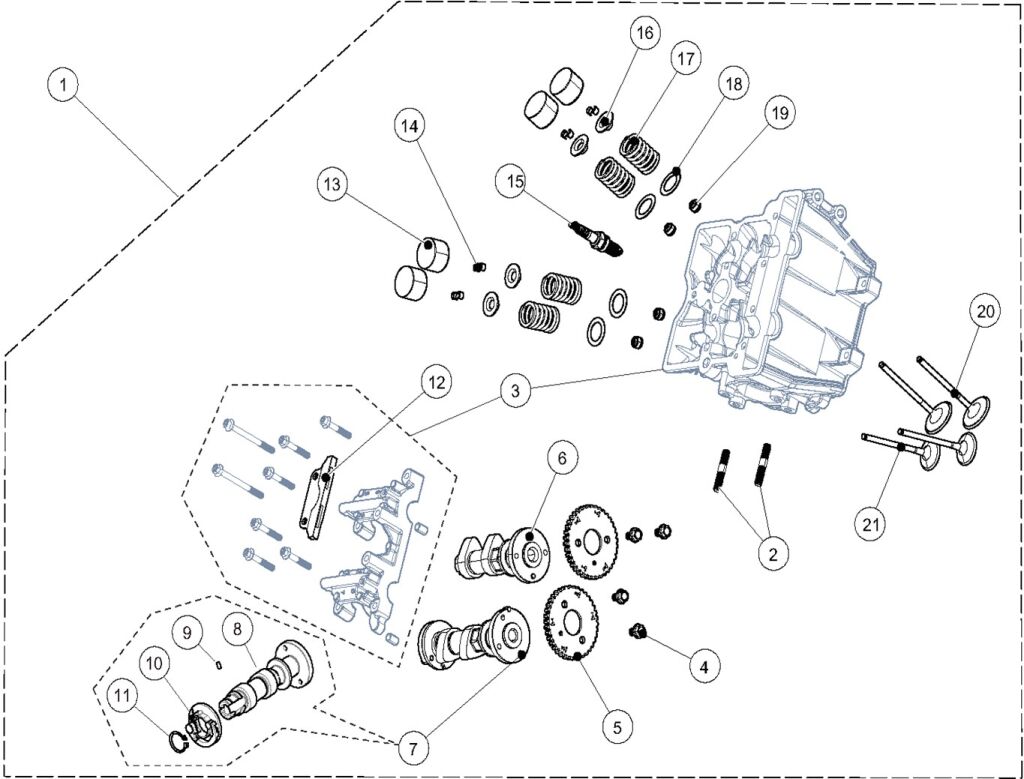

Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 CYLINDER HEAD ASSEMBLY (Ref. č 1) F01A20000002 CYLINDER HEAD ASSEMBLY  1 € 890,08 € 1 095
NA CESTE
13 R/B F01A20007001---F01A20007051 VALVE TAPPET (Ref. č 13) F01A20007000-MASTER R/B F01A20007001---F01A20007051 VALVE TAPPET  4 € 6,53 € 8
SKLADOM
Viac variantov
14 VALVE SPLIT KEEPER (Ref. č 14) F01A20005001 VALVE SPLIT KEEPER  8 € 2,48 € 3
SKLADOM
15 R/B F01A20400002 SPARK PLUG NGK CPR7EA-9 (3901) SEGWAY SNARLER AT6 (Ref. č 15) F01A20400001 R/B F01A20400002 SPARK PLUG NGK CPR7EA-9 (3901) SEGWAY SNARLER AT6  1 € 14,79 € 18
SKLADOM
15 R/B 900183 SPARK PLUG(TORCH) (Ref. č 15) F01A20400002 R/B 900183 SPARK PLUG(TORCH)  1 € 8,35 € 10
NA DOPYT
16 VALVE RETAINER (Ref. č 16) F01A20006001 VALVE RETAINER  4 € 6,86 € 8
SKLADOM
17 VALVE SPRING (Ref. č 17) F01A20001001 VALVE SPRING  4 € 17,77 € 22
NA CESTE
18 VALVE SPRING SEAT (Ref. č 18) F01A20004001 VALVE SPRING SEAT  4 € 5,04 € 6
SKLADOM
19 Valve oil seal (Ref. č 19) F01A20200001 Valve oil seal  4 € 5,04 € 6
SKLADOM
20 INTAKE VALVE (Ref. č 20) F01A20002001 INTAKE VALVE  2 € 22,31 € 27
SKLADOM
12 FIXED CAM CHAIN GUIDE (Ref. č 12) F01A40700001 FIXED CAM CHAIN GUIDE  1 € 13,31 € 16
SKLADOM
11 CIRCLIP 22 (Ref. č 11) GBT000894009 CIRCLIP 22  1 € 2,40 € 3
NA DOPYT
2 STUD M8×43 (Ref. č 2) F01A20008001 STUD M8×43  2 € 2,48 € 3
SKLADOM
3 CYLINDER HEAD - CAMSHAFT CARRIER COMBINATION (Ref. č 3) F01A20500001 CYLINDER HEAD - CAMSHAFT CARRIER COMBINATION  1 € 234,46 € 288
NA DOPYT
4 BOLT M6×12 (Ref. č 4) F01A40009001 BOLT M6×12  4 € 2,48 € 3
SKLADOM ZA 19 dní
5 CAMSHAFT SPROCKET (Ref. č 5) F01A40003001 CAMSHAFT SPROCKET  2 € 62,23 € 77
SKLADOM
6 INTAKE CAMSHAFT ASSY (Ref. č 6) F01A40110003 INTAKE CAMSHAFT ASSY  1 € 99,83 € 123
SKLADOM
7 EXHAUST CAMSHAFT ASSY (Ref. č 7) F01A40230003 EXHAUST CAMSHAFT ASSY  1 € 103,97 € 128
NA DOPYT
8 R/B F01A40230003 EXHAUST CAMSHAFT ASSEMBLY (Ref. č 8) F01A40220003 R/B F01A40230003 EXHAUST CAMSHAFT ASSEMBLY  1 € 46,86 € 58
SKLADOM
9 DOWEL PIN 4×6 (Ref. č 9) F01A40006001 DOWEL PIN 4×6  1 € 2,07 € 3
SKLADOM
10 AUTOMATIC COMPRESSION RELEASE UNIT (included in F01A40230003) (Ref. č 10) F01A40210002 AUTOMATIC COMPRESSION RELEASE UNIT (included in F01A40230003)  1 € 8,68 € 11
NA CESTE
21 EXHAUST VALVE (Ref. č 21) F01A20003001 EXHAUST VALVE  2 € 22,31 € 27
SKLADOM
Kód produktu SGW_1_109_ATV570F-A2
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: AT6
MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
