Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 BOLT M6×20 (Ref. č 1) F01000004001 BOLT M6×20  2 € 2,48 € 3
SKLADOM
17 CYLINDER HEAD BOLT (Ref. č 17) F01A20600001 CYLINDER HEAD BOLT  4 € 6,36 € 8
SKLADOM
18 CYLINDER HEAD ASSEMBLY (Ref. č 18) F01A20000002 CYLINDER HEAD ASSEMBLY  1 € 890,08 € 1 095
SKLADOM
19 SCREW M8×25 (Ref. č 19) GBT000701019 SCREW M8×25  2 € 2,18 € 3
SKLADOM
20 AIR INTAKE PIPE ASSEMBLY (Ref. č 20) E01A50100001 AIR INTAKE PIPE ASSEMBLY  1 € 49,75 € 61
SKLADOM
21 A-BAND, TRANSMISSION HOSE 70 (Ref. č 21) QCT000620006 A-BAND, TRANSMISSION HOSE 70  1 € 3,88 € 5
SKLADOM
22 VALVE COVER SEAL (Ref. č 22) F01A10002001 VALVE COVER SEAL  1 € 31,40 € 39
SKLADOM

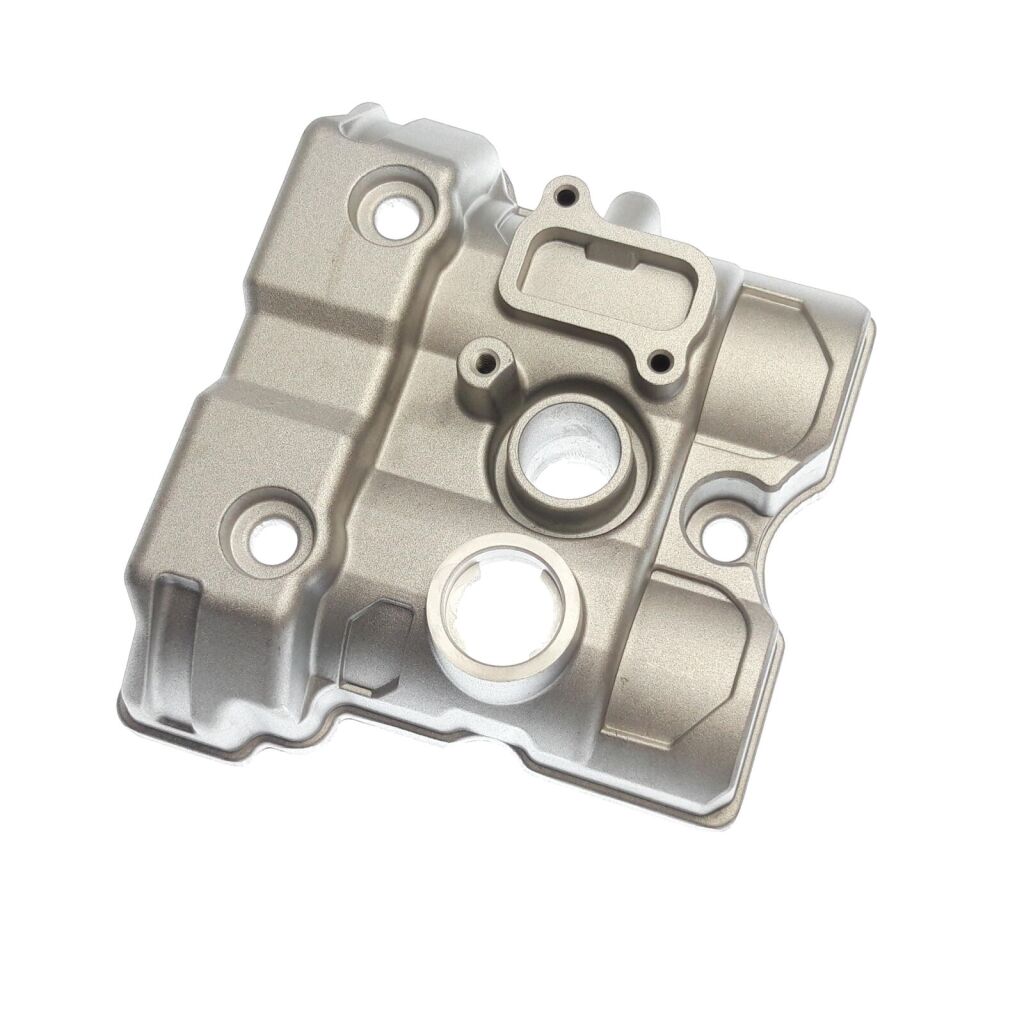

23 VALVE COVER (Ref. č 23) F01A10001003 VALVE COVER  1 € 95,70 € 118
SKLADOM
24 Seal,Oil fill cap (Ref. č 24) F01A10005001 Seal,Oil fill cap  1 € 4,13 € 5
SKLADOM
25 O-Ring 22×3 (Ref. č 25) F01A10009001 O-Ring 22×3  1 € 2,48 € 3
SKLADOM
26 OIL FILL CAP (Ref. č 26) F01A10004001 OIL FILL CAP  1 € 5,95 € 7
SKLADOM
27 R/B F01A20400002 SPARK PLUG NGK CPR7EA-9 (3901) SEGWAY SNARLER AT6 (Ref. č 27) F01A20400001 R/B F01A20400002 SPARK PLUG NGK CPR7EA-9 (3901) SEGWAY SNARLER AT6  1 € 14,79 € 18
SKLADOM
28 SHOULDER BOLT (Ref. č 28) F01A10008001 SHOULDER BOLT  3 € 2,48 € 3
SKLADOM
29 Bolt rubber gasket 10 (Ref. č 29) F01A10003001 Bolt rubber gasket 10  3 € 2,48 € 3
SKLADOM
16 F01A10007001 R/B F01A10007003 DOWEL PIN 10×14  1 € 2,07 € 3
NA DOPYT
15 BOLT M6×90 (Ref. č 15) F01000012001 BOLT M6×90  2 € 2,48 € 3
SKLADOM
14 CYLINDER HEAD GASKET (Ref. č 14) F01A30200001 CYLINDER HEAD GASKET  1 € 49,75 € 61
SKLADOM
2 CHAIN GUARD (Ref. č 2) F01A40005001 CHAIN GUARD  1 € 17,77 € 22
SKLADOM
3 SHOULDER BOLT (Ref. č 3) F01A40007001 SHOULDER BOLT  2 € 2,48 € 3
NA DOPYT
4 R/B E02-A406010-000-02 CHAIN GUIDE,TENSIONER (Ref. č 4) F02A40601001 R/B E02-A406010-000-02 CHAIN GUIDE,TENSIONER  1 € 58,10 € 71
SKLADOM
5 CHAIN GUIDE (Ref. č 5) F01A40500001 CHAIN GUIDE  2 € 35,95 € 44
SKLADOM
6 TIMING CHAIN (Ref. č 6) F01A40400001 TIMING CHAIN  1 € 103,97 € 128
SKLADOM
7 TENSIONER GASKET (Ref. č 7) F01A40008001 TENSIONER GASKET  1 € 4,55 € 6
SKLADOM
8 TENSIONER (Ref. č 8) F01A40300001 TENSIONER  1 € 74,30 € 91
SKLADOM
9 BOLT M6×25 (Ref. č 9) F01000005001 BOLT M6×25  3 € 2,48 € 3
SKLADOM

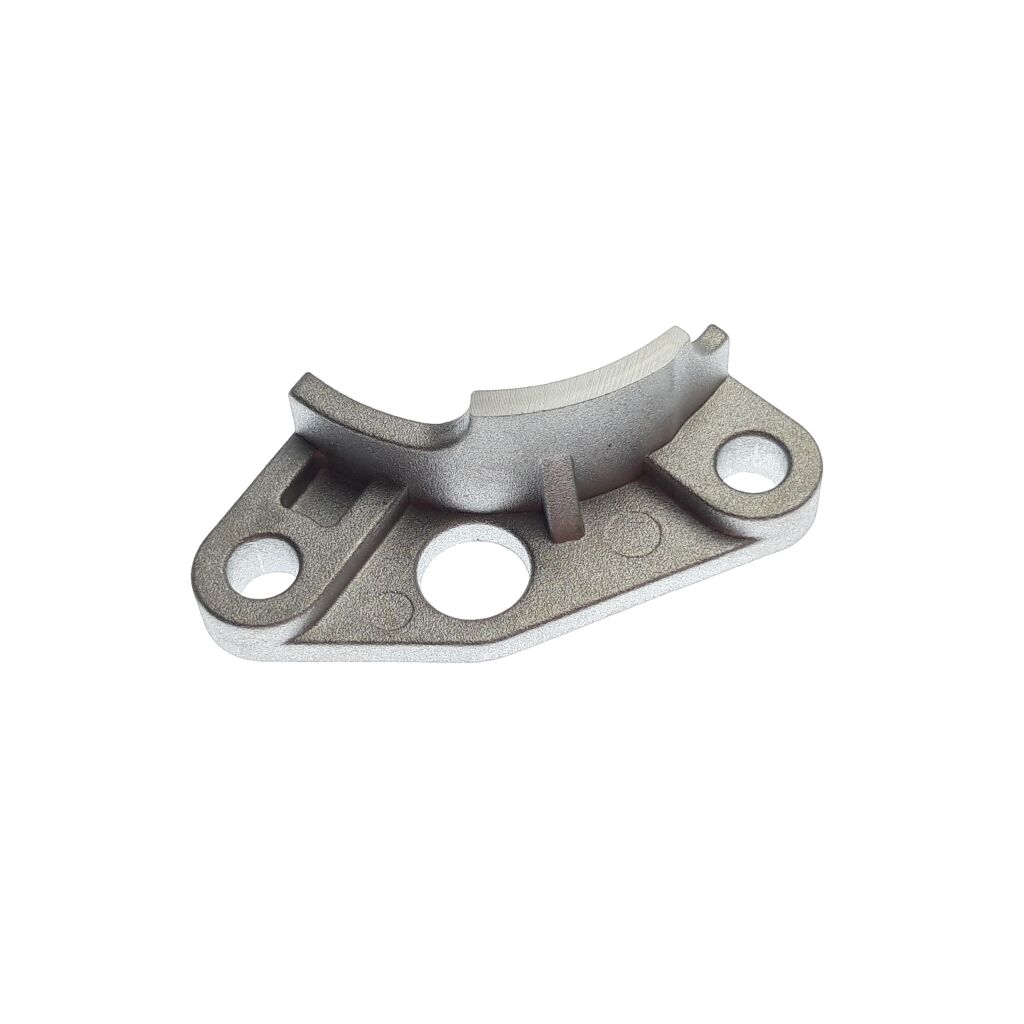

10 PIPE&LINE FIXING PLATE (Ref. č 10) F01A40011001 PIPE&LINE FIXING PLATE  1 € 10,58 € 13
SKLADOM
11 CYLINDER BASE GASKET (Ref. č 11) F01A30001001 CYLINDER BASE GASKET  1 € 10,41 € 13
SKLADOM

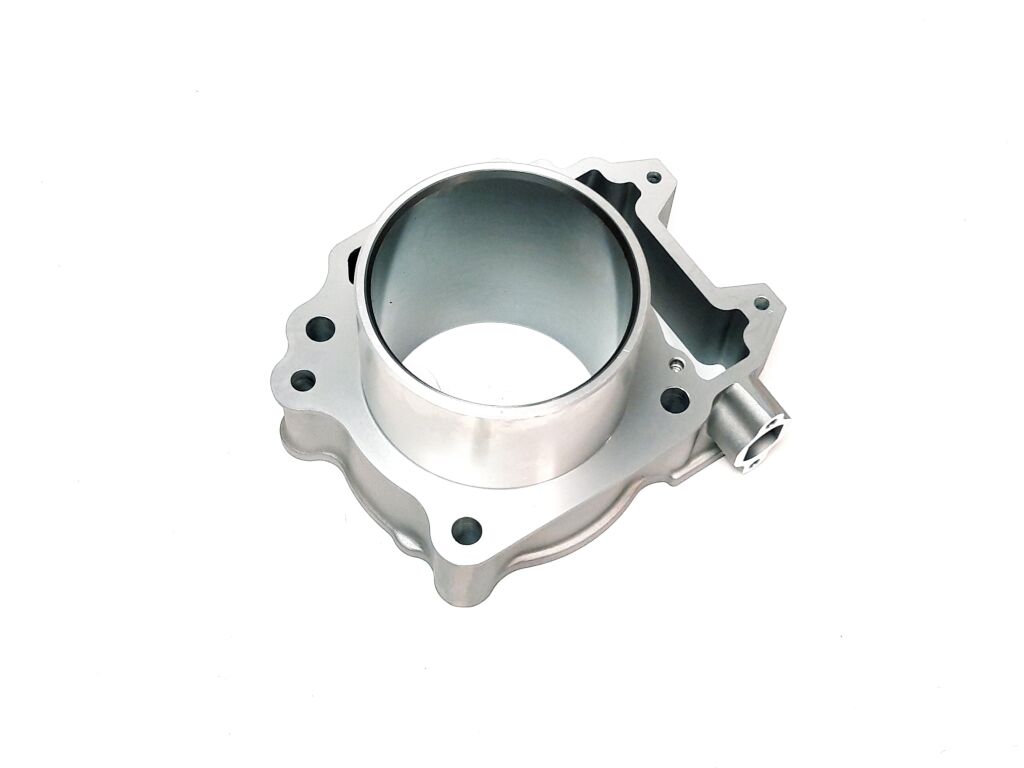

12 CYLINDER(Ⅰ） (Ref. č 12) F01A30100003 CYLINDER(Ⅰ）  1 € 181,74 € 224
SKLADOM
12 CYLINDER（Ⅱ） (Ref. č 12) F01A30100004 CYLINDER（Ⅱ）  1 € 181,74 € 224
NA DOPYT
13 DOWEL PIN 6×10 (Ref. č 13) GBT001192001 DOWEL PIN 6×10  2 € 2,48 € 3
SKLADOM
30 HOSE CLAMP (Ref. č 30) F01H00011001 HOSE CLAMP  1 € 2,07 € 3
SKLADOM
Kód produktu SGW_1_107_ATV570F-A2

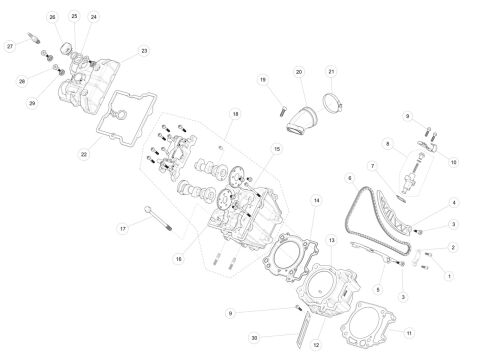

typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: AT6
MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
