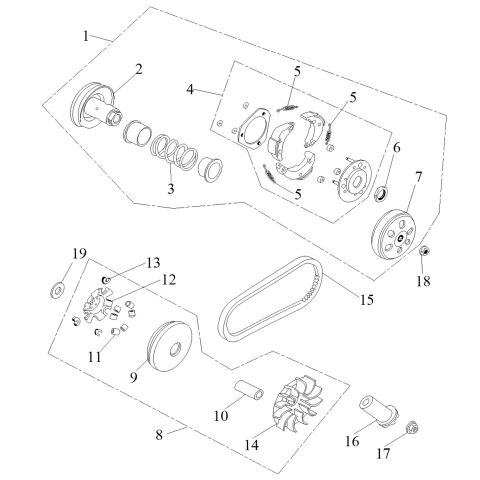

CVT

ACCESS MOTOR
Výrobca: ACCESS MOTOR
Kód produktu: Access_E-5_MAX-5-400-EFI
MODEL:
MAX 5 400 EFI MAX 5 400 EFI
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
04 Carrier Ass'y, Clutch (Ref. č 04) 22330-E13-000 Carrier Ass'y, Clutch  1 € 131,40 € 159
SKLADOM
18 Nut,Hex. Flange (Ref. č 18) 92120-13-19C Nut,Hex. Flange  1 € 9,09 € 11
SKLADOM
17 R/B 92120-14-21C Hex, Acorn Nut, Flange (Ref. č 17) 92121-14-19C R/B 92120-14-21C Hex, Acorn Nut, Flange  1 € 2,48 € 3
NA DOPYT
16 WASHER (Ref. č 16) 93240-E13-000 WASHER  1 € 4,96 € 6
NA CESTE
15 Belt, Drive Access, Triton 400 (Ref. č 15) 22500-E17-000 Belt, Drive Access, Triton 400  1 € 306,79 € 371,22
SKLADOM
14 Movable Face Seal (Ref. č 14) 22420-E17-000 Movable Face Seal  1 € 21,49 € 26
SKLADOM
13 R/B 22412-E33-000 Slider, Cam Plate (Ref. č 13) 22412-E17-000 R/B 22412-E33-000 Slider, Cam Plate  3 € 2,48 € 3
Naskladňujeme
12 Plate, Cam (Ref. č 12) 22411-E17-000 Plate, Cam  1 € 17,36 € 21
SKLADOM
11 Weight Roller (Ref. č 11) 22413-E17-000 Weight Roller  6 € 4,96 € 6
SKLADOM
10 Collar 61.5mm (Ref. č 10) 22414-E17-000 Collar 61.5mm  1 € 12,40 € 15
NA DOPYT
09 Sliding Sheave (Ref. č 09) 22410-E17-000 Sliding Sheave  1 € 25,62 € 31
SKLADOM
08 22400-E17-000 R/B 22400-E33-000 Sliding Sheave Ass'y  1 € 110,74 € 134
NA DOPYT
06 Nut, Clutch (Ref. č 06) 22332-E17-000 Nut, Clutch  1 € 2,48 € 3
NA CESTE
05 SPRING, clutch (Ref. č 05) 22331-E17-000 SPRING, clutch  3 € 2,48 € 3
SKLADOM
19 P93107-20027-05 Washer , Plate(SK5)  1 € 2,48 € 3
SKLADOM
