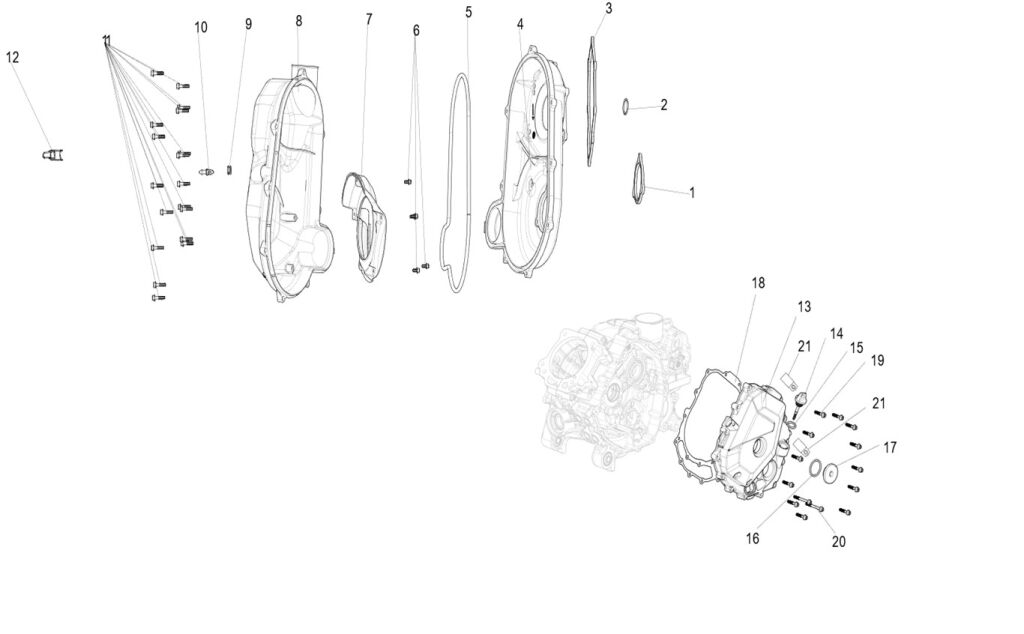

CVT COVER AND LEFT CRANKCASE COVER

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_111_SGW570-A11-ABS
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 CVT INNER COVER SEAL Ⅱ (Ref. č 1) F01C30002001 CVT INNER COVER SEAL Ⅱ  1 € 13,64 € 17
SKLADOM
13 LEFT CRANKCASE COVER ASSEMBLY (Ref. č 13) E01C20110001 LEFT CRANKCASE COVER ASSEMBLY  1 € 179,75 € 221
SKLADOM
14 OIL DIPSTICK (Ref. č 14) E01C20102001 OIL DIPSTICK  1 € 8,35 € 10
NA DOPYT
15 O-Ring 18×3.5 (Ref. č 15) E01C20103001 O-Ring 18×3.5  1 € 2,48 € 3
SKLADOM
16 O-Ring 35×3.5 (Ref. č 16) E01C20107001 O-Ring 35×3.5  1 € 2,48 € 3
SKLADOM
17 STATOR COVER PLUG (Ref. č 17) E01C20104001 STATOR COVER PLUG  1 € 18,93 € 23
SKLADOM
18 LEFT CRANKCASE COVER GASKET (Ref. č 18) E01C20101001 LEFT CRANKCASE COVER GASKET  1 € 22,73 € 28
NA CESTE
19 BOLT M6×30 (Ref. č 19) F01000006001 BOLT M6×30  12 € 2,48 € 3
SKLADOM
20 BOLT M6×55 (Ref. č 20) F01000009001 BOLT M6×55  2 € 2,48 € 3
SKLADOM
12 Hook (Ref. č 12) S03A20104001 Hook  1 € 2,40 € 3
SKLADOM
11 BOLT M8×30 (Ref. č 11) F01000015001 BOLT M8×30  18 € 2,48 € 3
SKLADOM
10 CVT COVER PLUG (Ref. č 10) F01C30005001 CVT COVER PLUG  1 € 2,48 € 3
NA CESTE
2 O-RING 30×3 (Ref. č 2) F01C30006001 O-RING 30×3  1 € 2,48 € 3
SKLADOM
3 CVT INNER COVER SEALⅠ (Ref. č 3) F01C30001001 CVT INNER COVER SEALⅠ  1 € 58,84 € 72
SKLADOM
4 CVT Inner Cover (Ref. č 4) F01-C300000-000-00 CVT Inner Cover  1 € 64,55 € 79
SKLADOM

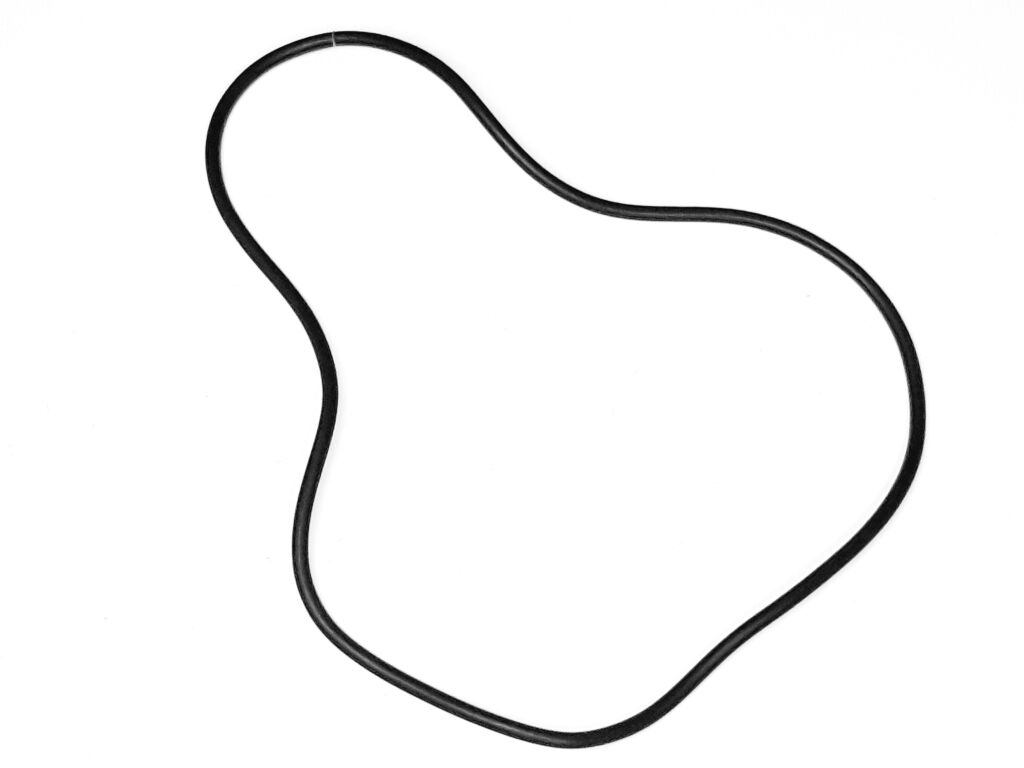

5 CVT Cover Sealing Ring (Ref. č 5) F01-C301001-0K0-00 CVT Cover Sealing Ring  1 € 7,02 € 9
SKLADOM
6 BOLT M6×12 (Ref. č 6) F01000001001 BOLT M6×12  5 € 2,48 € 3
SKLADOM
7 Air Shroud (Ref. č 7) F01-C301141-000-00 Air Shroud  1 € 7,02 € 9
SKLADOM

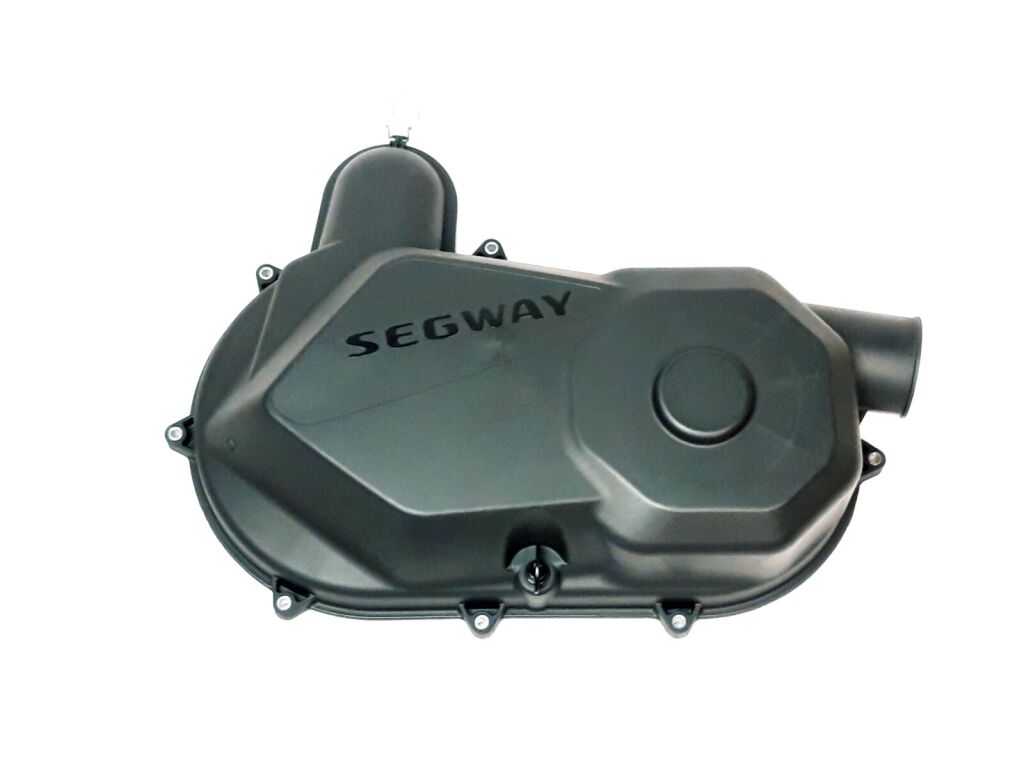

8 CVT Outer Cover (Ref. č 8) F01-C300000-0K0-00 CVT Outer Cover  1 € 51,65 € 64
SKLADOM
9 Seal,Clutch cover plug (Ref. č 9) F01C30004001 Seal,Clutch cover plug  1 € 8,68 € 11
SKLADOM

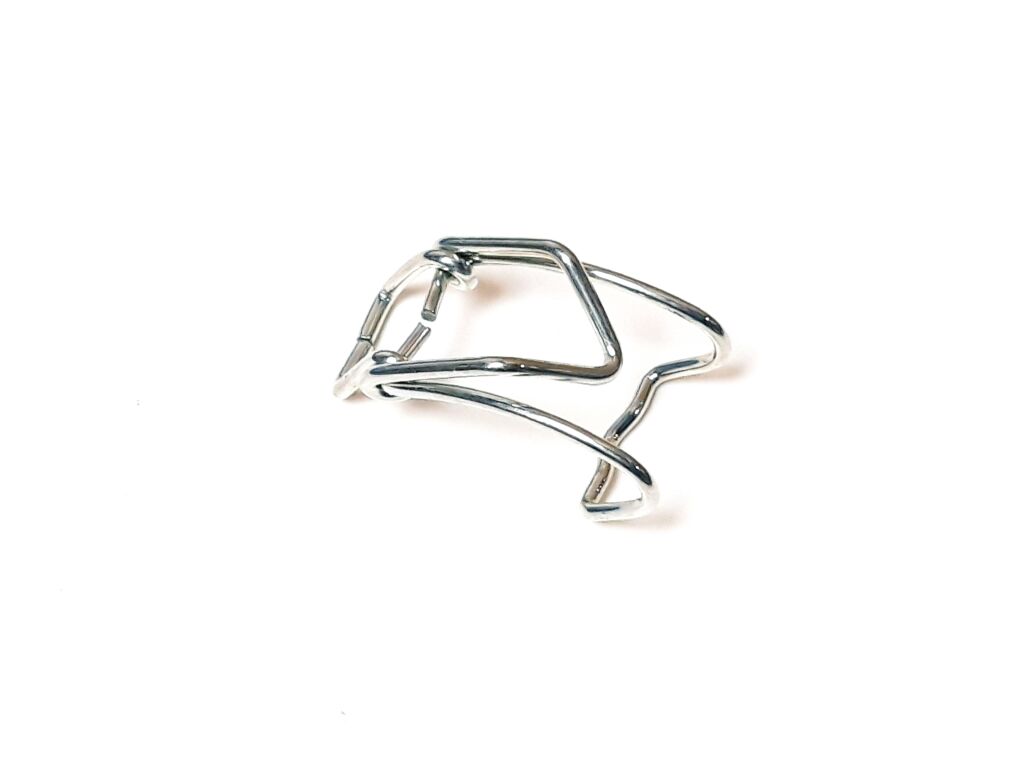

21 HOSE CLAMP (Ref. č 21) F01H00002001 HOSE CLAMP  2 € 2,48 € 3
SKLADOM
Kód produktu SEGWAY_1_111_SGW570-A11-ABS
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: AT6
MODEL: Snarler AT6 L ABS T3b
