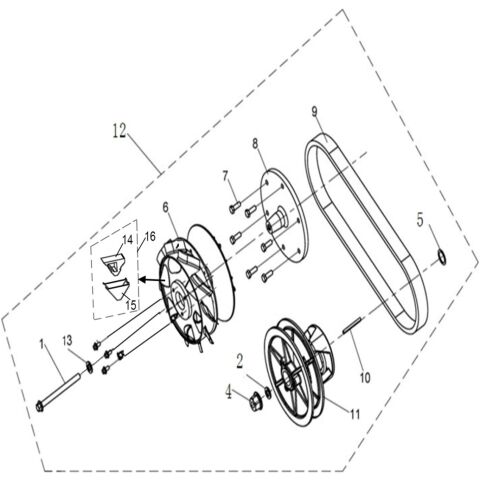

CVT ASSY (NORMAL VERSION) Ver.24

LINHAI
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

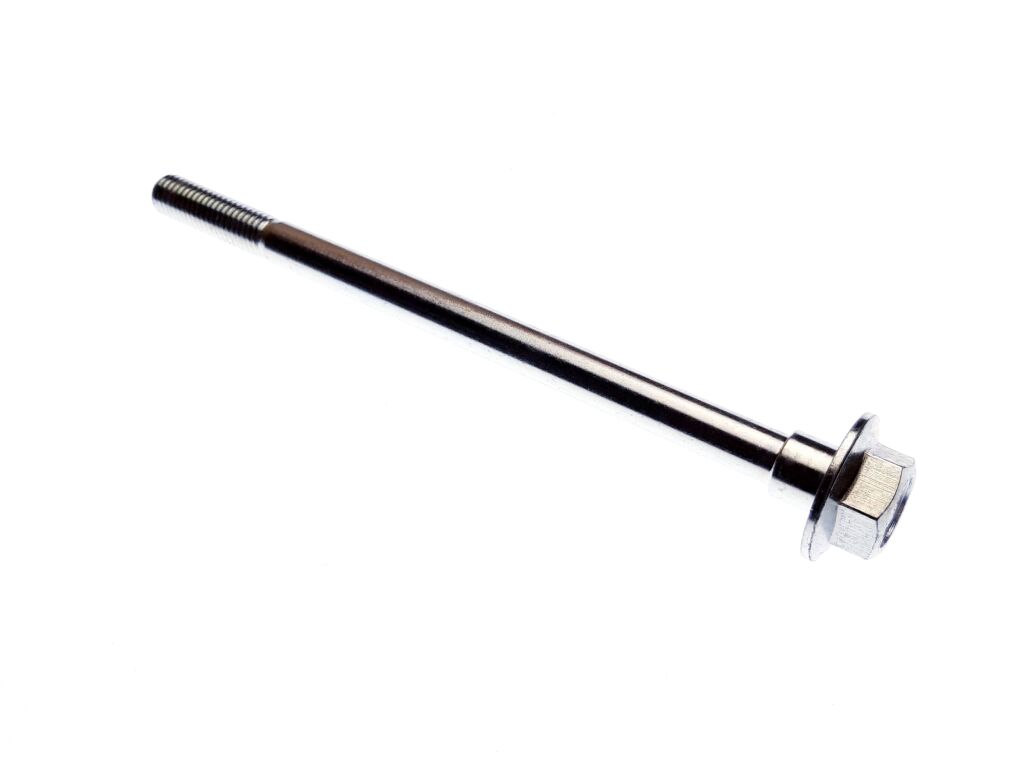

1 Down Cover .CVT (Ref. č 1) 86361 Down Cover .CVT  1 € 64,71 € 80
NA DOPYT

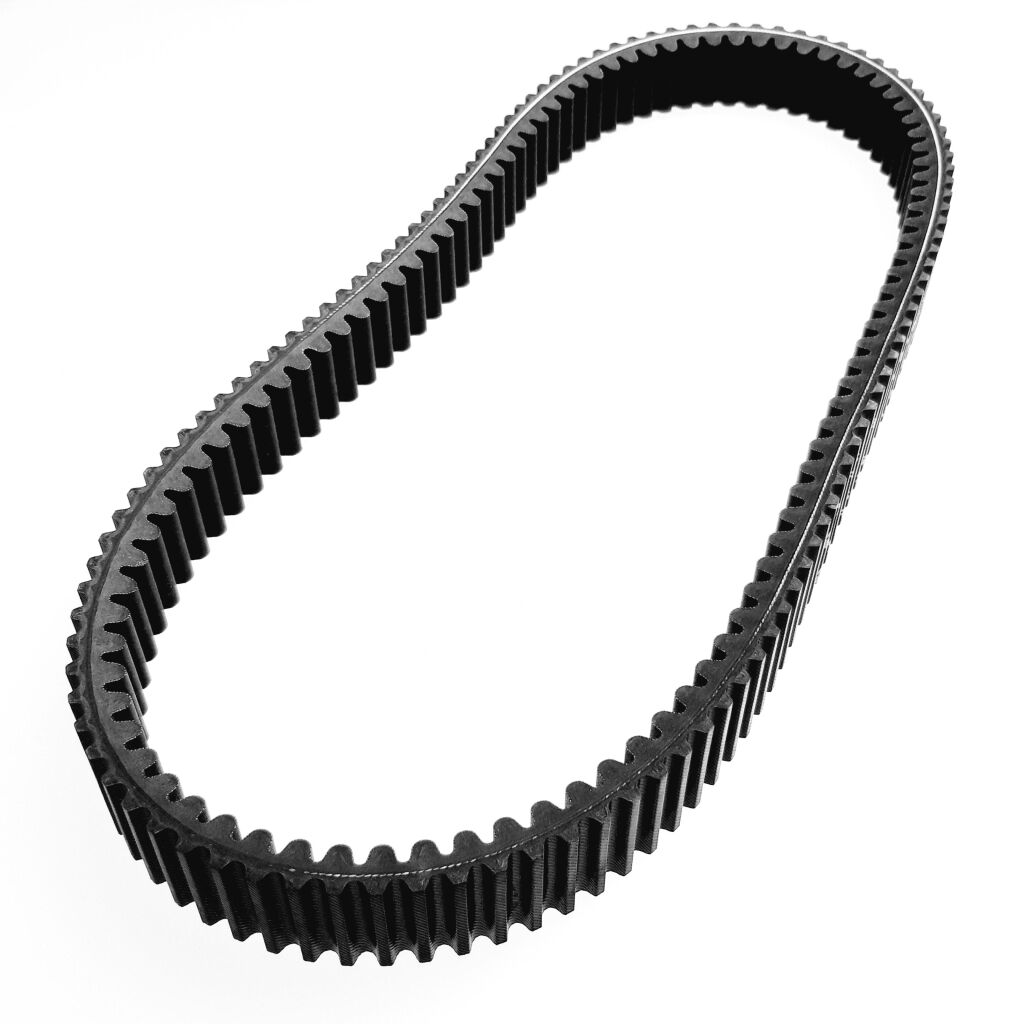

9 Belt (Ref. č 9) 86357 Belt  1 € 325,62 € 401
SKLADOM
10 Key, B4.7X55 (Ref. č 10) 84070 Key, B4.7X55  1 € 3,22 € 4
NA DOPYT

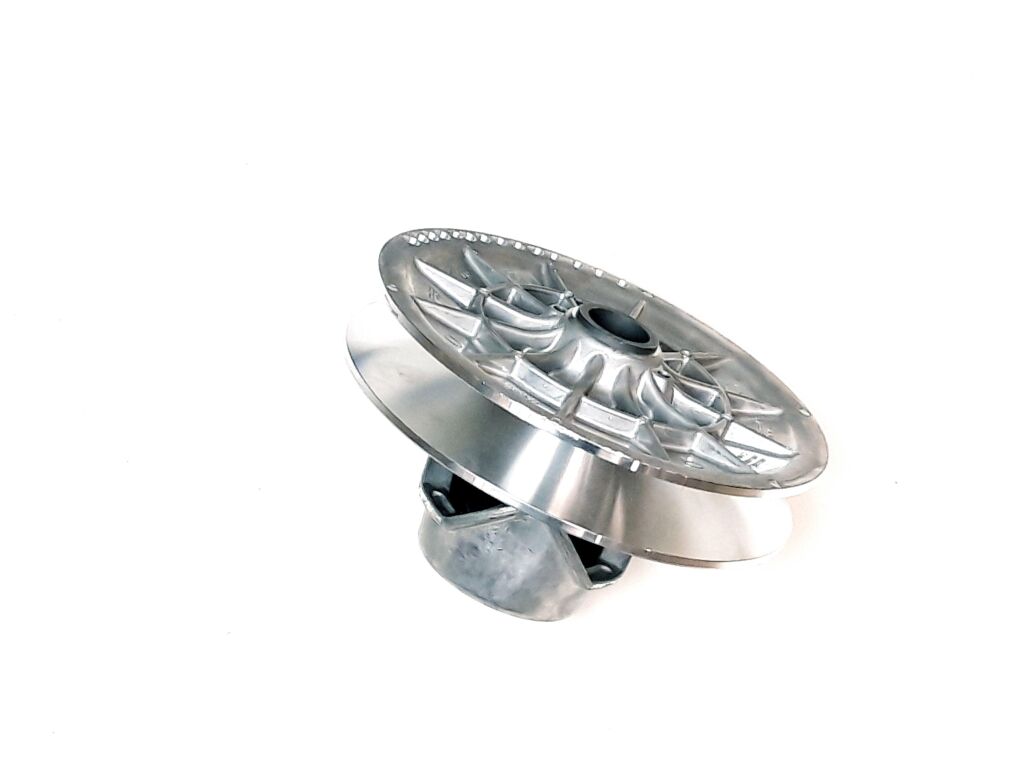

11 Driven Pulley Comp. (Ref. č 11) 86358 Driven Pulley Comp.  1 € 930,33 € 1 144
NA DOPYT

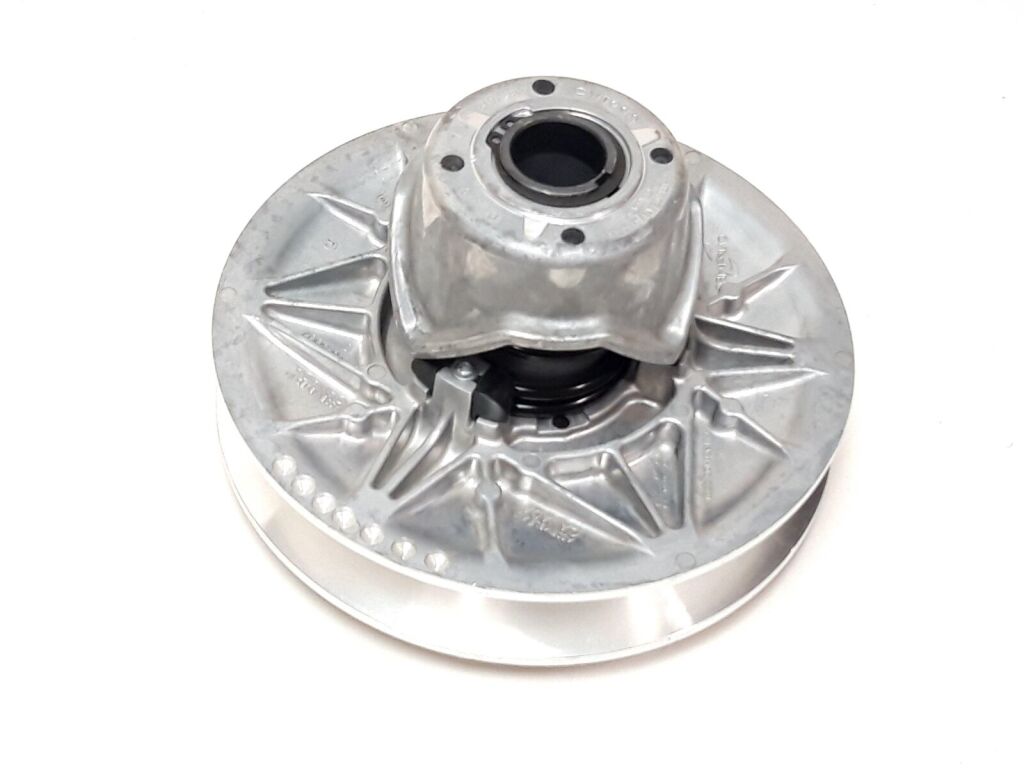

11 Driven Pulley Comp. (With spline) (Ref. č 11) 86615 Driven Pulley Comp. (With spline)

←

1 € 963,88 € 1 186
SKLADOM ZA 7 dní
12 86412 CVT Assy  1 € 2 552,64 € 3 140
NA DOPYT
13 NUT WASHER (Ref. č 13) 26324 NUT WASHER  1 € 2,40 € 3
SKLADOM
14 86599 MASSELOTTE  6
NA DOPYT
15 86602 BLOCK  6
NA DOPYT
8 86677 Shaft  1 € 82,07 € 101
NA DOPYT
8 Shaft (Ref. č 8) 86356 Shaft  1 € 117,69 € 145
SKLADOM
2 Washer 12 (Ref. č 2) 28053 Washer 12  1 € 9,34 € 11
SKLADOM
4 NUT FLANGE 12X1.25MM (Ref. č 4) 28054 NUT FLANGE 12X1.25MM  1 € 2,40 € 3
SKLADOM
4 Nut M20×1.5 (Match Driven Pulley Comp. with spline P/NO. 86615) (Ref. č 4) 86613 Nut M20×1.5 (Match Driven Pulley Comp. with spline P/NO. 86615)

←→

1 € 8,43 € 10
SKLADOM
5 adjusting shim2 (Ref. č 5) 84384 adjusting shim2  1 € 2,40 € 3
SKLADOM
5 adjusting shim (Match Driven Pulley Comp. with spline P/NO. 86615) (Ref. č 5) 86603 adjusting shim (Match Driven Pulley Comp. with spline P/NO. 86615)  1 € 2,15 € 3
SKLADOM

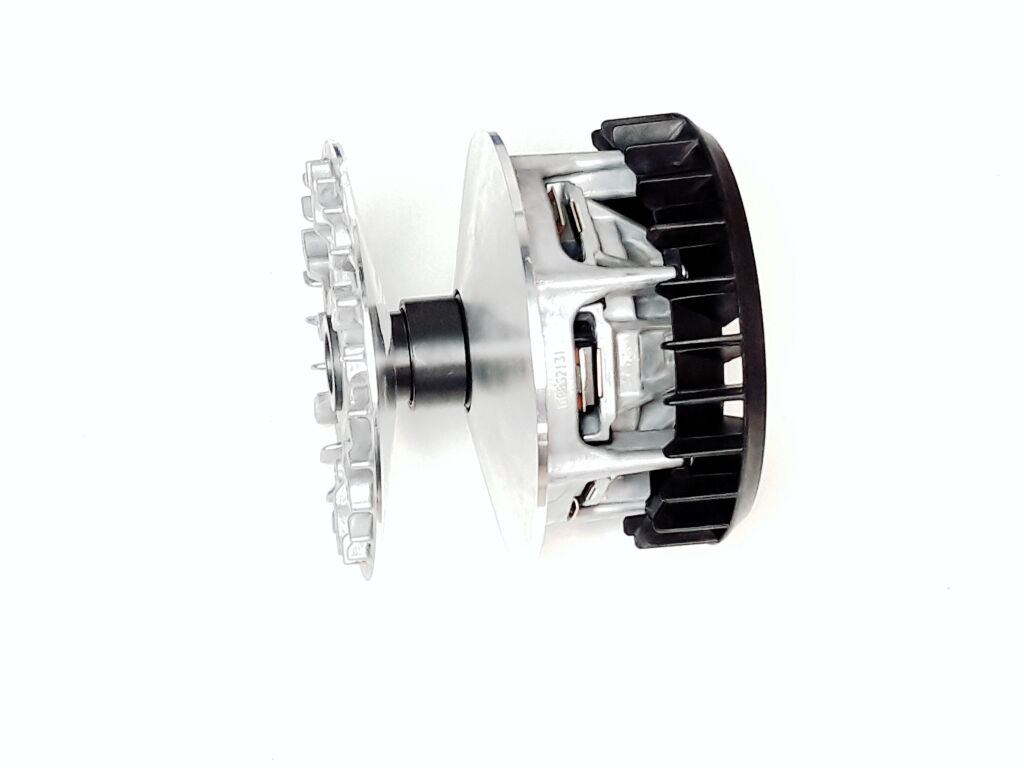

6 Drive Pulley Comp. (Ref. č 6) 86355 Drive Pulley Comp.  1 € 1 624,21 € 1 998
NA DOPYT
7 11398 Bolt M10X1.25X25  6 € 2,40 € 3
NA DOPYT

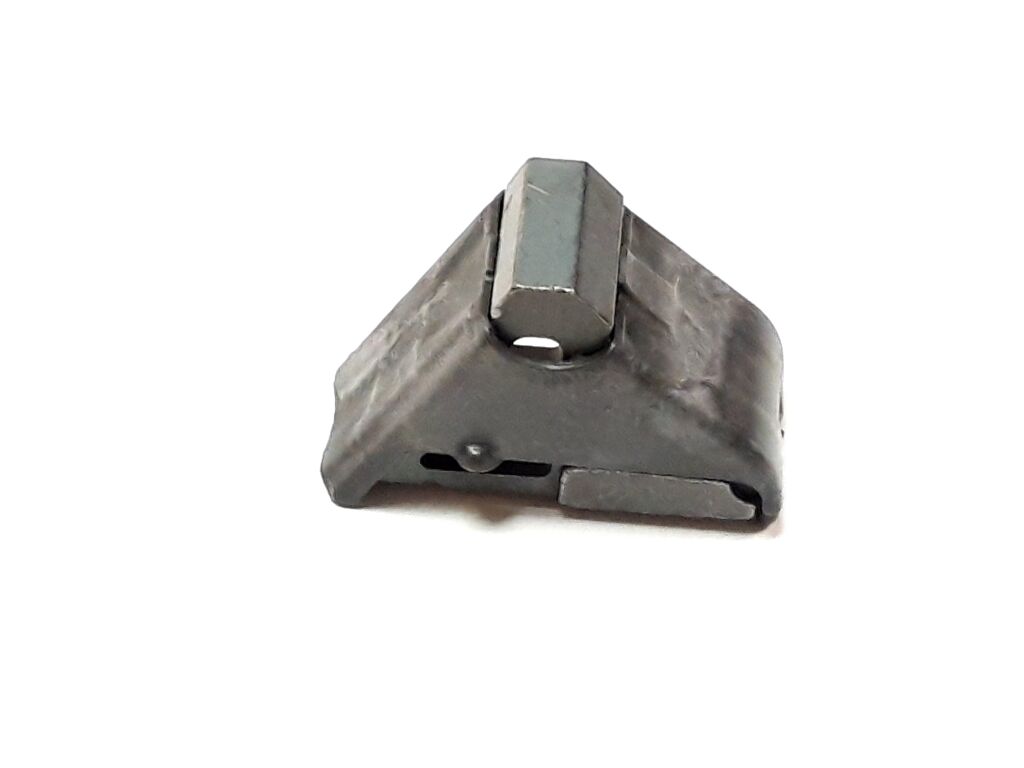

16 MASS CENTRIFUGE (Ref. č 16) 86665 MASS CENTRIFUGE  6 € 46,12 € 57
SKLADOM
Kód produktu LINHAI_1_153_LH1100U-24
typ rozkresu: ENGINE PARTS
ZNACKA: LINHAI
MODEL: T-BOSS LH1100U D T1b (EPS)
TYP: LINHAI UTV 1100 Diesel
