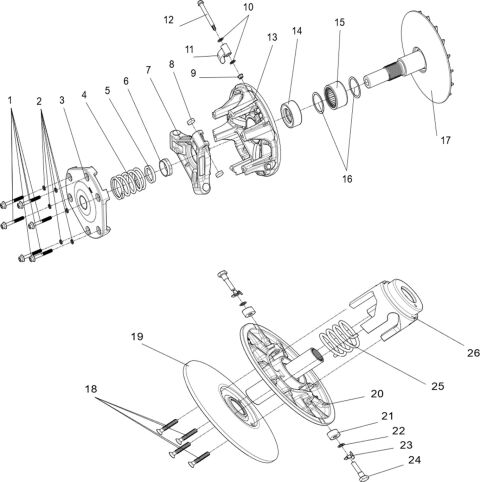

CVT assembly HZ CVT

SEGWAY
Výrobca: SEGWAY
Kód produktu: SEGWAY_1_124_UTV1000
MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 BOLT M6×52 (Ref. č 1) E02E20005001 BOLT M6×52  6 € 2,23 € 2,70
NA DOPYT
16 THRUST WASHER 40.5 (Ref. č 16) E02E20001001 THRUST WASHER 40.5  2 € 2,23 € 2,70
NA DOPYT
17 DRIVE PULLEY SET (Ref. č 17) E02E21000001 DRIVE PULLEY SET  1 € 2,23 € 2,70
NA DOPYT
18 FIXING SCREW (Ref. č 18) E02E30001001 FIXING SCREW  4 € 2,23 € 2,70
NA DOPYT
19 MOVING DISK ASSEMBLY (Ref. č 19) E02E30100001 MOVING DISK ASSEMBLY  1 € 2,23 € 2,70
NA DOPYT
20 FIXED SHAFT (Ref. č 20) E02E31100001 FIXED SHAFT  1 € 2,23 € 2,70
NA DOPYT
21 SLIDER(HZ) (Ref. č 21) E02E31001001 SLIDER(HZ)  2 € 7,27 € 8,80
SKLADOM
22 WASHER 8 (Ref. č 22) E02E22002001 WASHER 8  2 € 2,23 € 2,70
NA DOPYT
23 BOLT LOCK CATCH (Ref. č 23) E02E31003001 BOLT LOCK CATCH  2 € 2,23 € 2,70
NA DOPYT
24 CVT BOLT (Ref. č 24) E02E31002001 CVT BOLT  2 € 2,23 € 2,70
NA DOPYT
25 DRIVEN SPRING (Ref. č 25) E02E30002001 DRIVEN SPRING  1 € 2,23 € 2,70
NA DOPYT
15 BEARING ASSEMBLY (Ref. č 15) E02E25000001 BEARING ASSEMBLY  1 € 2,23 € 2,70
NA DOPYT
14 BEARING SLEEVE (Ref. č 14) E02E20002001 BEARING SLEEVE  1 € 2,23 € 2,70
NA DOPYT
12 BOLT M6×68 (Ref. č 12) E02E22001001 BOLT M6×68  3 € 2,23 € 2,70
NA DOPYT
2 Spring washer Φ 6 (Ref. č 2) GB0000093003 Spring washer Φ 6  6 € 2,23 € 2,70
NA DOPYT
3 COVER PLATE ASSEMBLY (Ref. č 3) E02E24000001 COVER PLATE ASSEMBLY  1 € 2,23 € 2,70
NA DOPYT
4 SPRING (Ref. č 4) E02E20008001 SPRING  1 € 2,23 € 2,70
NA DOPYT
5 POSITIONING BUSHING (Ref. č 5) E02E20009001 POSITIONING BUSHING  1 € 2,23 € 2,70
NA DOPYT
6 NUT (Ref. č 6) E02E20007001 NUT  1 € 2,23 € 2,70
NA DOPYT
7 BRACKET ASSEMBLY (Ref. č 7) E02E23000001 BRACKET ASSEMBLY  1 € 2,23 € 2,70
NA DOPYT
8 BRACKET BUFFER GASKET (Ref. č 8) E02E23001001 BRACKET BUFFER GASKET  6 € 2,23 € 2,70
NA DOPYT
9 NUT M6 (Ref. č 9) GBT061771002 NUT M6  3 € 2,44 € 2,95
SKLADOM
11 BLOCK ASSEMBLY (Ref. č 11) E02E22110001 BLOCK ASSEMBLY  3 € 2,23 € 2,70
NA DOPYT
26 CAM COMBINATION (Ref. č 26) E02E30200001 CAM COMBINATION  1 € 2,23 € 2,70
NA DOPYT
10 WASHER 8 (Ref. č 10) E02E22002001 WASHER 8  6 € 2,23 € 2,70
NA DOPYT
