CRANKCASE

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
53 STOPPER PLATE (Ref. č 53) 910669 STOPPER PLATE  1 € 3,14 € 4
NA DOPYT
37 P40501 PIN, DOWEL  4 € 2,81 € 3
NA DOPYT
36 S20219 BOLT, FLANGE  4 € 8,84 € 11
NA DOPYT

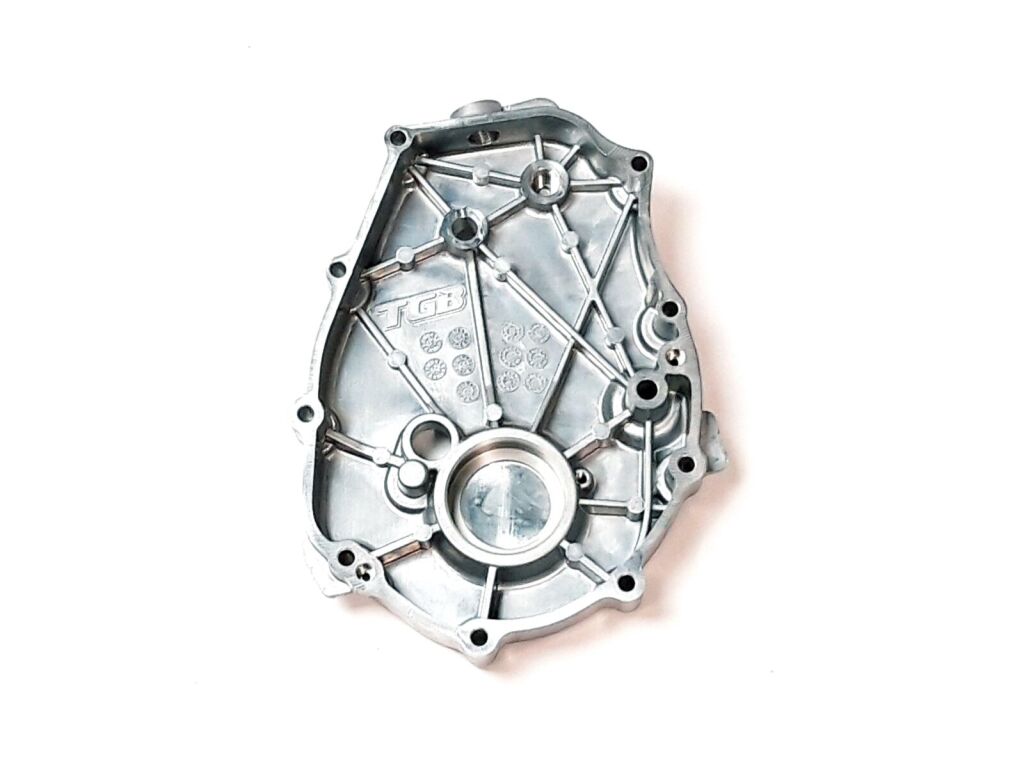

35 COVER , CRANKCASE RH (Ref. č 35) 910051 COVER , CRANKCASE RH  1 € 105,04 € 129
SKLADOM
34 GASKET (Ref. č 34) 910052 GASKET  1 € 16,45 € 20
SKLADOM
33 BOLT, FLANGE (Ref. č 33) S20057 BOLT, FLANGE  2 € 6,12 € 8
SKLADOM
30 NUT, SELF LOCK M12 (Ref. č 30) N25201 NUT, SELF LOCK M12  2 € 2,40 € 3
SKLADOM
28 S20217 BOLT, FLANGE M6X25  1 € 1,98 € 2
NA DOPYT
27.5 WASHER (Ref. č 27-5) W99719 WASHER  1 € 1,98 € 2
SKLADOM
27.2 WASHER 12mm (Ref. č 27-2) W99201 WASHER 12mm  1 € 2,40 € 3
SKLADOM
38 910479 CONNECTING PLATE  1 € 11,65 € 14
NA DOPYT
39 S20055 BOLT, FLANGE  1 € 5,12 € 6
NA DOPYT
51 S08601 SCREW, WASHER  5 € 1,98 € 2
NA DOPYT
50 BOLT, FLANGE M6x16 (Ref. č 50) S24603 BOLT, FLANGE M6x16  3 € 2,40 € 3
SKLADOM
49 AIR DEFLECTOR (Ref. č 49) 910591 AIR DEFLECTOR  1 € 13,88 € 17
NA DOPYT
48 O RING (Ref. č 48) 910673 O RING  1 € 5,37 € 7
SKLADOM
47 CAP (Ref. č 47) 910667 CAP  1 € 57,36 € 71
SKLADOM
46 SPACER (Ref. č 46) 910476 SPACER  1 € 7,36 € 9
SKLADOM

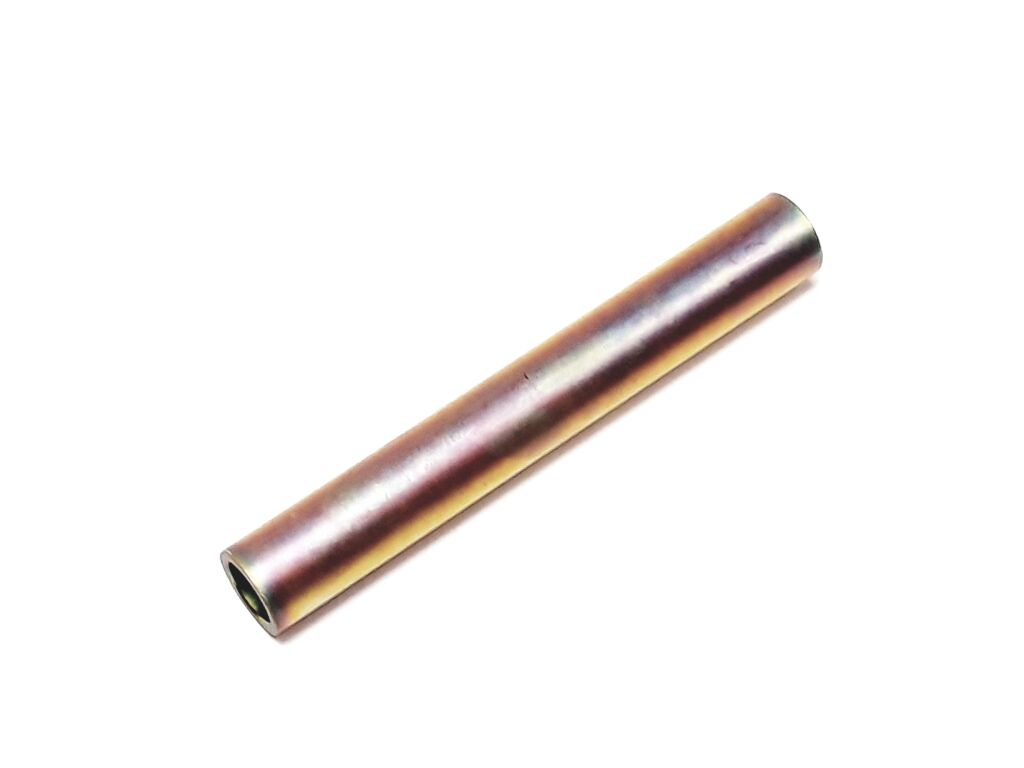

45 SHAFT, FRONT WHEEL 12X227 (Ref. č 45) S20203 SHAFT, FRONT WHEEL 12X227  1 € 16,53 € 20
SKLADOM

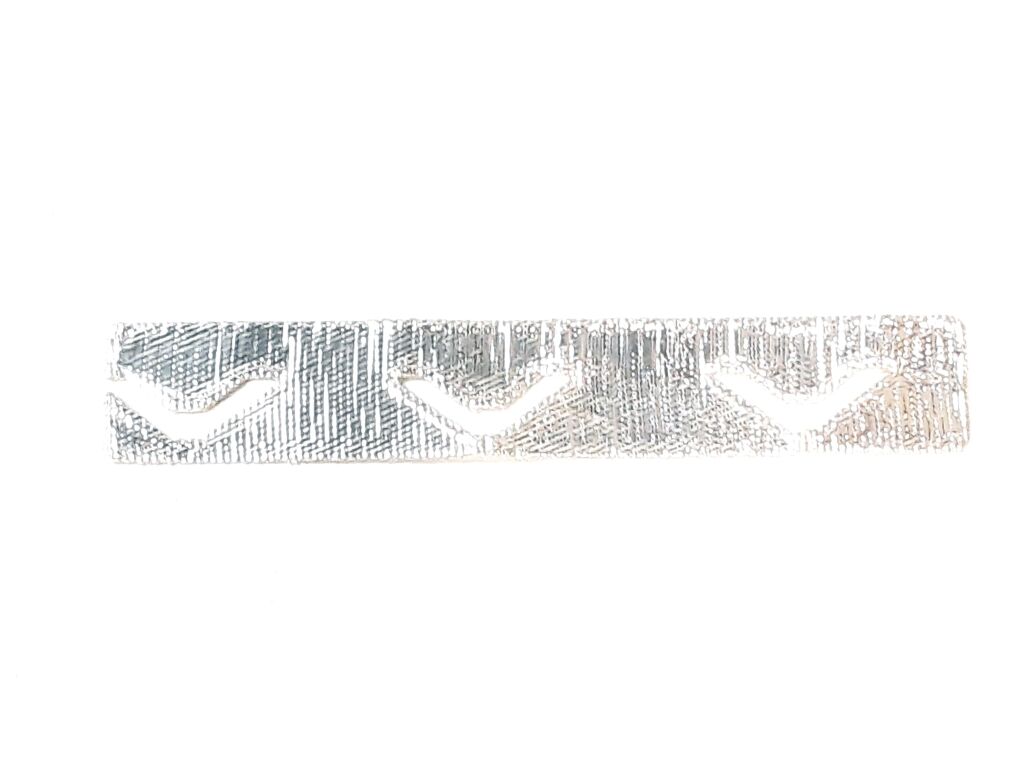

43.1 HEAT INSULATION (Ref. č 43-1) 911323 HEAT INSULATION  1 € 17,93 € 22
NA CESTE
43 R/B 910659 TRANSMISSION HOUSING COMP.(INCLUDING HEAT INSULATION, BOLT, WASHER) (Ref. č 43) 911571A R/B 910659 TRANSMISSION HOUSING COMP.(INCLUDING HEAT INSULATION, BOLT, WASHER)  1 € 252,31 € 310
NA DOPYT
42 BOLT, FLANGE (Ref. č 42) S20056 BOLT, FLANGE  1 € 5,54 € 7
SKLADOM
41 GASKET (Ref. č 41) 910478 GASKET  1 € 16,78 € 21
SKLADOM ZA 23 dní
40 TRANSMISSION COVER, RH (Ref. č 40) 910265 TRANSMISSION COVER, RH  1 € 50,99 € 63
SKLADOM

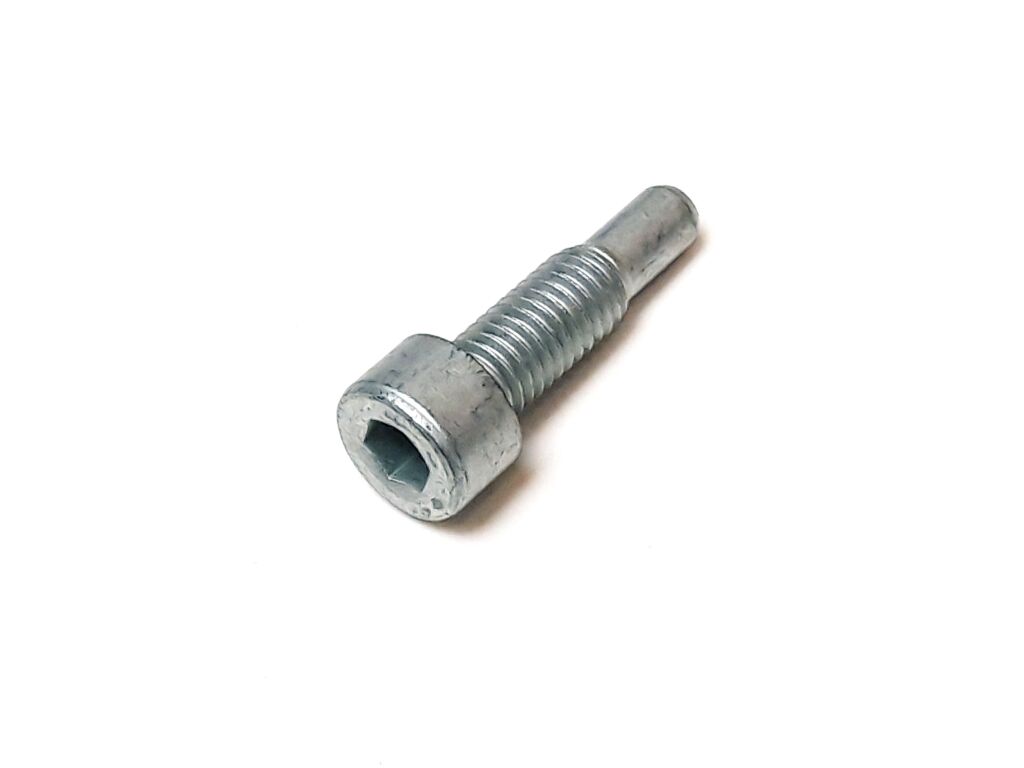

27.1 SCREW, SOCKET (Ref. č 27-1) S72202 SCREW, SOCKET  1 € 2,40 € 3
SKLADOM
27 CRANKCASE (Ref. č 27) 911108A-A CRANKCASE  1 € 788,10 € 969
SKLADOM
12 BOLT, FLANGE (Ref. č 12) S70815 BOLT, FLANGE  1 € 2,40 € 3
SKLADOM
10 WASHER (Ref. č 10) W99821 WASHER  1 € 2,40 € 3
SKLADOM
09 Bolt, Flange M8x12 (Ref. č 09) GA504SC12 Bolt, Flange M8x12  1 € 2,40 € 3
SKLADOM
08 S70822 SCREW M8*P1.25*65L  1 € 1,98 € 2
NA DOPYT
07 GASKET (Ref. č 07) 910123 GASKET  1 € 18,26 € 22
SKLADOM
06 PLAIN BEARING (Ref. č 06) 910337 PLAIN BEARING  2 € 32,07 € 39
SKLADOM
05 OIL SEAL 34x52x8 (Ref. č 05) 910563 OIL SEAL 34x52x8  1 € 15,54 € 19
SKLADOM
04 AIR DUCTING GUIDE (Ref. č 04) 911106 AIR DUCTING GUIDE  1 € 27,19 € 33
SKLADOM
02 BOLT (Ref. č 02) 910278 BOLT  12 € 3,47 € 4
SKLADOM
01.1 HEAT INSULATION (Ref. č 01-1) 910640 HEAT INSULATION  1 € 6,12 € 8
SKLADOM
13 POSITION SCREW (Ref. č 13) 910475 POSITION SCREW  2 € 1,98 € 2
SKLADOM

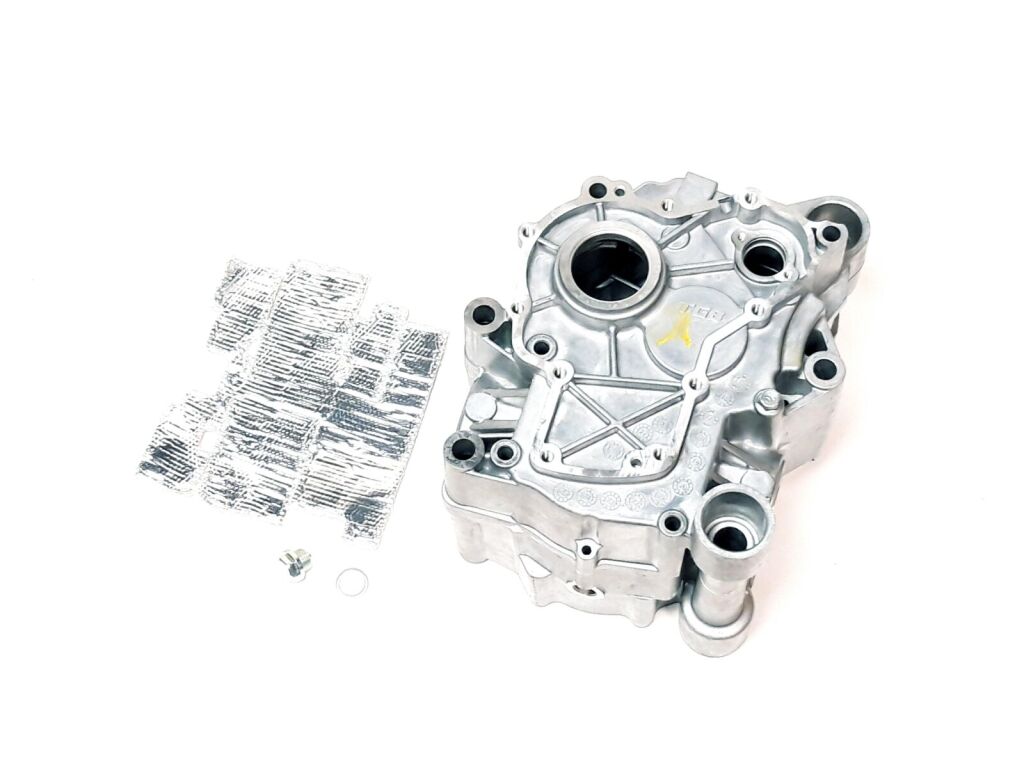

14 CRANKCASE COVER, LH(INCLUDING HEAT INSULATION/ BOLT/ WASHER) (Ref. č 14) 911487A CRANKCASE COVER, LH(INCLUDING HEAT INSULATION/ BOLT/ WASHER)  1 € 334,30 € 411
SKLADOM
26 GASKET (Ref. č 26) 910674 GASKET  1 € 39,75 € 49
SKLADOM
25 PLAIN BEARING (Ref. č 25) 910250 PLAIN BEARING  4 € 16,69 € 21
NA DOPYT
24 BOLT, FLANGE 6X25 (Ref. č 24) S24605 BOLT, FLANGE 6X25  2 € 2,40 € 3
SKLADOM
23 BOLT, FLANGE (Ref. č 23) S24621 BOLT, FLANGE  13 € 2,40 € 3
SKLADOM
21 BOLT,FLANGE 8*25 (Ref. č 21) S20830 BOLT,FLANGE 8*25  4 € 3,31 € 4
SKLADOM
20 GASKET (Ref. č 20) 911115 GASKET  1 € 21,98 € 27
SKLADOM

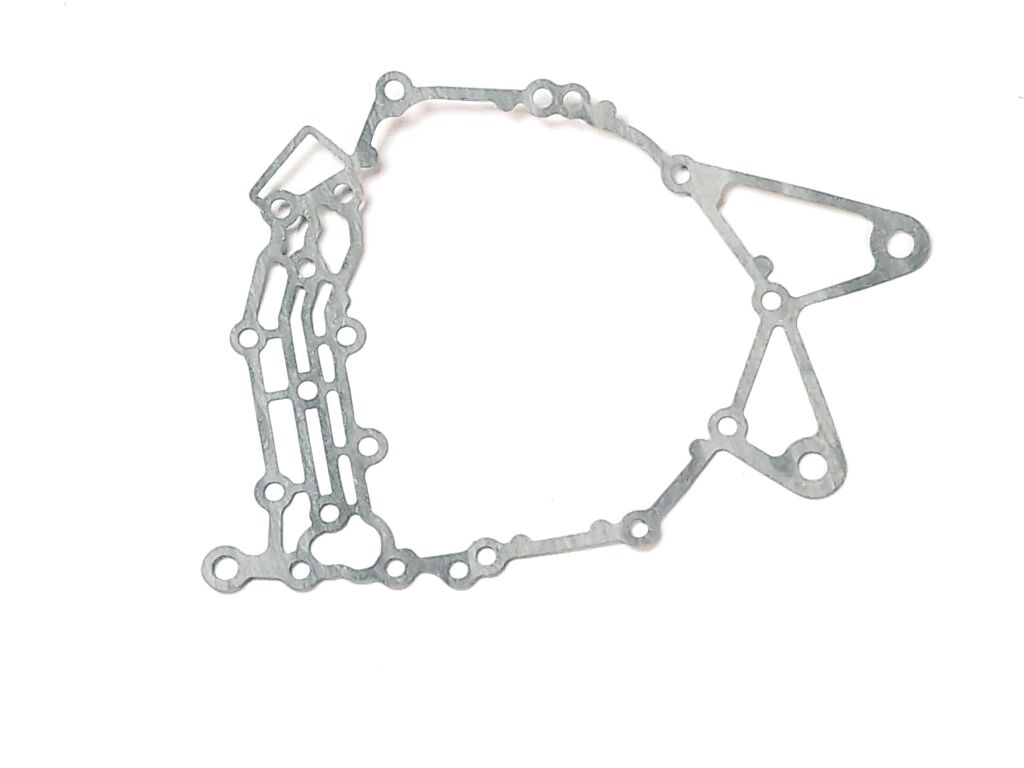

19 GASKET (Ref. č 19) 911486 GASKET  1 € 37,27 € 46
SKLADOM
18 SPACER (Ref. č 18) 910524 SPACER  1 € 7,69 € 9
SKLADOM
17 PIN, DOWEL (NR 8*14L) (Ref. č 17) P30802 PIN, DOWEL (NR 8*14L)  10 € 1,98 € 2
SKLADOM
14.1 910558 HEAT INSULATION  1 € 15,21 € 19
NA DOPYT
01 CVT COVER COMP. (Ref. č 01) 910666A CVT COVER COMP.  1 € 85,45 € 105
SKLADOM
Kód produktu TGB_1_105_EST-JJ
typ rozkresu: ENGINE PARTS
ZNACKA: TGB
TYP: BLADE 1000LTX
MODEL: BLADE 1000LTX MAX E5
