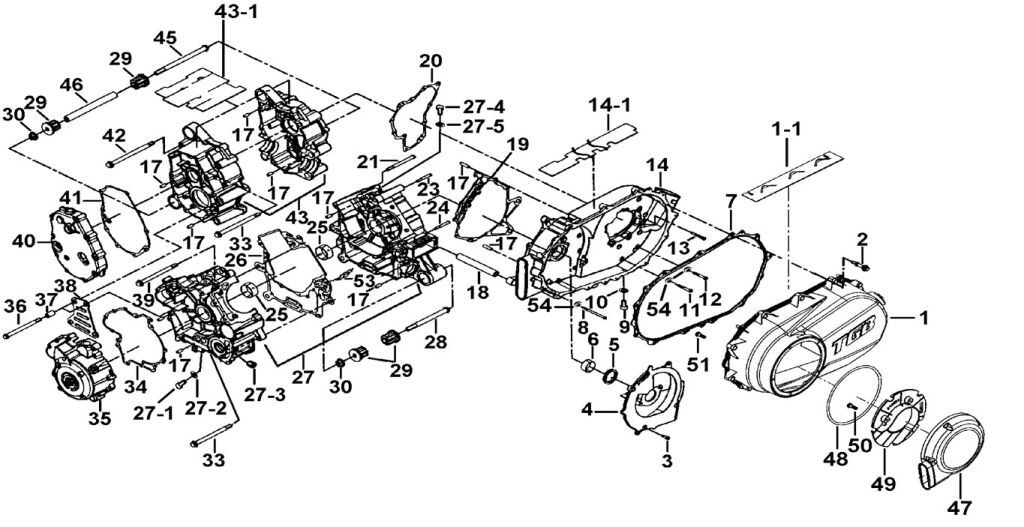

CRANKCASE

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_1_105_EST-E2
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
54 WASHER, SPRING M6 (Ref. č 54) GA504WS04 WASHER, SPRING M6  27 € 2,40 € 3
SKLADOM
37 P40501 PIN, DOWEL  4 € 2,81 € 3
NA DOPYT
36 S20219 BOLT, FLANGE  4 € 8,84 € 11
NA DOPYT
35 COVER , CRANKCASE RH (Ref. č 35) 910051 COVER , CRANKCASE RH  1 € 105,04 € 129
SKLADOM
34 GASKET (Ref. č 34) 910052 GASKET  1 € 16,45 € 20
SKLADOM
33 BOLT, FLANGE (Ref. č 33) S20057 BOLT, FLANGE  2 € 6,12 € 8
SKLADOM
30 NUT, SELF LOCK M12 (Ref. č 30) N25201 NUT, SELF LOCK M12  2 € 2,40 € 3
SKLADOM
29 BUSH (Ref. č 29) 910088 BUSH  4 € 42,56 € 52
SKLADOM
28 S20217 BOLT, FLANGE M6X25  1 € 1,98 € 2
NA DOPYT
27A R/B 911108A-A CRANKCASE (Ref. č 27A) 911108-A R/B 911108A-A CRANKCASE

101017→

1 € 467,69 € 575
NA DOPYT
27.5 WASHER (Ref. č 27-5) W99719 WASHER  1 € 1,98 € 2
SKLADOM
27.4 SCREW, HEX. SCCKET (Ref. č 27-4) S70701 SCREW, HEX. SCCKET  1 € 1,98 € 2
SKLADOM
27.3 SCREW (Ref. č 27-3) 927109 SCREW  1 € 7,52 € 9
SKLADOM
27.2 WASHER 12mm (Ref. č 27-2) W99201 WASHER 12mm

101452→

1 € 2,40 € 3
SKLADOM

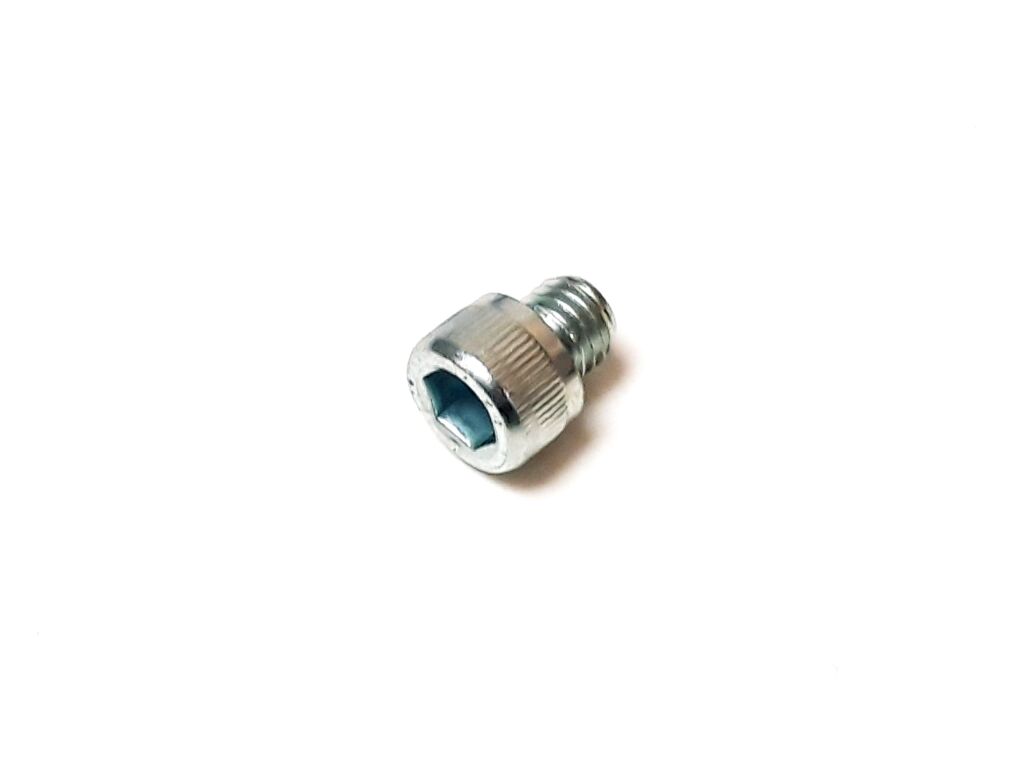

27.1A SCREW, SOCKET (Ref. č 27-1A) S72202 SCREW, SOCKET

101452→

1 € 2,40 € 3
SKLADOM
38 910479 CONNECTING PLATE  1 € 11,65 € 14
NA DOPYT
39 S20055 BOLT, FLANGE  1 € 5,12 € 6
NA DOPYT
53 STOPPER PLATE (Ref. č 53) 910669 STOPPER PLATE  1 € 3,14 € 4
NA DOPYT
51 S08601 SCREW, WASHER  5 € 1,98 € 2
NA DOPYT
50 BOLT, FLANGE M6x16 (Ref. č 50) S24603 BOLT, FLANGE M6x16  3 € 2,40 € 3
SKLADOM
49 AIR DEFLECTOR (Ref. č 49) 910591 AIR DEFLECTOR

001367→

1 € 13,88 € 17
NA DOPYT
48 O RING (Ref. č 48) 910673 O RING

001367→

1 € 5,37 € 7
SKLADOM
47 CAP (Ref. č 47) 910667 CAP

001367→

1 € 57,36 € 71
SKLADOM
46 SPACER (Ref. č 46) 910476 SPACER  1 € 7,36 € 9
SKLADOM
45 SHAFT, FRONT WHEEL 12X227 (Ref. č 45) S20203 SHAFT, FRONT WHEEL 12X227  1 € 16,53 € 20
SKLADOM
43A 911332A TRANSMISSION HOUSING

101017→

1 € 280,91 € 346
NA DOPYT
43.1 HEAT INSULATION (Ref. č 43-1) 911323 HEAT INSULATION  1 € 17,93 € 22
NA CESTE
43 TRANSMISSION HOUSING (unavailable) (Ref. č 43) 910659A TRANSMISSION HOUSING (unavailable)

←101016

1
NA DOPYT
Detail
42 BOLT, FLANGE (Ref. č 42) S20056 BOLT, FLANGE  1 € 5,54 € 7
SKLADOM
41 GASKET (Ref. č 41) 910478 GASKET  1 € 16,78 € 21
SKLADOM ZA 19 dní
40 TRANSMISSION COVER, RH (Ref. č 40) 910265 TRANSMISSION COVER, RH  1 € 50,99 € 63
SKLADOM
27.1 S17201 BOLT, FLANGE

←101451

1 € 1,98 € 2
NA DOPYT
27 CRANKCASE (Ref. č 27) 910310 CRANKCASE

←101016

1 € 427,77 € 526
SKLADOM
26 GASKET (Ref. č 26) 910674 GASKET  1 € 39,75 € 49
SKLADOM
11A BOLT, FLANGE (Ref. č 11A) S70815 BOLT, FLANGE

101017→

25 € 2,40 € 3
SKLADOM
11 BOLT,FLANGE 6X35 (Ref. č 11) S24615 BOLT,FLANGE 6X35

←101016

25 € 4,79 € 6
SKLADOM
10 WASHER (Ref. č 10) W99821 WASHER  1 € 2,40 € 3
SKLADOM
09 Bolt, Flange M8x12 (Ref. č 09) GA504SC12 Bolt, Flange M8x12  1 € 2,40 € 3
SKLADOM
08A S70822 SCREW M8*P1.25*65L

101017→

1 € 1,98 € 2
NA DOPYT
08 S24612 BOLT,FLANGE 6X65

←101016

1 € 5,37 € 7
NA DOPYT
07 GASKET (Ref. č 07) 910123 GASKET  1 € 18,26 € 22
SKLADOM
06 PLAIN BEARING (Ref. č 06) 910337 PLAIN BEARING  2 € 32,07 € 39
SKLADOM
05 OIL SEAL 34x52x8 (Ref. č 05) 910563 OIL SEAL 34x52x8  1 € 15,54 € 19
SKLADOM
04 AIR DUCTING GUIDE (Ref. č 04) 911106 AIR DUCTING GUIDE  1 € 27,19 € 33
SKLADOM
02 BOLT (Ref. č 02) 910278 BOLT  12 € 3,47 € 4
SKLADOM
01A CVT COVER COMP. (Ref. č 01A) 910666A CVT COVER COMP.

001367→

1 € 85,45 € 105
SKLADOM
01.1 HEAT INSULATION (Ref. č 01-1) 910640 HEAT INSULATION  1 € 6,12 € 8
SKLADOM
12 S70617 SCREW,SOCKET HEAD

←101016

1 € 2,15 € 3
NA DOPYT
25 PLAIN BEARING (Ref. č 25) 910250 PLAIN BEARING  4 € 16,69 € 21
NA DOPYT
24 BOLT, FLANGE 6X25 (Ref. č 24) S24605 BOLT, FLANGE 6X25  2 € 2,40 € 3
SKLADOM
23 BOLT, FLANGE (Ref. č 23) S24621 BOLT, FLANGE  13 € 2,40 € 3
SKLADOM
21 BOLT,FLANGE 8*25 (Ref. č 21) S20830 BOLT,FLANGE 8*25  4 € 3,31 € 4
SKLADOM
20A GASKET (Ref. č 20A) 911115 GASKET

101017→

1 € 21,98 € 27
SKLADOM
20 GASKET (Ref. č 20) 910576 GASKET

←101016

1 € 52,98 € 65
SKLADOM
19A R/B 910480 GASKET (Ref. č 19A) 911116 R/B 910480 GASKET

101017→

1 € 29,26 € 36
NA DOPYT
19 GASKET (Ref. č 19) 910480 GASKET

←101016

1 € 28,43 € 35
SKLADOM
18 SPACER (Ref. č 18) 910524 SPACER  1 € 7,69 € 9
SKLADOM
17 PIN, DOWEL (NR 8*14L) (Ref. č 17) P30802 PIN, DOWEL (NR 8*14L)  10 € 1,98 € 2
SKLADOM
14A CRANKCASE COVER, LH (Ref. č 14A) 911107A CRANKCASE COVER, LH

101017→

1 € 241,74 € 297
SKLADOM
14.1 910558 HEAT INSULATION  1 € 15,21 € 19
NA DOPYT
14 CRANKCASE COVER, LH (Ref. č 14) 910111A CRANKCASE COVER, LH

←101016

1 € 229,67 € 282
SKLADOM
13 POSITION SCREW (Ref. č 13) 910475 POSITION SCREW  2 € 1,98 € 2
SKLADOM
01 CVT COVER (Ref. č 01) 910112-M CVT COVER

←001366

1 € 72,31 € 89
NA DOPYT
Kód produktu TGB_1_105_EST-E2
typ rozkresu: ENGINE PARTS
MODEL: BLADE 1000LT E2
ZNACKA: TGB
TYP: BLADE 1000
