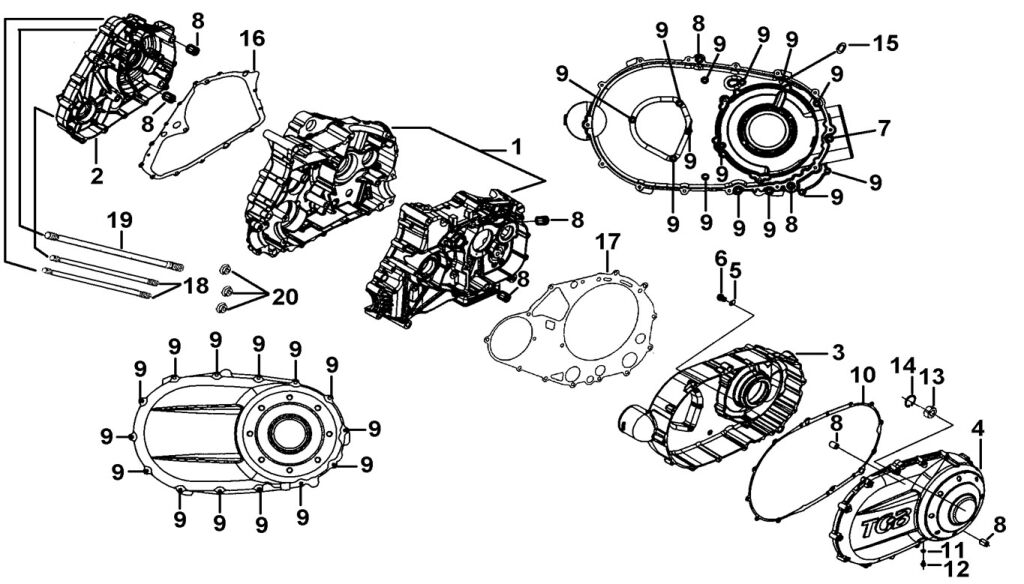

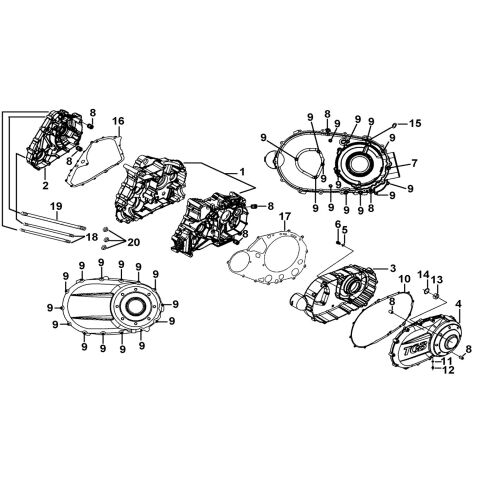

CRANKCASE

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 CRANKCASE (Ref. č 01) 924044 CRANKCASE  1 € 332,56 € 402,40
SKLADOM
12 Bolt, Flange M8x12 (Ref. č 12) GA504SC12 Bolt, Flange M8x12  1 € 2,40 € 2,90
SKLADOM
13 Bearing (Ref. č 13) 924166 Bearing  1 € 10,66 € 12,90
NA DOPYT
14 “C” RING (Ref. č 14) R01901 “C” RING  1 € 2,40 € 2,90
SKLADOM
15 WASHER (Ref. č 15) 925115 WASHER  1 € 2,40 € 2,90
SKLADOM
16 GASKET (Ref. č 16) 924055 GASKET  1 € 17,19 € 20,80
SKLADOM
17 GASKET (Ref. č 17) 924808 GASKET  1 € 20,83 € 25,20
SKLADOM
18 BOLT, FLANGE (Ref. č 18) S20020 BOLT, FLANGE  2 € 5,45 € 6,60
SKLADOM
19 BOLT, FLANGE (Ref. č 19) S20011 BOLT, FLANGE  1 € 8,18 € 9,90
NA DOPYT
11 WASHER (Ref. č 11) W99821 WASHER  1 € 2,40 € 2,90
SKLADOM
10 GASKET, CLUTCH COVER (Ref. č 10) 924051 GASKET, CLUTCH COVER  1 € 16,86 € 20,40
SKLADOM
02 924054 COVER , CRANKCASE LH  1 € 174,55 € 211,20
NA DOPYT
03 COVER , CRANKCASE RH (Ref. č 03) 924049 COVER , CRANKCASE RH  1 € 97,11 € 117,50
SKLADOM

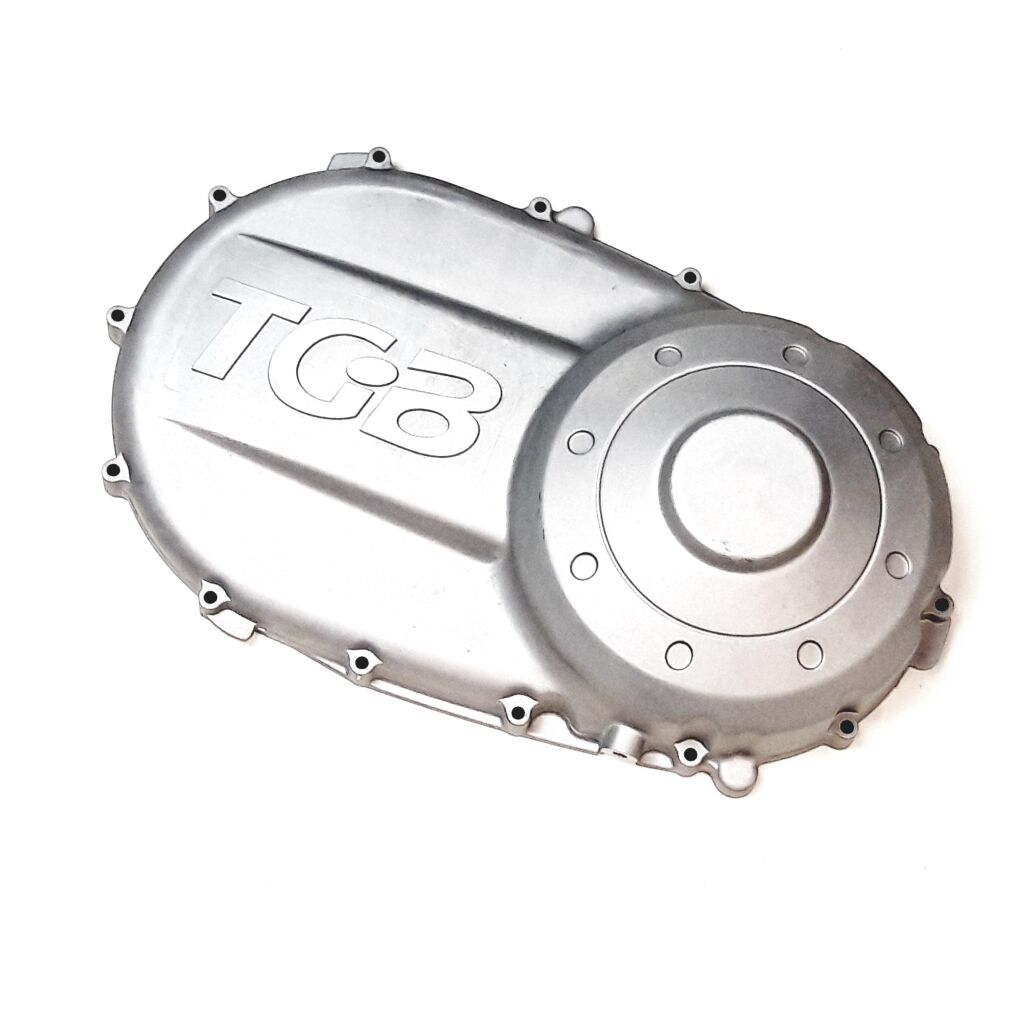

04 CLUTCH COVER (Ref. č 04) 924052 CLUTCH COVER  1 € 69,67 € 84,30
SKLADOM
05 CHUCK, BEARING (Ref. č 05) 924185 CHUCK, BEARING  2 € 2,40 € 2,90
SKLADOM
06 SCREW (Ref. č 06) S46601 SCREW  2 € 2,40 € 2,90
SKLADOM
07 BOLT, FLANGEM6X74L (Ref. č 07) S24627 BOLT, FLANGEM6X74L  1 € 2,40 € 2,90
SKLADOM
08 PIN, DOWEL (Ref. č 08) P40301 PIN, DOWEL  6 € 2,40 € 2,90
SKLADOM
09 BOLT, FLANGE 6x40 (Ref. č 09) S24610 BOLT, FLANGE 6x40  28 € 2,40 € 2,90
SKLADOM
20 NUT, SELF LOCK (Ref. č 20) GA551NT01 NUT, SELF LOCK  3 € 2,40 € 2,90
SKLADOM
