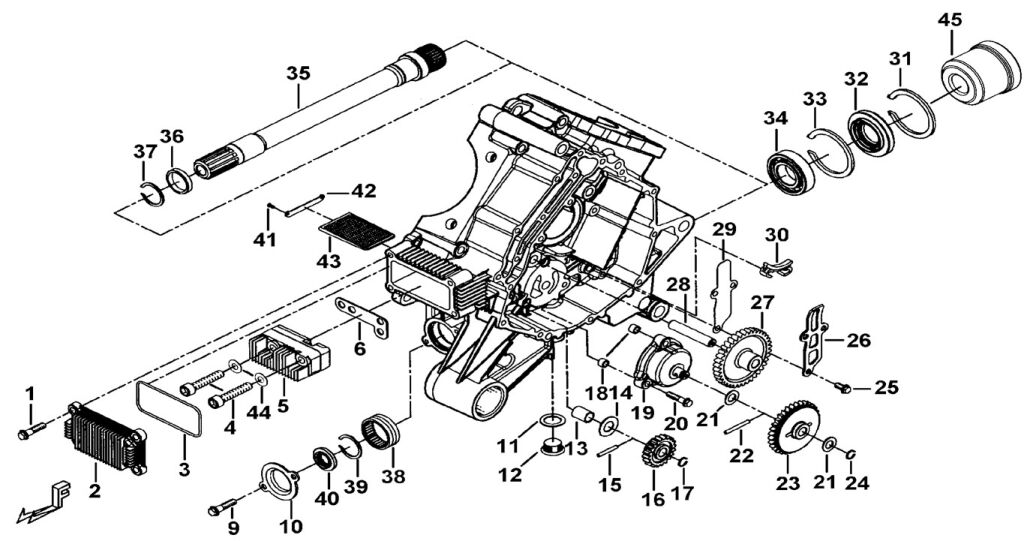

CRANKCASE LH.

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 SCREW, SOCKET HEAD M6x20 (Ref. č 01) S24616 SCREW, SOCKET HEAD M6x20  4 € 4,79 € 6
SKLADOM
24 "C" RING (Ref. č 24) 924149 "C" RING  1 € 2,40 € 3
SKLADOM
25 BOLT, FLANGE 6X12 (Ref. č 25) S24604 BOLT, FLANGE 6X12  3 € 2,40 € 3
SKLADOM
27 IDEAL GEAR (Ref. č 27) 910021 IDEAL GEAR  1 € 33,64 € 41
SKLADOM
29 VALVE PLATE (Ref. č 29) 910072 VALVE PLATE  1 € 4,13 € 5
SKLADOM
30 CHAIN GUIDE, LH (Ref. č 30) 910078 CHAIN GUIDE, LH  1 € 3,22 € 4
SKLADOM
31 C CLIP (Ref. č 31) R01101 C CLIP  1 € 4,21 € 5
SKLADOM
32 OIL SEAL (Ref. č 32) 910494 OIL SEAL  1 € 16,61 € 20
SKLADOM
34 BALL BEARING (Ref. č 34) 910066 BALL BEARING  1 € 17,52 € 22
SKLADOM
35 TRANSMISSION SHAFT (Ref. č 35) 910495 TRANSMISSION SHAFT  1 € 185,12 € 228
SKLADOM
37 “C” CLIP, REVERSE GEAR (Ref. č 37) R00206 “C” CLIP, REVERSE GEAR  1 € 2,40 € 3
SKLADOM
38 NEEDLE BEARING (Ref. č 38) 910118 NEEDLE BEARING  1 € 41,49 € 51
SKLADOM
39 "C" CLIP (Ref. č 39) R01602 "C" CLIP  1 € 2,15 € 3
SKLADOM
40 OIL SEAL (Ref. č 40) 910117 OIL SEAL  1 € 2,40 € 3
SKLADOM
44 WASHER (Ref. č 44) W99810 WASHER  2 € 2,40 € 3
SKLADOM
23 OIL PUMP GEAR (Ref. č 23) 910320 OIL PUMP GEAR  1 € 47,60 € 59
SKLADOM
22 PIN, DOWEL (Ref. č 22) 910634 PIN, DOWEL  1 € 2,40 € 3
SKLADOM
02 CAP, OIL RADIATOR (Ref. č 02) 910316 CAP, OIL RADIATOR  1 € 17,52 € 22
SKLADOM
03 O-RING (Ref. č 03) 910317 O-RING  1 € 2,40 € 3
NA DOPYT
05 OIL RADIATOR (Ref. č 05) 911089 OIL RADIATOR  1 € 47,44 € 58
SKLADOM
06 OIL GASKET (Ref. č 06) 910496 OIL GASKET  1 € 3,64 € 4
SKLADOM
12 SCREW (Ref. č 12) 924339 SCREW  1 € 5,79 € 7
SKLADOM
13 BUSHING (Ref. č 13) 910664 BUSHING  1 € 25,37 € 31
SKLADOM
14 WASHER (Ref. č 14) W99218 WASHER  1 € 2,40 € 3
SKLADOM
15 PIN (Ref. č 15) P30406 PIN  1 € 2,40 € 3
SKLADOM
16 WATER PUMP GEAR (Ref. č 16) 910023 WATER PUMP GEAR  1 € 33,64 € 41
SKLADOM
17 "C" RING (Ref. č 17) R00703 "C" RING  1 € 2,40 € 3
SKLADOM
18 PIN, DOWEL 6,5X9X10 (Ref. č 18) GA504PN02 PIN, DOWEL 6,5X9X10  2 € 2,40 € 3
SKLADOM
19 OIL PUMP (Ref. č 19) 910333 OIL PUMP  1 € 44,05 € 54
SKLADOM
20 BOLT, FLANGE 6X25 (Ref. č 20) S24605 BOLT, FLANGE 6X25  3 € 2,40 € 3
SKLADOM
21 WASHER, DRIVEN GEAR (Ref. č 21) 924147 WASHER, DRIVEN GEAR  2 € 2,40 € 3
SKLADOM
45 SHAFT BOOT (Ref. č 45) 911027 SHAFT BOOT  1 € 3,55 € 4
SKLADOM
Kód produktu TGB_1_107_ETT
typ rozkresu: ENGINE PARTS
MODEL: BLADE 1000LT T3b
ZNACKA: TGB
TYP: BLADE 1000
