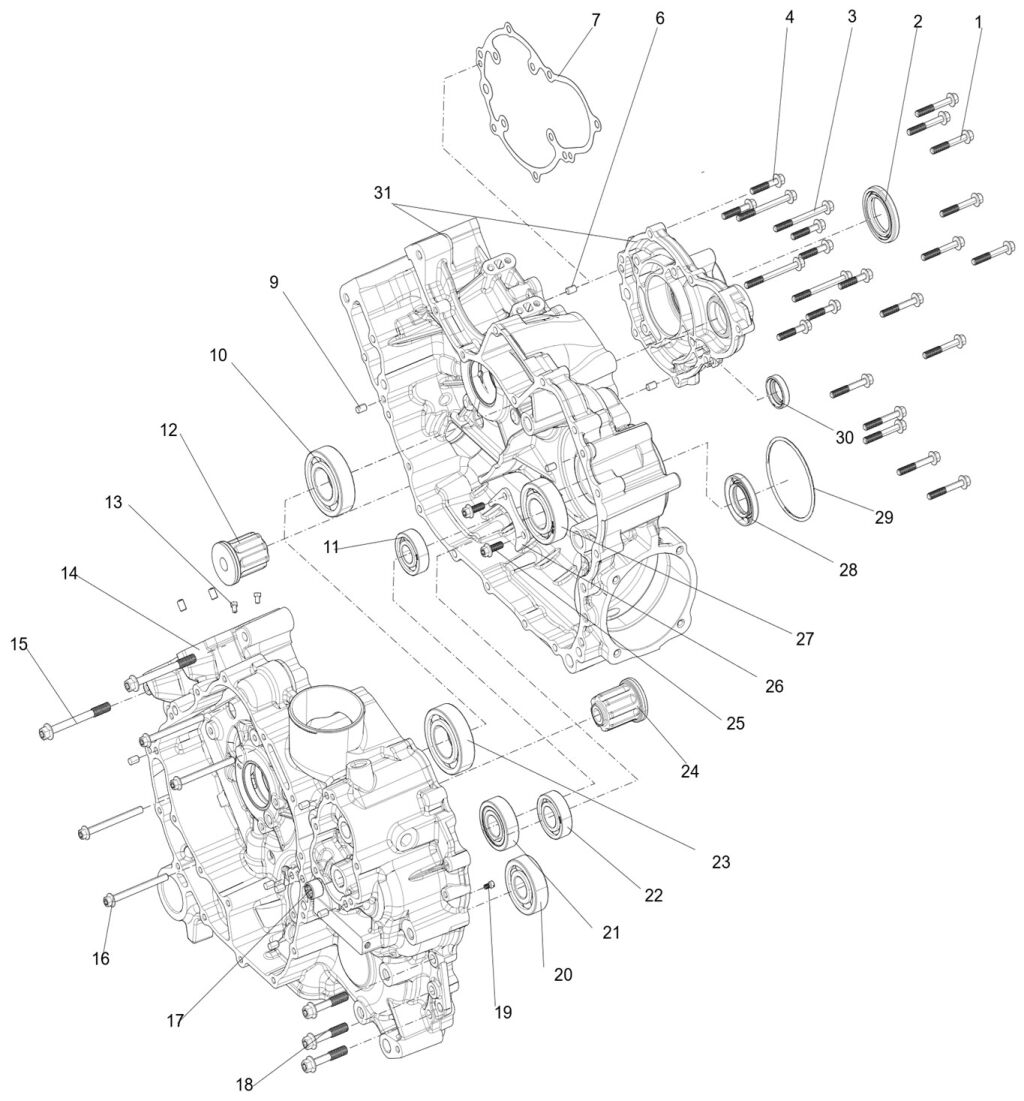

CRANKCASE ASSY.

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_105_UT6
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

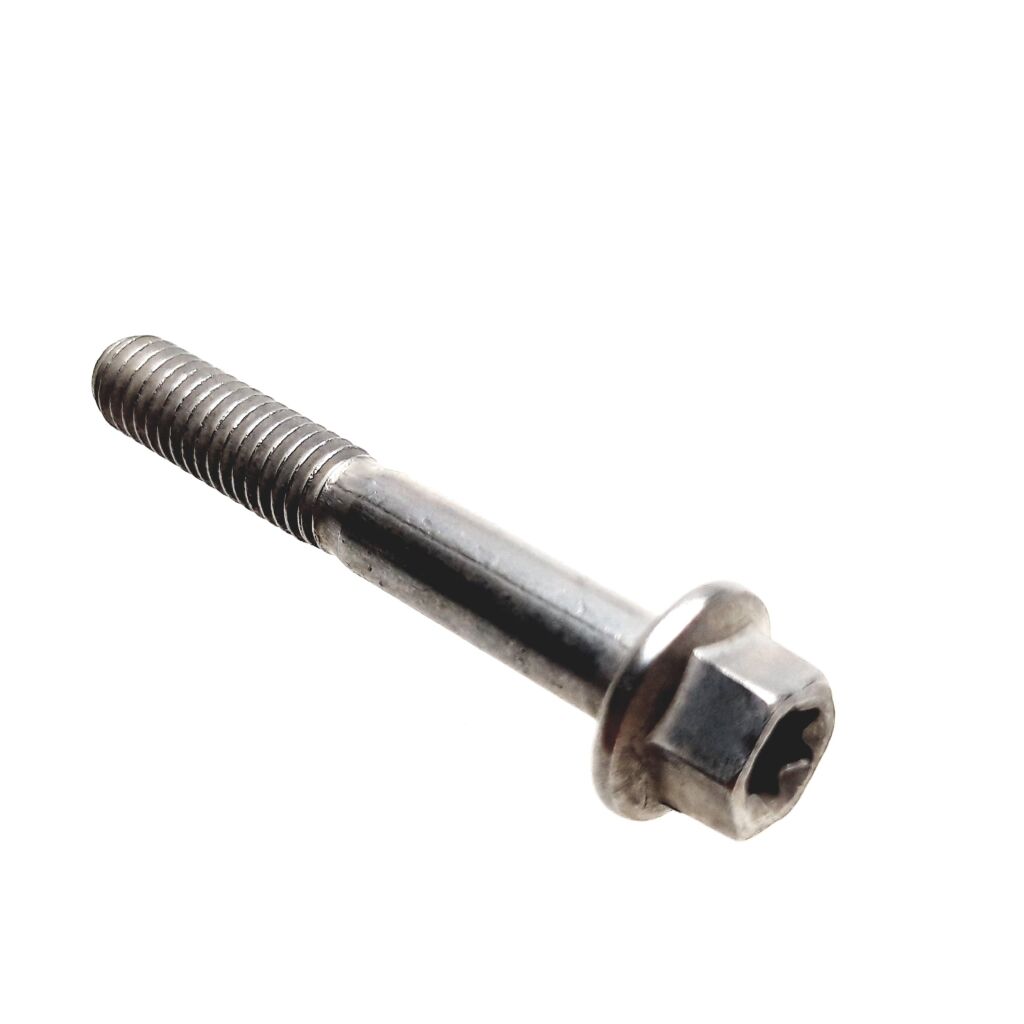

1 BOLT M6×40 (Ref. č 1) F01000008001 BOLT M6×40  13 € 2,48 € 3
NA DOPYT
19 FLOW ORIFICE ∅1 (Ref. č 19) F01C10004001 FLOW ORIFICE ∅1  1 € 2,48 € 3
SKLADOM
20 BEARING 6304 (Ref. č 20) GBT000276011 BEARING 6304  1 € 15,54 € 19
SKLADOM
21 BEARING 6204Z (Ref. č 21) GBT000276007 BEARING 6204Z  1 € 12,98 € 16
SKLADOM
22 BEARING 6004 (Ref. č 22) GBT000276003 BEARING 6004  1 € 10,33 € 13
SKLADOM
23 BEARING 6206 (Ref. č 23) GBT000276009 BEARING 6206  1 € 32,07 € 39
SKLADOM
24 BUFFER SLEEVE (Ref. č 24) A02A10100001 BUFFER SLEEVE  1 € 14,63 € 18
NA DOPYT
25 BOLT M6×16 (Ref. č 25) F01000002001 BOLT M6×16  2 € 2,48 € 3
SKLADOM
26 BEARING PLATE (Ref. č 26) F01C10002001 BEARING PLATE  1 € 2,48 € 3
SKLADOM
27 BEARING 62/28 P5C3 (Ref. č 27) BG002760-62280-001 BEARING 62/28 P5C3  1 € 10,83 € 13
SKLADOM
28 OIL SEAL 28x47x7 (Ref. č 28) E01-C102010-000-01 OIL SEAL 28x47x7  1 € 2,89 € 4
SKLADOM
29 O RING 73×3.0 (Ref. č 29) E01-C102020-000-01 O RING 73×3.0  1 € 2,40 € 3
SKLADOM
30 Oil seal 20×30×7 (Ref. č 30) F01C20202001 Oil seal 20×30×7  1 € 5,04 € 6
SKLADOM
18 BOLT M8×40 (Ref. č 18) F01000017001 BOLT M8×40  3 € 2,48 € 3
SKLADOM
17 NEEDLE ROLLER BEARING HK121612 (Ref. č 17) GBT012764001 NEEDLE ROLLER BEARING HK121612  1 € 2,48 € 3
SKLADOM
16 BOLT M6×65 (Ref. č 16) F01000011001 BOLT M6×65  4 € 2,48 € 3
SKLADOM
2 Oil seal 35×52×7 (Ref. č 2) F01C20203001 Oil seal 35×52×7  1 € 7,52 € 9
SKLADOM
3 BOLT M6×60 (Ref. č 3) F01000010001 BOLT M6×60  4 € 2,48 € 3
SKLADOM
4 BOLT M6×30 (Ref. č 4) F01000006001 BOLT M6×30  7 € 2,48 € 3
SKLADOM
6 DOWEL PIN 6×10 (Ref. č 6) GBT001192001 DOWEL PIN 6×10  2 € 2,48 € 3
SKLADOM
7 RIGHT CRANKCASE COVER GASKET (Ref. č 7) E01-C202001-000-01 RIGHT CRANKCASE COVER GASKET  1 € 2,40 € 3
SKLADOM
11 BEARING 6203 (Ref. č 11) GBT000276006 BEARING 6203  1 € 9,09 € 11
SKLADOM
13 PISTON INJECTION HOLE PLUG (Ref. č 13) F01C10005001 PISTON INJECTION HOLE PLUG  2 € 2,48 € 3
SKLADOM
14 E01-C101100-000-02 LEFT CRANKCASE (unavailable)  1
SKLADOM
15 BOLT M8×70 (Ref. č 15) F01000018001 BOLT M8×70  2 € 2,48 € 3
SKLADOM

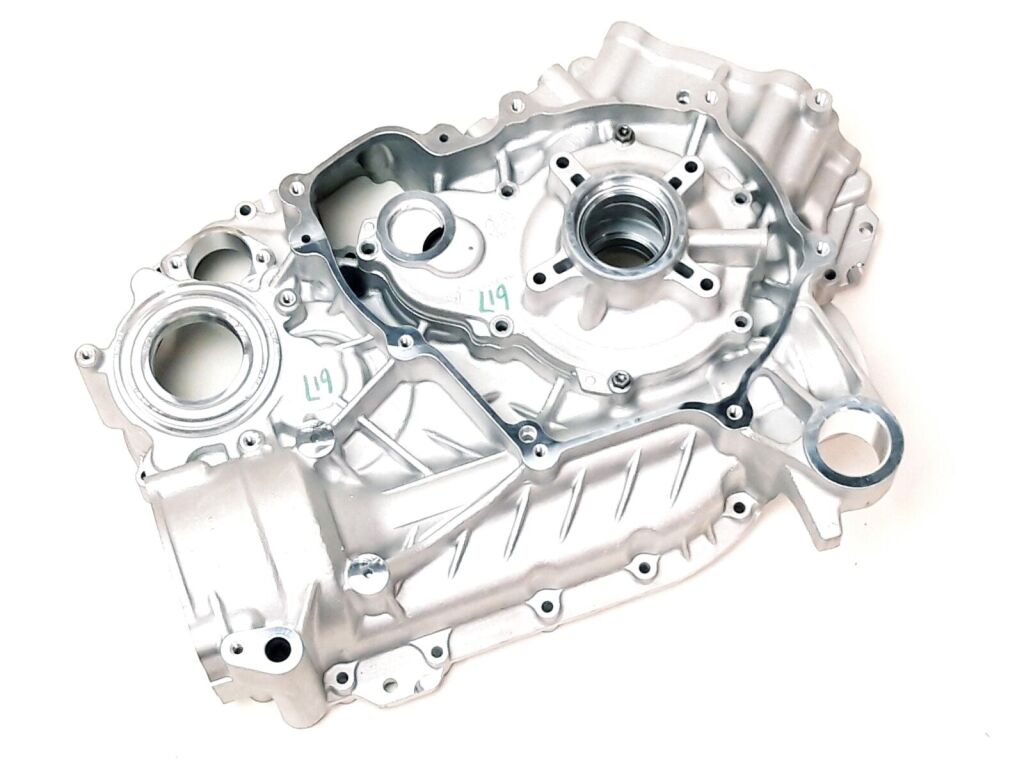

31 R/B E01-C102100-000-01 + E01-C202100-000-01 RIGHT CRANKCASE ASSY (Ref. č 31) E01-C103100-000-01 R/B E01-C102100-000-01 + E01-C202100-000-01 RIGHT CRANKCASE ASSY  1 € 182,40 € 224
SKLADOM
Kód produktu SEGWAY_1_105_UT6
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT6
