COVER, CRANKCASE

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  ACCESS_1_104_MAX_800i_LT
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

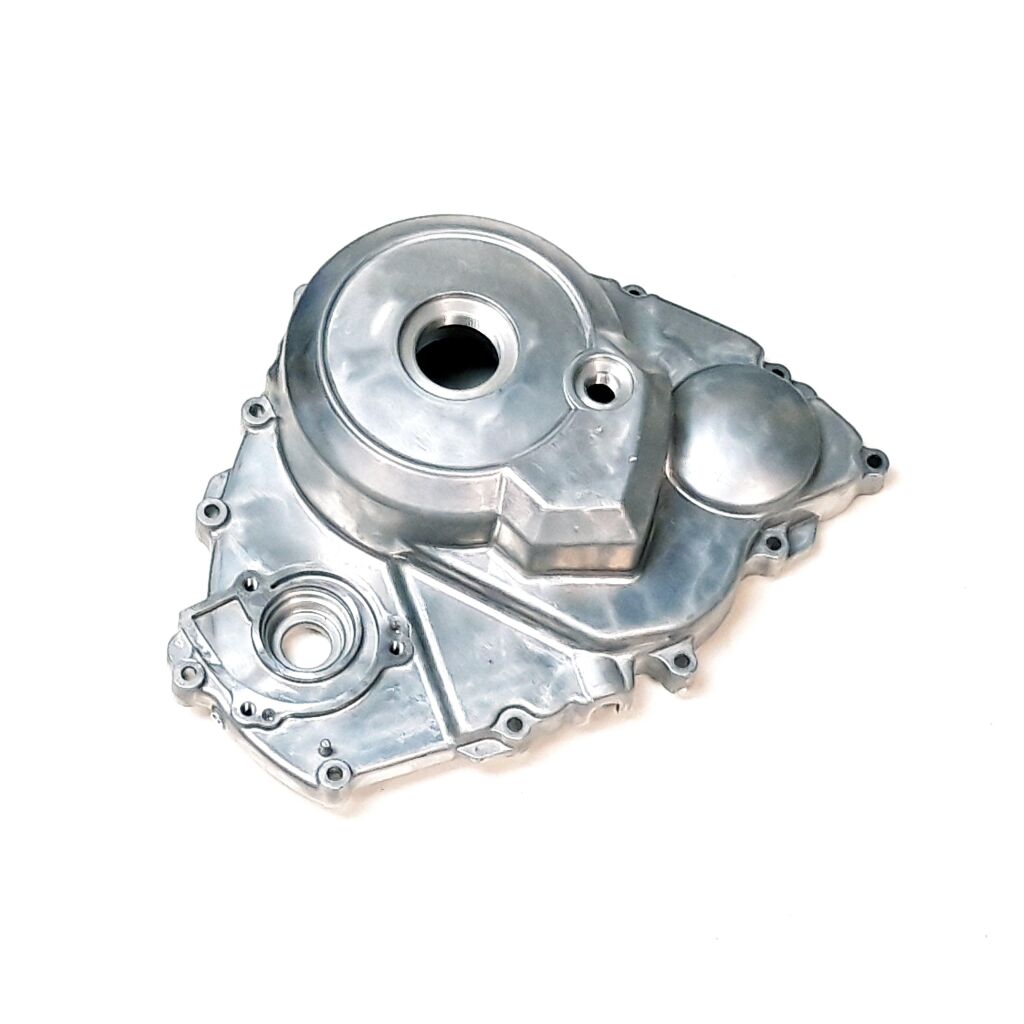

1 COVER, CRANKCASE (Ref. č 1) 11340-E20-000 COVER, CRANKCASE  1 € 119,01 € 146
SKLADOM
15 GASKET, water drain bolt (Ref. č 15) 93101-06513-12-1 GASKET, water drain bolt  1 € 2,48 € 3
SKLADOM

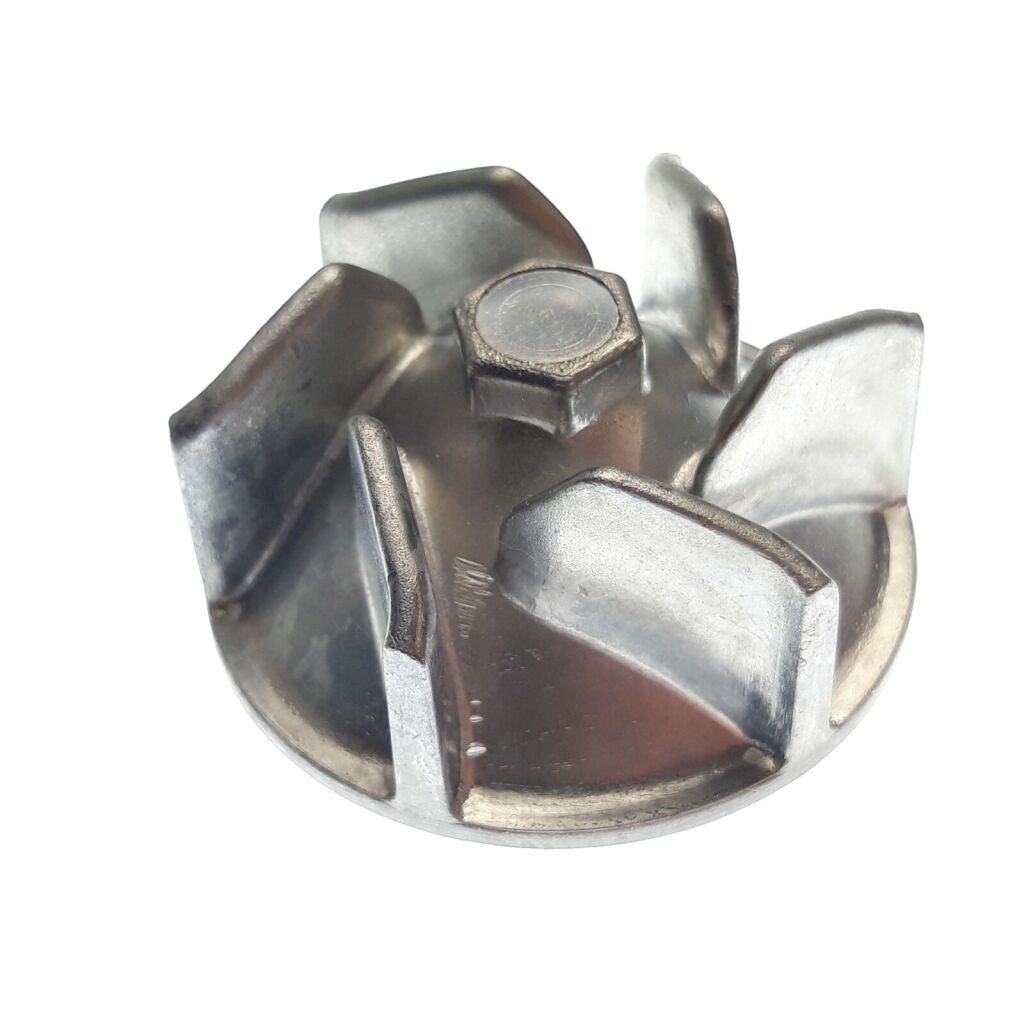

16 Fan, Water Pump (Ref. č 16) 15213-E20-000 Fan, Water Pump  1 € 5,79 € 7
NA DOPYT

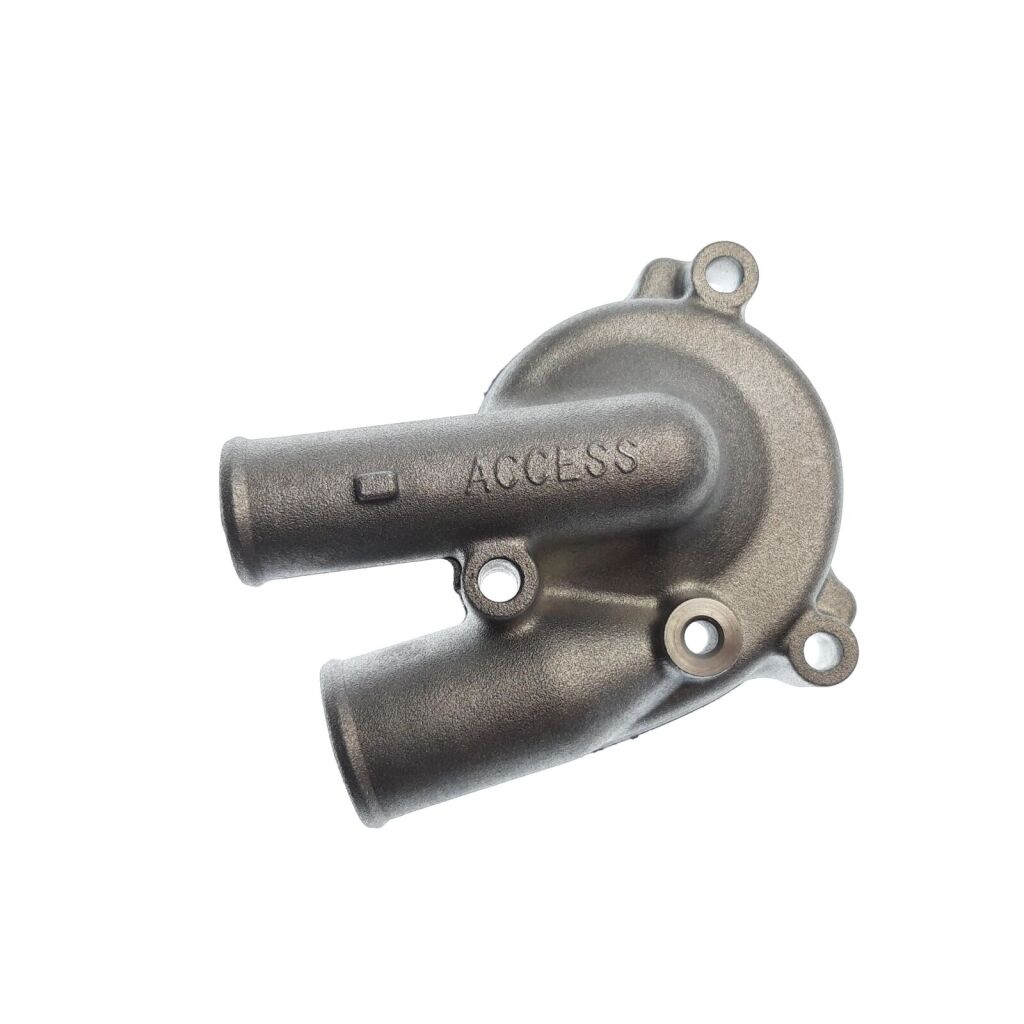

17 Cap,Water Pump (Ref. č 17) 15215-E20-000 Cap,Water Pump  1 € 18,18 € 22
NA DOPYT
18 Water Pump Shaft (Ref. č 18) 15217-E20-001 Water Pump Shaft  1 € 12,40 € 15
NA DOPYT
19 SEAL, mechanical (Ref. č 19) 15220-E12-100 SEAL, mechanical  1 € 43,14 € 53
SKLADOM

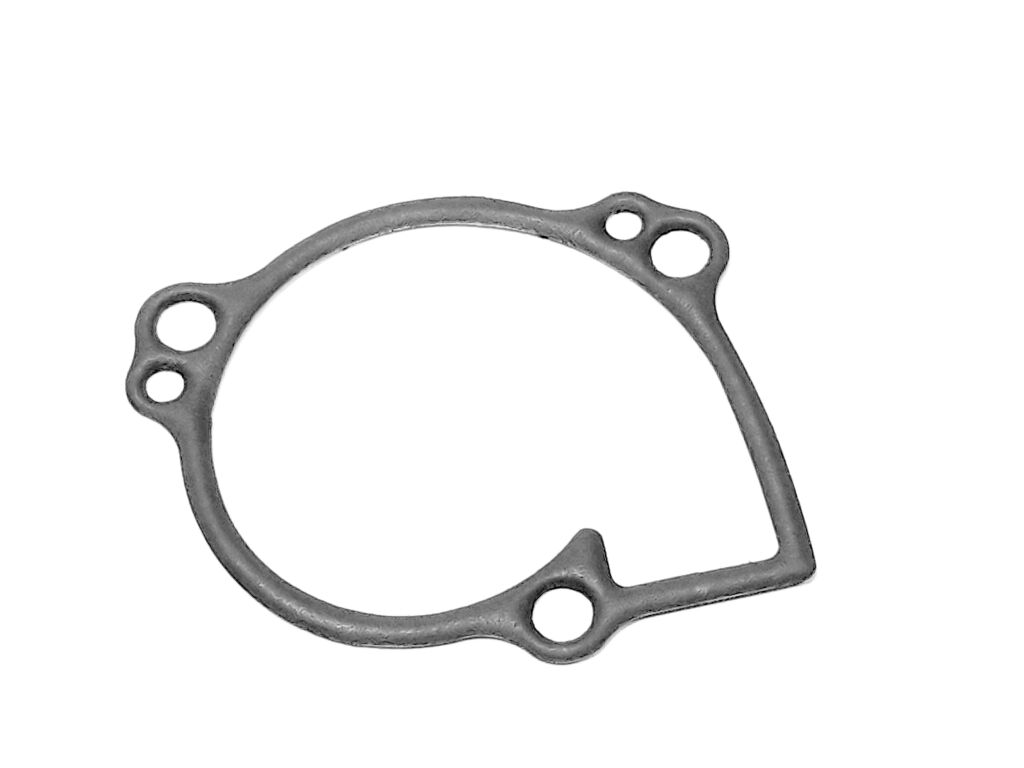

20 Gasket, Water Pump (Ref. č 20) 15218-E20-000 Gasket, Water Pump  1 € 3,31 € 4
SKLADOM ZA 1 dní
21 Bearing, Ball (Ref. č 21) 95100-T6000 Bearing, Ball  1 € 4,13 € 5
SKLADOM
22 Oil Seal (Ref. č 22) 96100-102006-1 Oil Seal  1 € 2,48 € 3
SKLADOM
23 Cir Clip (Ref. č 23) 93406-STW10 Cir Clip  1 € 2,48 € 3
SKLADOM
24 PIN, Dowel (Ref. č 24) 94002-040120 PIN, Dowel  2 € 2,48 € 3
SKLADOM
25 Hose C, Liquid(Pump-Cylinder) (Ref. č 25) 15233-A27-020 Hose C, Liquid(Pump-Cylinder)  1 € 14,88 € 18
SKLADOM
14 BOLT, water drain (Ref. č 14) 91700-06010-10Z BOLT, water drain  1 € 2,48 € 3
NA DOPYT
13 93705-TSL48200YB Strap  1 € 1,90 € 2
NA DOPYT

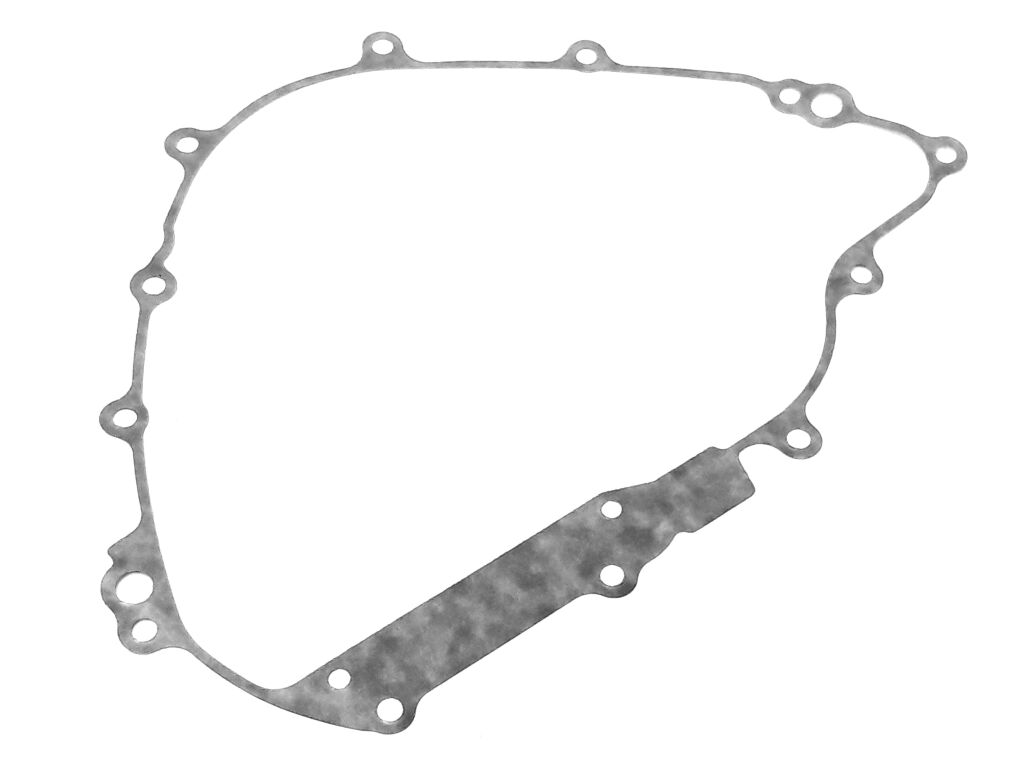

2 GASKET, Crankcase Cover (Ref. č 2) 11395-E20-000 GASKET, Crankcase Cover  1 € 10,74 € 13
SKLADOM
3 Pin, Dowel (Ref. č 3) 94001-100140 Pin, Dowel  2 € 2,48 € 3
SKLADOM
4 Oil-Ring (Ref. č 4) 96200-360030 Oil-Ring  1 € 2,48 € 3
SKLADOM
5 Screw M36 (Ref. č 5) 91841-E20-000 Screw M36  1 € 7,44 € 9
NA DOPYT
6 O-Ring (Ref. č 6) 96200-138024 O-Ring  1 € 2,48 € 3
SKLADOM
7 91840-E20-000 Bolt  1 € 7,44 € 9
NA DOPYT
8 91700-06030-08G-2 Hex. Bolt, Flange  13 € 1,90 € 2
NA DOPYT
9 11115-E12-000 Hook, Fixed Wire (unavailable)  1
NA DOPYT
Detail
10 31001-E12-000 Sheet, Magnetic Voltage  1 € 1,90 € 2
NA DOPYT

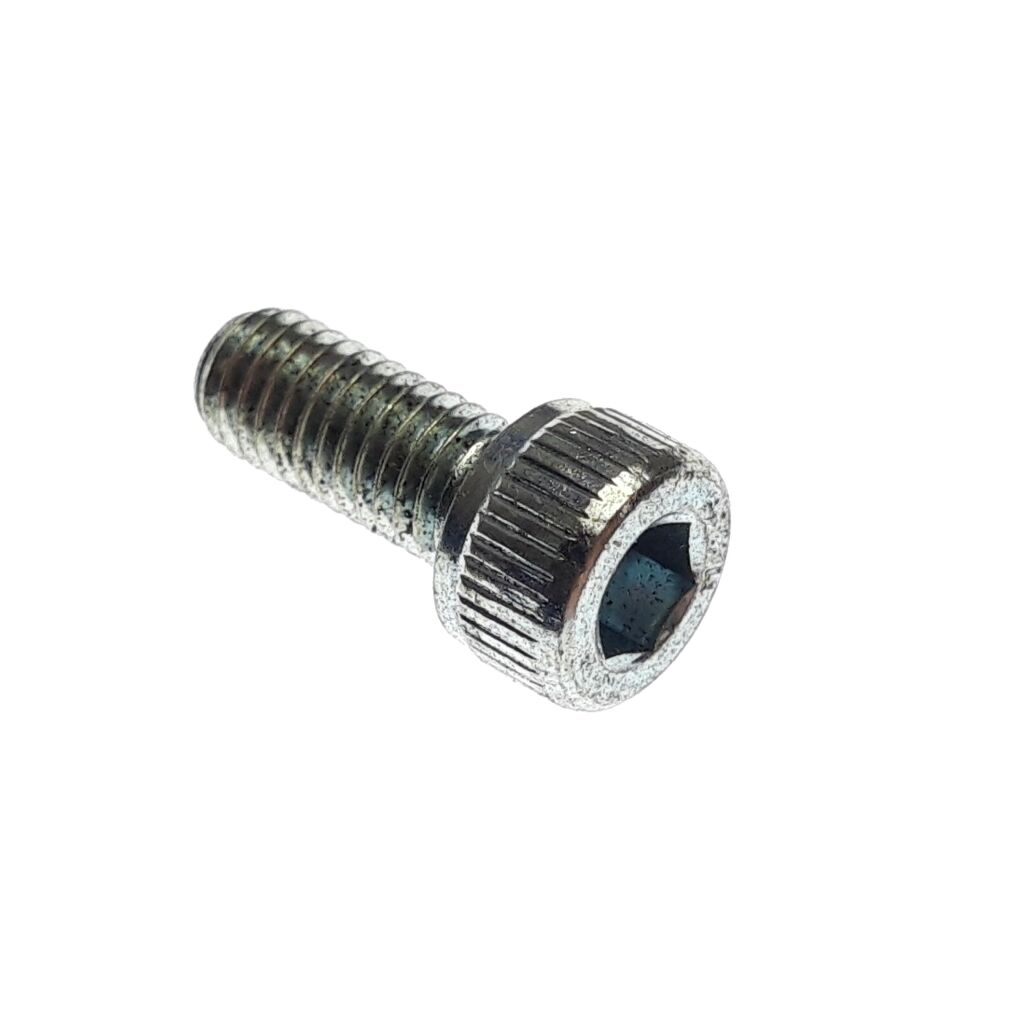

11 Hex Socket Bolt (Ref. č 11) 91760-05012-05W Hex Socket Bolt  1 € 2,48 € 3
NA DOPYT
12 91700-06050-08Z Hex. Bolt, Flange  1
NA DOPYT
Detail
26 97414-032090 Clip  1 € 2,40 € 3
NA DOPYT
Kód produktu ACCESS_1_104_MAX_800i_LT
typ rozkresu: ENGINE PARTS
ZNACKA: ACCESS
TYP: ACCESS 850LT
MODEL: SHADE 850LT E4 EPS
