Cooling system assembly

SEGWAY
Výrobca: SEGWAY
Kód produktu: SEGWAY_1_132_UTV1000
MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 RADIATOR PROTECTION NET (Ref. č 1) U09A41106001 RADIATOR PROTECTION NET  1 € 16,86 € 20,40
NA DOPYT
19 U09 ENGINE FRONT WATER INLET HOSE (Ref. č 19) U09A42006001 U09 ENGINE FRONT WATER INLET HOSE  1 € 14,92 € 18,05
SKLADOM
20 T05000070001 R/B T05000007001 38 ADHESIVE STRIP CLAMP  4 € 2,44 € 2,95
NA DOPYT
21 U09 ENGINE FRONT WATER OUTLET HOSE (Ref. č 21) U09A42001001 U09 ENGINE FRONT WATER OUTLET HOSE  1 € 16,83 € 20,37
SKLADOM
22 U09 ENGINE WATER INLET AL PIPE (Ref. č 22) U09A42005001 U09 ENGINE WATER INLET AL PIPE  1 € 21,98 € 26,59
SKLADOM
23 U09 WATER PIPE CLAMP (Ref. č 23) U09A42011001 U09 WATER PIPE CLAMP  4 € 2,44 € 2,95
SKLADOM
24 U09 ENGINE WATER OUTLET AL PIPE (Ref. č 24) U09A42004001 U09 ENGINE WATER OUTLET AL PIPE  1 € 21,98 € 26,59
SKLADOM
25 GBT008191004 SCREW M6×14  4 € 2,44 € 2,95
NA DOPYT
26 U09 ENGINE REAR WATER INLET HOSE 1 (Ref. č 26) U09A42003001 U09 ENGINE REAR WATER INLET HOSE 1  1 € 10,19 € 12,33
SKLADOM
27 S01 ENGINE RADIATOR THREE-WAY (Ref. č 27) S01A42500001 S01 ENGINE RADIATOR THREE-WAY  1 € 5,28 € 6,39
SKLADOM
29 CLAMP 20 (Ref. č 29) QCT006211015 CLAMP 20  2 € 2,44 € 2,95
SKLADOM
30 U09 ENGINE OIL COOLING PIPE (Ref. č 30) U09A42008001 U09 ENGINE OIL COOLING PIPE  1 € 4,02 € 4,87
SKLADOM
31 U09 ENGINE REAR WATER OUTLET HOSE (Ref. č 31) U09A42002001 U09 ENGINE REAR WATER OUTLET HOSE  1 € 26,11 € 31,59
SKLADOM
32 ENGINE RADIATOR ASSY(V) (Ref. č 32) U09-A400100-000-01 ENGINE RADIATOR ASSY(V)  1 € 248,35 € 300,50
SKLADOM
18 CLAMP 38 (Ref. č 18) BQ006211-03815-Z01 CLAMP 38  10 € 2,23 € 2,70
NA DOPYT
17 WATER TANK BODY (Ref. č 17) U01A43041004 WATER TANK BODY  1 € 10,33 € 12,50
SKLADOM
16 WATER TANK PLUG (Ref. č 16) U01A43043001 WATER TANK PLUG  1 € 2,44 € 2,95
SKLADOM
2 BOLT M6×10 (Ref. č 2) GBT005789005 BOLT M6×10  4 € 2,23 € 2,70
NA DOPYT
3 RADIATOR BODY V (Ref. č 3) U09-A400101-000-01 RADIATOR BODY V  1 € 171,65 € 207,70
NA DOPYT
4 MOTOR RADIATOR T-BUSHING LOWER (Ref. č 4) S01A40103001 MOTOR RADIATOR T-BUSHING LOWER  2 € 3,02 € 3,66
SKLADOM
5 CLAMP,SPRINGBAND 11 (Ref. č 5) QCT006211003 CLAMP,SPRINGBAND 11  3 € 2,84 € 3,44
SKLADOM
6 REAR AXLE SNORKEL (Ref. č 6) A02A10002001 REAR AXLE SNORKEL  1 € 24,63 € 29,80
SKLADOM
7 Bolt M6×16 (Ref. č 7) GBT005789007 Bolt M6×16  8 € 2,44 € 2,95
SKLADOM

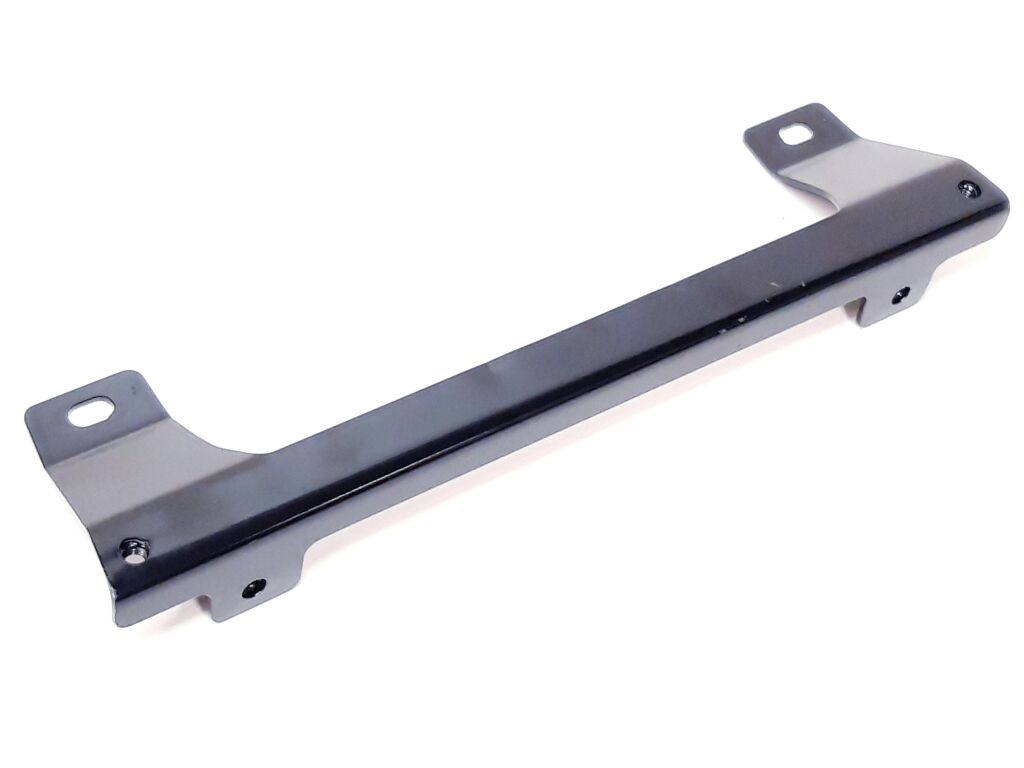

8 Radiator fixing bracket (Ref. č 8) U01-C000010-DB0-00 Radiator fixing bracket  1 € 4,13 € 5
NA DOPYT
9 HEXAGON FLANGE BOLT M6×25 (Ref. č 9) GBT005789010 HEXAGON FLANGE BOLT M6×25  3 € 2,44 € 2,95
SKLADOM
10 T BUSH V (Ref. č 10) U09A41105001 T BUSH V  2 € 2,44 € 2,95
SKLADOM
11 I-SHAPED RUBBER RING V (Ref. č 11) U09A41104001 I-SHAPED RUBBER RING V  2 € 2,44 € 2,95
SKLADOM
12 TANK LID ASSY V (Ref. č 12) A01A41110002 TANK LID ASSY V  1 € 4,25 € 5,14
SKLADOM
13 FAN MOTOR ASSY V (Ref. č 13) U09-A400102-000-01 FAN MOTOR ASSY V  1 € 72,31 € 87,50
SKLADOM
14 RADIATOR REGATIVE PRESSURE PIPE (Ref. č 14) U09A43051001 RADIATOR REGATIVE PRESSURE PIPE  1 € 2,44 € 2,95
SKLADOM
15 WATER TANK COVER (Ref. č 15) U01A43042001 WATER TANK COVER  1 € 2,44 € 2,95
SKLADOM
33 Radiator Front Baffle (Ref. č 33) U09-A400104-000-00 Radiator Front Baffle  1 € 13,97 € 16,90
NA DOPYT
