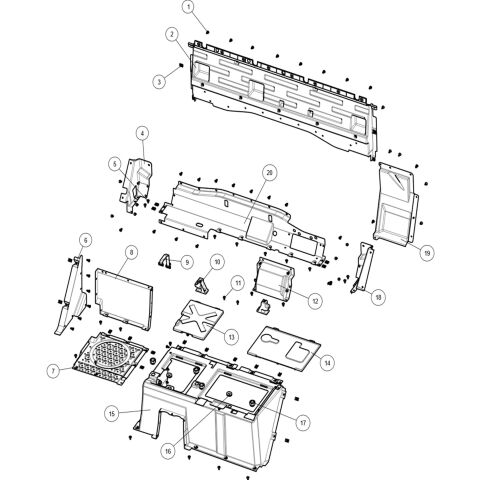

COCKPIT PANEL PARTS.

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_4_442_UT6
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 Expansion buckle component (Ref. č 1) T04000003001 Expansion buckle component  51 € 2,18 € 3
SKLADOM
8 U06-H121301-0B0-00 RIGHT REAR FENDER  1 € 8,42 € 10
NA DOPYT
10 U06-H122201-0B0-00 WIRE BRACKET  2 € 2,18 € 3
NA DOPYT
12 U06-H122001-0B0-00 ECU COVER  1 € 3,67 € 5
NA DOPYT
13 U06-H121601-0B0-00 SEAT LOWER MIDDLE COVER  1 € 5,19 € 6
NA DOPYT
14 U06-H121501-0B0-00 LEFT COVER UNDER THE SEAT  1 € 8,14 € 10
NA DOPYT
15 U06-H121401-0B0-00 SEAT LOWER PANEL  1 € 41,16 € 51
NA DOPYT
18 U06-H121701-0B0-00 LEFT INNER COVER OF TOP BEAM  1 € 3,51 € 4
NA DOPYT
19 U06-H130201-0B0-00 FUEL TANK PROTECTIVE COVER  1 € 8,67 € 11
NA DOPYT
7 U06-H121201-0B0-00 STORAGE PLATFORM  1 € 12,06 € 15
NA DOPYT
6 U06-H122101-0B0-00 RIGHT SIDE COVER LINER  1 € 4,63 € 6
NA DOPYT
3 M6 nut clip (Ref. č 3) T04000002001 M6 nut clip  27 € 2,18 € 3
SKLADOM
5 Inner hexagon screws M6×1.6 (Ref. č 5) T03000007002 Inner hexagon screws M6×1.6  29 € 2,18 € 3
SKLADOM
9 S01H20200001 BATTERY FIXING BELT  1 € 2,89 € 4
NA DOPYT
11 Bolt M6×16 (Ref. č 11) GBT005789007 Bolt M6×16  2 € 2,18 € 3
SKLADOM
16 RUBBER RING (Ref. č 16) T01000002001 RUBBER RING  2 € 2,15 € 3
SKLADOM
17 CUSHION POSITION BUFFER GLUE (Ref. č 17) A02K01060001 CUSHION POSITION BUFFER GLUE  4 € 4,55 € 6
SKLADOM
2 U06-H130101-0B0-00 REAR PANEL  1 € 35,87 € 44
NA DOPYT
4 U06-H121801-0B0-00 RIGHT INNER COVER OF TOP BEAM  1 € 3,32 € 4
NA DOPYT
20 U06-H121901-0B0-00 SEAT CUSHION REAR GUARD  1 € 15,23 € 19
NA DOPYT
Kód produktu SEGWAY_4_442_UT6
typ rozkresu: BODY PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT6
