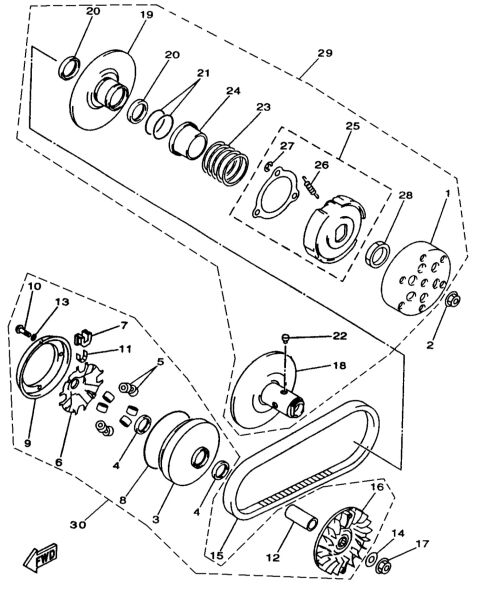

CLUTCH

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_1_132.1_ATV300-3D
MODEL:
300 E2 300 E2
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 CLUTCH HOUSING COMP. (Ref. č 1) 25614 CLUTCH HOUSING COMP.  1 € 49,83 € 60,30
SKLADOM
17 NUT (Ref. č 17) 23802 NUT  1 € 2,40 € 2,90
SKLADOM
18 SECONDARY FIXED SHEAVE COMP.INCLUDE TWO BEARINGS ONE OIL SEAL AND ONE CIRCLIP of ATV300-D EFI T3b (Ref. č 18) 27469 SECONDARY FIXED SHEAVE COMP.INCLUDE TWO BEARINGS ONE OIL SEAL AND ONE CIRCLIP of ATV300-D EFI T3b  1 € 72,15 € 87,30
SKLADOM
19 SECONDARY SLIDING SHEAVE of ATV300-D EFI T3b (Ref. č 19) 27470 SECONDARY SLIDING SHEAVE of ATV300-D EFI T3b  1 € 43,31 € 52,40
NA DOPYT
20 OIL SEAL (Ref. č 20) 23820 OIL SEAL  2 € 6,36 € 7,70
SKLADOM
21 O-RING 46.2X2 of ATV300-D EFI T3b (Ref. č 21) 27471 O-RING 46.2X2 of ATV300-D EFI T3b  2 € 2,40 € 2,90
SKLADOM
22 PIN GUIDE of ATV300-D EFI T3b (Ref. č 22) 27472 PIN GUIDE of ATV300-D EFI T3b  4 € 2,40 € 2,90
SKLADOM
23 COMPRESSION SPRING (Ref. č 23) 27473 COMPRESSION SPRING  1 € 4,21 € 5,10
SKLADOM
24 SEAT SECONDARY SPRING (Ref. č 24) 27474 SEAT SECONDARY SPRING  1 € 2,89 € 3,50
SKLADOM
25 CLUTCH CARRIER ASSY (Ref. č 25) 25619 CLUTCH CARRIER ASSY  1 € 124,21 € 150,30
SKLADOM

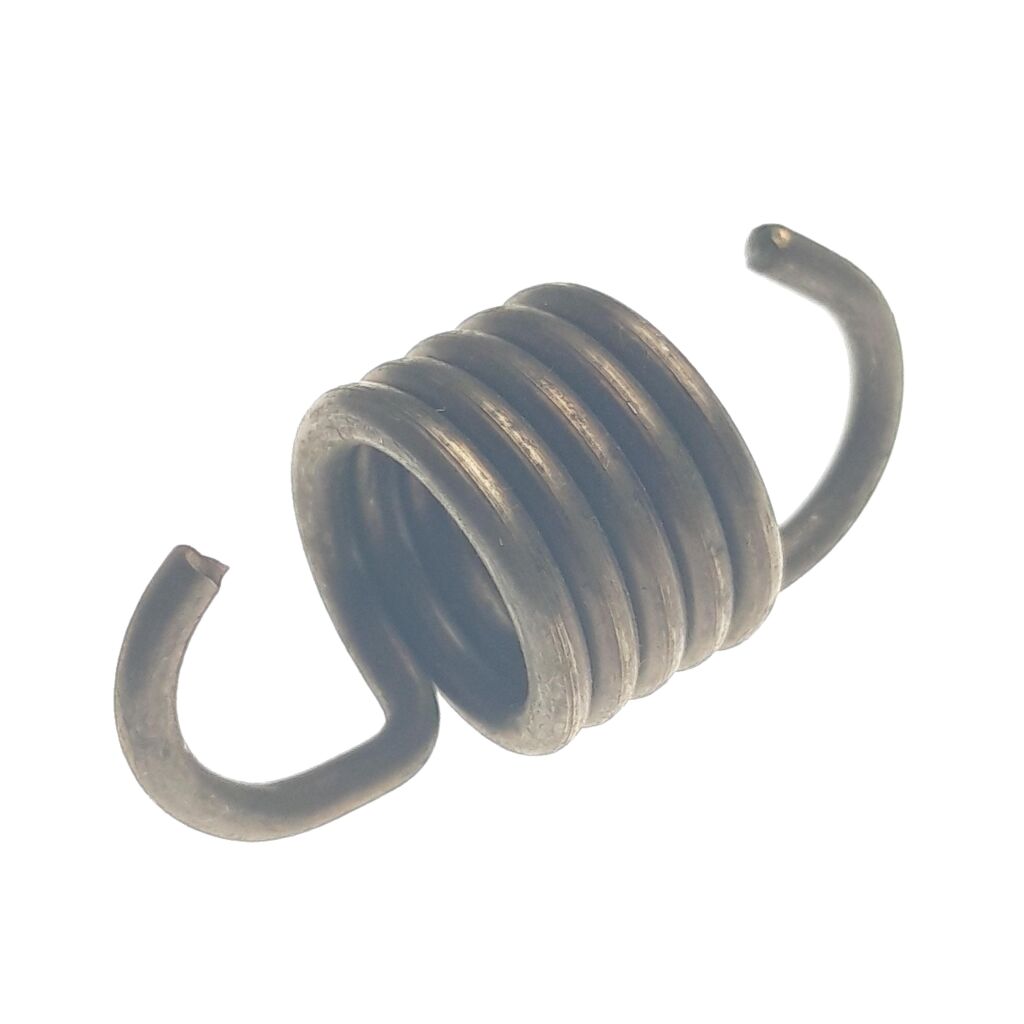

26 CLUTCH WEIGHT SPRING 1 (Ref. č 26) 27476 CLUTCH WEIGHT SPRING 1  3 € 2,40 € 2,90
SKLADOM
27 10133 CIRCLIP 8  3 € 7,19 € 8,70
NA DOPYT
28 NUT M36X1.5 (Ref. č 28) 23928 NUT M36X1.5  1 € 2,40 € 2,90
NA CESTE
29 DRIVEN ASSY COMPLETE (Ref. č 29) 25620 DRIVEN ASSY COMPLETE  1 € 249,83 € 302,30
NA CESTE
16 SHEAVE PRIMARY FIXED (20teeth) (Ref. č 16) 25618 SHEAVE PRIMARY FIXED (20teeth)  1 € 56,28 € 68,10
SKLADOM
15 R/B 23815G BELT Linhai 300, 400 (Ref. č 15) 23815 R/B 23815G BELT Linhai 300, 400  1 € 118,60 € 143,50
NA DOPYT
3 PRIMARY SLIDING SHEAVE COMP (Ref. č 3) 27460 PRIMARY SLIDING SHEAVE COMP  1 € 39,09 € 47,30
SKLADOM
4 OIL SEAL 28X36X4 (Ref. č 4) 23804 OIL SEAL 28X36X4  2 € 11,40 € 13,80
SKLADOM
5 WEIGHT (Ref. č 5) 27461 WEIGHT  8 € 4,71 € 5,70
SKLADOM
6 CAM (Ref. č 6) 25615 CAM  1 € 6,36 € 7,70
NA DOPYT
2 NUT (Ref. č 2) 23802 NUT  1 € 2,40 € 2,90
SKLADOM
7 SLIDER (Ref. č 7) 27463 SLIDER  4 € 2,40 € 2,90
SKLADOM
8 O-RING 115X2.5 of ATV300-D EFI T3b (Ref. č 8) 27464 O-RING 115X2.5 of ATV300-D EFI T3b  1 € 2,40 € 2,90
SKLADOM
9 STOPPER of ATV300-D EFI T3b (Ref. č 9) 27465 STOPPER of ATV300-D EFI T3b  1 € 6,20 € 7,50
SKLADOM
10 PAN HEAD SCREW M4X12 (Ref. č 10) 10132 PAN HEAD SCREW M4X12  4 € 2,40 € 2,90
SKLADOM
11 SPACER 1 (Ref. č 11) 27466 SPACER 1  4 € 2,40 € 2,90
SKLADOM
12 COLLAR (Ref. č 12) 25616 COLLAR  1 € 5,37 € 6,50
SKLADOM
13 WASHER PLATE 4 (Ref. č 13) 23813 WASHER PLATE 4  4 € 2,40 € 2,90
SKLADOM
14 WASHER PLATE (Ref. č 14) 25617 WASHER PLATE  1 € 13,64 € 16,50
SKLADOM
30 DRIVE ASSY COMPLETE (Ref. č 30) 25621 DRIVE ASSY COMPLETE  1 € 146,20 € 176,90
SKLADOM
