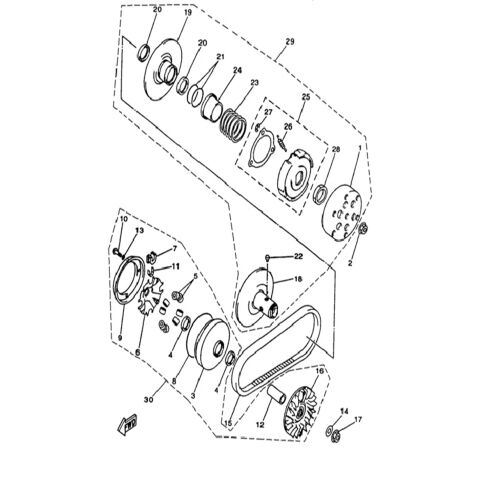

CLUTCH（NEW MODEL)

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_1_132_ATV400-D-E4
MODEL:
400 E4 400 E4
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 CLUTCH HOUSING COMP. (Ref. č 1) 27459 CLUTCH HOUSING COMP.  1 € 48,10 € 58,20
NA DOPYT
17 NUT (Ref. č 17) 23802 NUT  1 € 2,40 € 2,90
SKLADOM
18 SECONDARY FIXED SHEAVE COMP.INCLUDE TWO BEARINGS ONE OIL SEAL AND ONE CIRCLIP of ATV300-D EFI T3b (Ref. č 18) 27469 SECONDARY FIXED SHEAVE COMP.INCLUDE TWO BEARINGS ONE OIL SEAL AND ONE CIRCLIP of ATV300-D EFI T3b  1 € 72,15 € 87,30
SKLADOM
19 SECONDARY SLIDING SHEAVE of ATV300-D EFI T3b (Ref. č 19) 27470 SECONDARY SLIDING SHEAVE of ATV300-D EFI T3b  1 € 43,31 € 52,40
NA DOPYT
20 OIL SEAL (Ref. č 20) 23820 OIL SEAL  2 € 6,36 € 7,70
SKLADOM
21 O-RING 46.2X2 of ATV300-D EFI T3b (Ref. č 21) 27471 O-RING 46.2X2 of ATV300-D EFI T3b  2 € 2,40 € 2,90
SKLADOM
22 PIN GUIDE of ATV300-D EFI T3b (Ref. č 22) 27472 PIN GUIDE of ATV300-D EFI T3b  4 € 2,40 € 2,90
SKLADOM
23 COMPRESSION SPRING (Ref. č 23) 27473 COMPRESSION SPRING  1 € 4,21 € 5,10
SKLADOM
24 SEAT SECONDARY SPRING (Ref. č 24) 27474 SEAT SECONDARY SPRING  1 € 2,89 € 3,50
SKLADOM
25 R/B 27248c CLUTCH CARRIER ASSY (Ref. č 25) 27475 R/B 27248c CLUTCH CARRIER ASSY  1 € 150 € 181,50
SKLADOM
26 CLUTCH WEIGHT SPRING 1 (Ref. č 26) 27476 CLUTCH WEIGHT SPRING 1  3 € 2,40 € 2,90
SKLADOM
27 10133 CIRCLIP 8  3 € 7,19 € 8,70
NA DOPYT
28 NUT M36X1.5 (Ref. č 28) 23928 NUT M36X1.5  1 € 2,40 € 2,90
NA CESTE
29 DRIVEN ASSY COMPLETE (Ref. č 29) 27248c DRIVEN ASSY COMPLETE  1 € 197,27 € 238,70
Naskladňujeme
16 SHEAVE PRIMARY FIXED (Ref. č 16) 27468 SHEAVE PRIMARY FIXED  1 € 26,36 € 31,90
SKLADOM
15 V-BELT (LOGO "GATES") (Ref. č 15) 23817 V-BELT (LOGO "GATES")  1 € 75,70 € 91,60
NA CESTE
15 R/B 23815G BELT Linhai 300, 400 (Ref. č 15) 23815 R/B 23815G BELT Linhai 300, 400  1 € 118,60 € 143,50
NA DOPYT
3 PRIMARY SLIDING SHEAVE COMP (Ref. č 3) 27460 PRIMARY SLIDING SHEAVE COMP  1 € 39,09 € 47,30
SKLADOM
4 OIL SEAL 28X36X4 (Ref. č 4) 23804 OIL SEAL 28X36X4  2 € 11,40 € 13,80
SKLADOM
5 WEIGHT (Ref. č 5) 27461 WEIGHT  8 € 4,71 € 5,70
SKLADOM
2 NUT (Ref. č 2) 23802 NUT  1 € 2,40 € 2,90
SKLADOM
6 CAM (Ref. č 6) 27462 CAM  1 € 18,26 € 22,10
NA CESTE
7 SLIDER (Ref. č 7) 27463 SLIDER  4 € 2,40 € 2,90
SKLADOM
8 O-RING 115X2.5 of ATV300-D EFI T3b (Ref. č 8) 27464 O-RING 115X2.5 of ATV300-D EFI T3b  1 € 2,40 € 2,90
SKLADOM
9 STOPPER of ATV300-D EFI T3b (Ref. č 9) 27465 STOPPER of ATV300-D EFI T3b  1 € 6,20 € 7,50
SKLADOM
10 PAN HEAD SCREW M4X12 (Ref. č 10) 10132 PAN HEAD SCREW M4X12  4 € 2,40 € 2,90
SKLADOM
11 SPACER 1 (Ref. č 11) 27466 SPACER 1  4 € 2,40 € 2,90
SKLADOM
12 COLLAR (Ref. č 12) 27467 COLLAR  1 € 10 € 12,10
SKLADOM
13 WASHER PLATE 4 (Ref. č 13) 23813 WASHER PLATE 4  4 € 2,40 € 2,90
SKLADOM
14 WASHER PLATE (Ref. č 14) 27477 WASHER PLATE  1 € 2,40 € 2,90
NA DOPYT
30 DRIVE ASSY, COMPLETE (Ref. č 30) 27254C DRIVE ASSY, COMPLETE  1 € 88,35 € 106,90
SKLADOM
