Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
36 511369 BRACKET, EPS

FOR W/EPS

1 € 34,79 € 43
NA DOPYT
35 511370 PROTECTOR COVER  1 € 25,70 € 32
NA DOPYT
34 SPRING WASHER (Ref. č 34) GA556WS04 SPRING WASHER

FOR WHEEL BRAKE

4 € 2,40 € 3
SKLADOM
33 BOLT (Ref. č 33) S21809 BOLT

FOR WHEEL BRAKE

2 € 2,40 € 3
SKLADOM
32 517999 BRACKET

FOR WHEEL BRAKE

1 € 9,50 € 12
NA DOPYT
31 517954 MOTOR BRACKET

FOR WHEEL BRAKE

1 € 8,18 € 10
NA DOPYT
30 BOLT, SOCKET M8X20L (Ref. č 30) S72805 BOLT, SOCKET M8X20L

FOR WHEEL BRAKE

2 € 2,40 € 3
SKLADOM
29 SPRING WASHER 10X18X2,5 (Ref. č 29) GA556WS06 SPRING WASHER 10X18X2,5

FOR WHEEL BRAKE

4 € 2,40 € 3
SKLADOM
28 BOLT M10X20 (Ref. č 28) S21008 BOLT M10X20

OPTION

4 € 2,40 € 3
SKLADOM
37 BOLT, FLANGE (Ref. č 37) S20814 BOLT, FLANGE

FOR W/EPS

4 € 2,40 € 3
SKLADOM
43 511368A PROTECTOR(INCLUDING HEAT INSULATION)  1 € 14,96 € 18
NA DOPYT
51 514931 SEAT STEADY  1 € 24,79 € 30
NA DOPYT
50 926897 BUSH, RUBBER

←012354

1 € 1,98 € 2
NA DOPYT
48 BRACKET FOR EPS (BRUSH MOTOR) (Ref. č 48) 519802 BRACKET FOR EPS (BRUSH MOTOR)

←012354

1 € 35,37 € 44
SKLADOM
47 PLUG CAP (Ref. č 47) 512072 PLUG CAP  2 € 2,40 € 3
SKLADOM
46 BOLT, FLANGE M8X16 (Ref. č 46) S20817 BOLT, FLANGE M8X16  1 € 2,40 € 3
SKLADOM
45A BRACKET (Ref. č 45A) 519808 BRACKET

009279→

1 € 16,53 € 20
SKLADOM
45 511367 BRACKET

←009278

1 € 16,45 € 20
NA DOPYT
44 BOLT, FLANGE M6X16 (Ref. č 44) GA555SC05 BOLT, FLANGE M6X16  1 € 2,40 € 3
SKLADOM
43.1 511371 HEAT INSULATION  1 € 1,98 € 2
NA DOPYT
25 517969 FRONT INTERNAL FENDER  1 € 5,62 € 7
NA DOPYT
24 REAR DIFFERENTIAL BRACKET(UPPER) (Ref. č 24) 517972 REAR DIFFERENTIAL BRACKET(UPPER)

FOR WHEEL BRAKE

1 € 17,93 € 22
Naskladňujeme
01B 511319 MAIN FRAME

←012262

1 € 1 186,69 € 1 460
NA DOPYT
01A 519836 MAIN FRAME

012263→

1 € 1 241,32 € 1 527
SKLADOM
01 518769SEB FRONT CARRIER COMP.(SEMI-GLOSS BLACK)

←012262

1 € 158,18 € 195
NA DOPYT
08 PROTECTOR COMP., BUMPER.(SEMI-GLOSS BLACK) (Ref. č 08) 518744SEA PROTECTOR COMP., BUMPER.(SEMI-GLOSS BLACK)  1 € 144,21 € 177
Naskladňujeme
07 BRACKET COMP (Ref. č 07) 518726A BRACKET COMP  1 € 30 € 37
SKLADOM

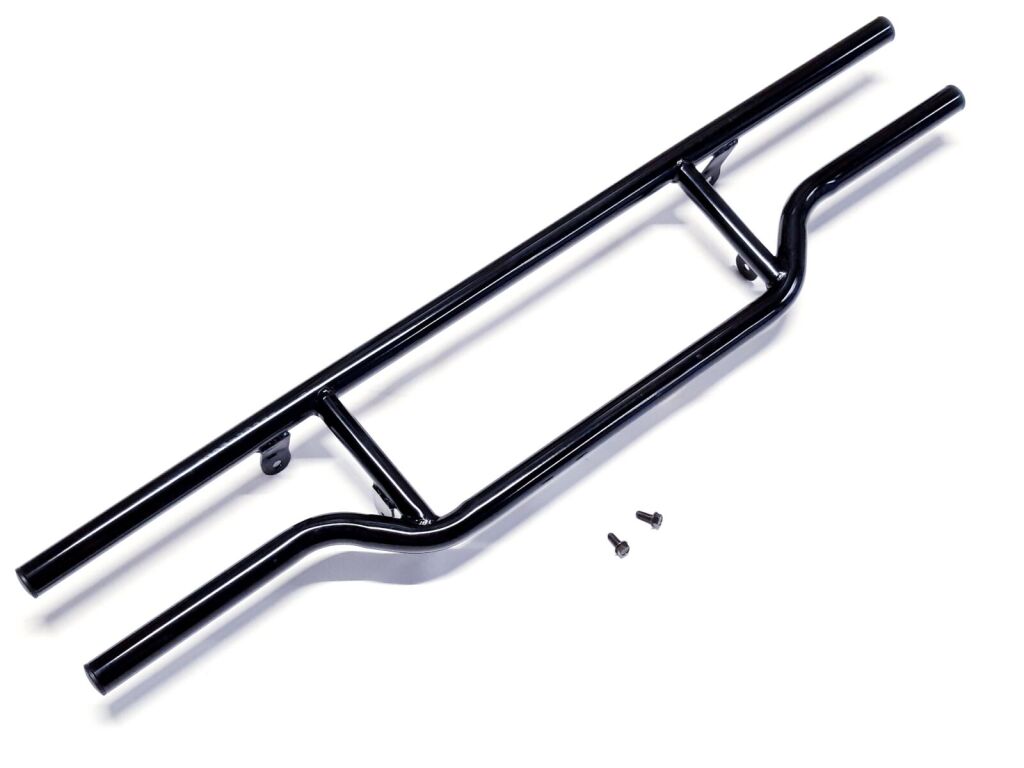

06 BUMPER, REAR COMP. (Ref. č 06) 512068A BUMPER, REAR COMP.

OPTION

1 € 78,84 € 97
SKLADOM
05 512334A SEAT BACK CUSHION  1 € 226,45 € 279
SKLADOM
04 PASSNGER HOLDER. (Ref. č 04) 516086A PASSNGER HOLDER.  1 € 64,46 € 79
NA DOPYT
03 BUMPER, FRONT COMP.(SEMI-GLOSS BLACK) (Ref. č 03) 518751SEA BUMPER, FRONT COMP.(SEMI-GLOSS BLACK)

OPTION

1 € 122,23 € 150
SKLADOM
09 SEAT STEADY, FRONT (Ref. č 09) 511950 SEAT STEADY, FRONT  1 € 5,95 € 7
SKLADOM
10 PIN, STEERING LOCK (Ref. č 10) 511953 PIN, STEERING LOCK  1 € 7,93 € 10
NA DOPYT
11 SPRING, STEERING LOCK (Ref. č 11) 511946 SPRING, STEERING LOCK  1 € 2,40 € 3
SKLADOM
23 REAR DIFFERENTIAL BRACKET, RH. (Ref. č 23) 517953 REAR DIFFERENTIAL BRACKET, RH.

FOR WHEEL BRAKE

1 € 7,69 € 9
NA DOPYT
21 REAR DIFFERENTIAL BRACKET, LH. (Ref. č 21) 517948 REAR DIFFERENTIAL BRACKET, LH.

FOR WHEEL BRAKE

1 € 18,93 € 23
SKLADOM
18 511318 BRACKET  1 € 3,97 € 5
NA DOPYT
17 BOLT, FLANGE (Ref. č 17) S07601 BOLT, FLANGE  10 € 2,40 € 3
SKLADOM
16 SPACER (Ref. č 16) GA554BS02 SPACER

OPTION

2 € 2,40 € 3
SKLADOM
15 BOLT M6X16L (Ref. č 15) S25602 BOLT M6X16L  16 € 2,40 € 3
SKLADOM
13 NUT (Ref. č 13) GA501NT01 NUT  1 € 2,40 € 3
SKLADOM
12 BOLT, FLANGE (Ref. č 12) S20004 BOLT, FLANGE  1 € 2,40 € 3
SKLADOM
02 516087SEA REAR CARRIER COMP.

OPTION

1 € 174,21 € 214
SKLADOM

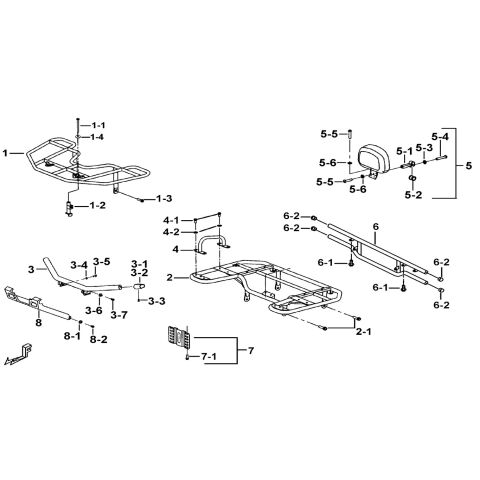

Kód produktu TGB_4_228_FBH-JDLE
typ rozkresu: BODY PARTS
ZNACKA: TGB
TYP: BLADE 600LTX
MODEL: BLADE 600LTX E4, BLADE 600LTX E5
