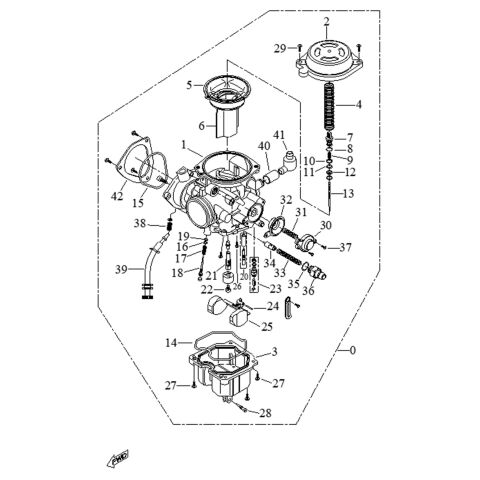

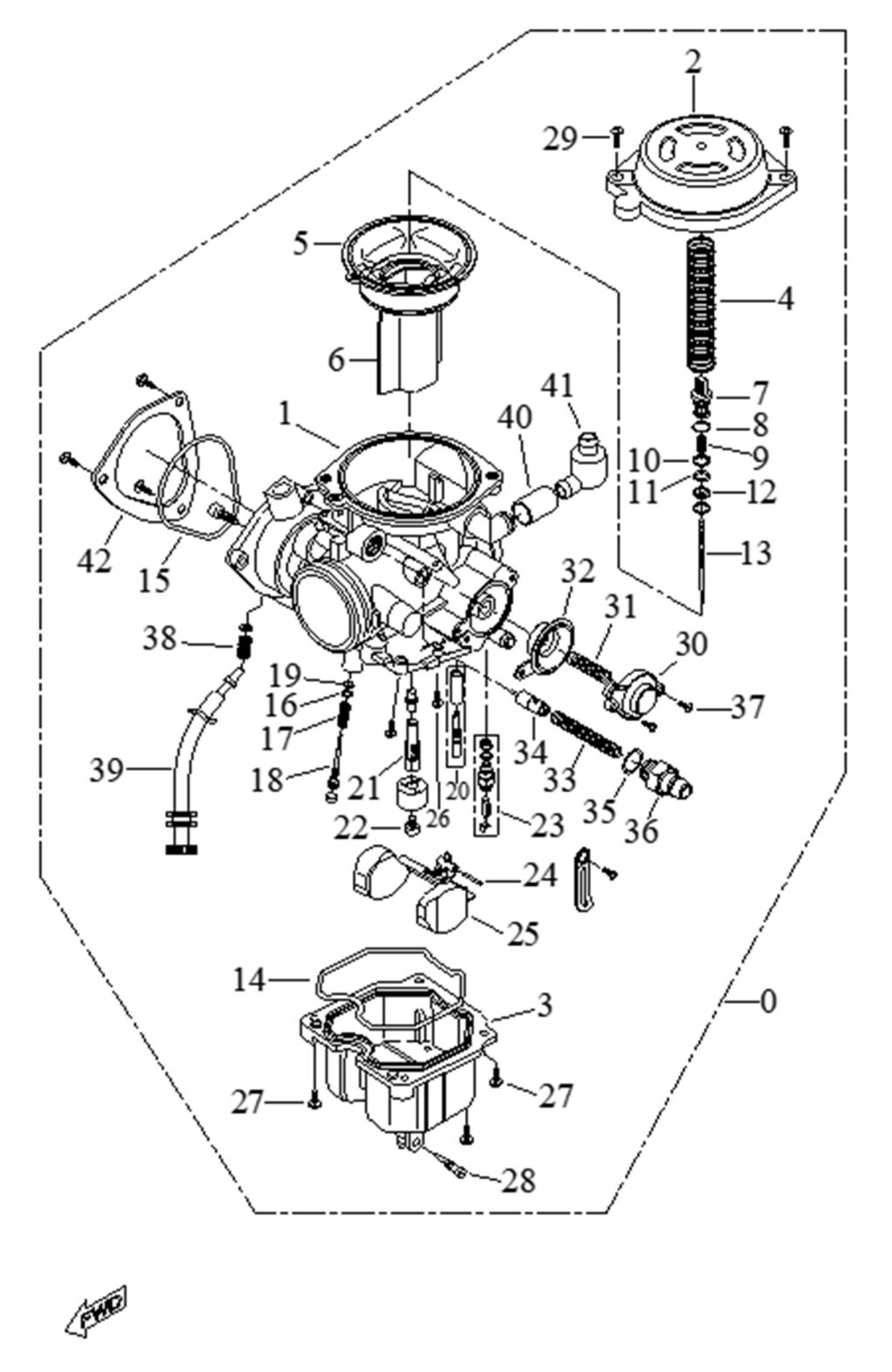

CARBURETOR ASS'Y

Výrobca ACCESS MOTOR
Kód produktu ACCESS_1_112_WARRIOR_450

Ref. č	Kód p.	Popis	p. ks	Cena za 1 ks	Dostupnost
41	16305-E12-000	R/B 16100-E12-143-6 Air Filter, Box	1	Cena bez DPH € 4,13 Cena s DPH € 5	NA DOPYT
29	16135-E12-000	SCREW	2	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
28	16120-E10-000	Screw (unavailable)	1	Cena bez DPH € 2,48 Cena s DPH € 3	NA DOPYT
27	16110-E10-010	SCREW	3		NA DOPYT	Detail
26	16110-E10-000	SCREW	1		NA DOPYT	Detail
25	16107-E12-000	FLOAT	1	Cena bez DPH € 47,11 Cena s DPH € 58	SKLADOM
24	16108-E12-000	PIN	1	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
23	16113-E12-000	NEEDLE VALVE Ass'Y (unavailable)	1	Cena bez DPH € 38,02 Cena s DPH € 47	NA DOPYT
22	16101-E12-000	Main Jet	1	Cena bez DPH € 7,44 Cena s DPH € 9	SKLADOM
30	16151-E12-000	COVER ASS'Y	1		NA DOPYT	Detail
31	16133-E12-010	COMPRESSION SPRING	1		NA DOPYT	Detail
32	16171-E12-000	DIAPHRAGM ASS'Y	1	Cena bez DPH € 17,36 Cena s DPH € 21	NA DOPYT
40	16310-E10-000	*Tube A, Fuel 111535*	1	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
39	16128-E12-000	ADJUSTER SCREW	1		NA DOPYT	Detail
38	97225-E12-000	COMPRESSION SPRING	1		NA DOPYT	Detail
37	16110-E12-000	SCREW	2		NA DOPYT	Detail
36	16118-E12-000	Guide Holder	1	Cena bez DPH € 4,13 Cena s DPH € 5	SKLADOM
35	96200-100015	O-RING	1	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
34	16125-E12-000	Plunger ASSY	1	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
33	16124-E12-000	Compression spring	1	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
21	16106-E12-000	JET HOLDER	1		NA DOPYT	Detail
20	16102-E12-000	PILOT JET	1		NA DOPYT	Detail
8	96200-045020	O-RING	1		NA DOPYT	Detail
7	16132-E12-000	HOLDER	1		NA DOPYT	Detail
6	16126-E12-000	Piston Valve	1	Cena bez DPH € 41,32 Cena s DPH € 51	SKLADOM
5	16170-E12-000	R/B 16100-E12-143-1 DIAGRAM	1	Cena bez DPH € 19,01 Cena s DPH € 23	NA DOPYT
4	16133-E12-000	COMPRESSION SPRING	1	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
3	16160-E12-000	FLOAT BODY	1		NA DOPYT	Detail
2	16150-E12-000	DIAPHRAGM COVER	1		NA DOPYT	Detail
1	16140-E12-000	MIXING BODY ASS'Y	1		NA DOPYT	Detail
9	97224-E12-000	COMPRESSION SPRING	1		NA DOPYT	Detail
10	93100-0306310	WASHER	1		NA DOPYT	Detail
11	16136-E12-000	E-RING	1		NA DOPYT	Detail
19	96200-038010	O-RING	1	Cena bez DPH € 2,48 Cena s DPH € 3	NA DOPYT
18	16129-E12-000	R/B 16100-E12-143-2 ADJUSTER (PS)	1	Cena bez DPH € 5,79 Cena s DPH € 7	NA DOPYT
17	97223-E12-000	SPRING COMPRESSION	1	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
16	93100-0305005	WASHER	1	Cena bez DPH € 2,48 Cena s DPH € 3	NA DOPYT
15	16121-E10-000	O-Ring (unavailable)	1	Cena bez DPH € 11,57 Cena s DPH € 14	NA DOPYT
14	16109-E12-000	R/B 16100-E12-143-2 O-RING	1	Cena bez DPH € 7,44 Cena s DPH € 9	NA DOPYT
13	16131-E12-000	JET NEEDLE	1	Cena bez DPH € 14,05 Cena s DPH € 17	SKLADOM
12	93104-0307025	RING	1		NA DOPYT	Detail
0	16100-E12-100	CARBURATOR ASS'Y	1		NA DOPYT	Detail
