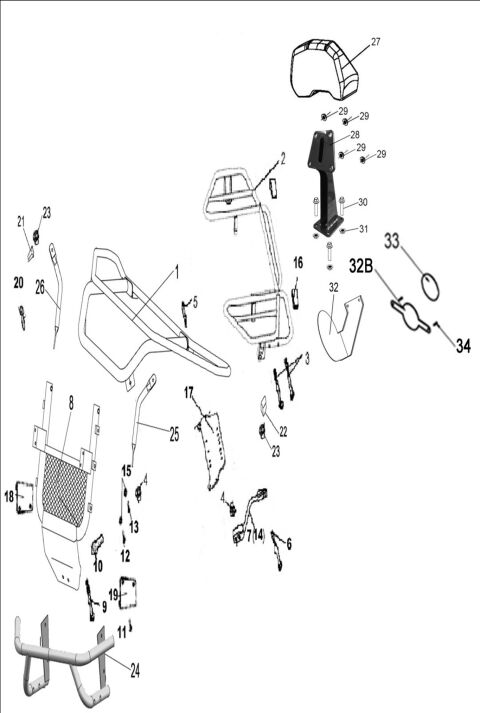

BUMPER & RACK （EURO 4）

LINHAI
  • Výrobca  LINHAI
  • Kód produktu  LINHAI_4_420_ATV400-D-E4
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 27439 FRONT RACK (FOR EUROPE)  1 € 49,17 € 60
NA DOPYT
17 TOW BRACKET (Ref. č 17) 70366 TOW BRACKET  1 € 19,34 € 24
SKLADOM
18 HOLDER,R.PULLIN BRACKET (Ref. č 18) 27387 HOLDER,R.PULLIN BRACKET  1 € 19,75 € 24
SKLADOM
19 HOLDER,L.PULLIN BRACKET (Ref. č 19) 27386 HOLDER,L.PULLIN BRACKET  1 € 19,75 € 24
SKLADOM

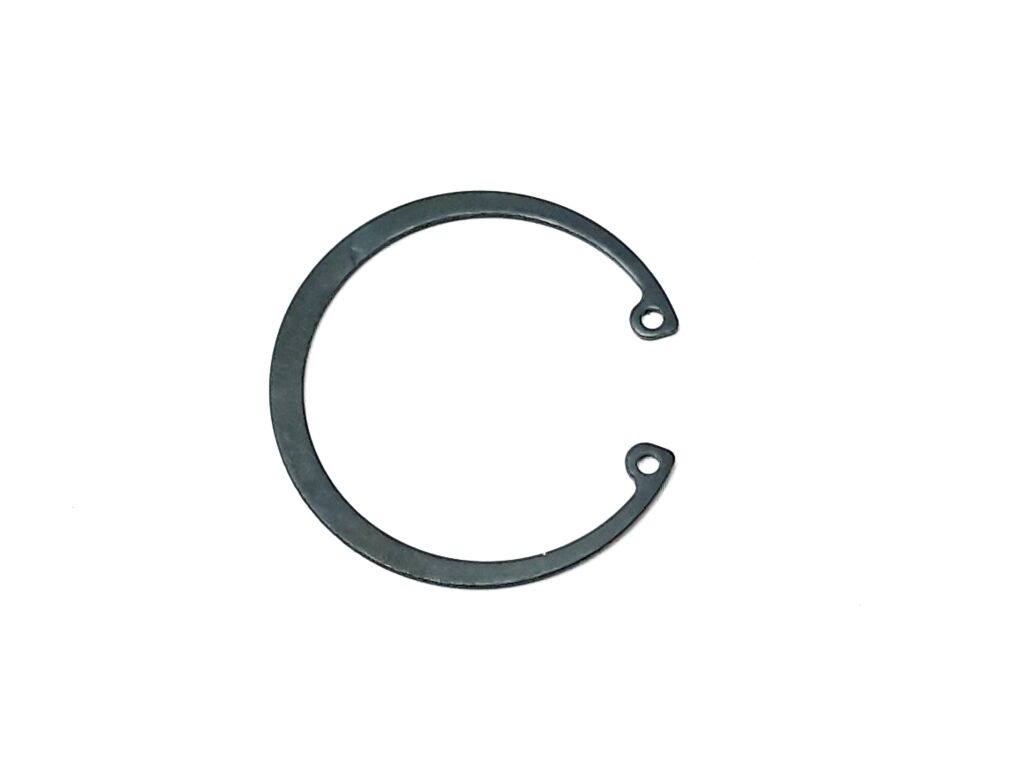

20 CIRCLIP 58 (Ref. č 20) 70055 CIRCLIP 58  4 € 2,40 € 3
SKLADOM
24 Front Bumper (EUROPE4) (Ref. č 24) 35792 Front Bumper (EUROPE4)  1 € 27,19 € 33
SKLADOM
25 FRONT SUPPORT TUBE, L (Ref. č 25) 27444 FRONT SUPPORT TUBE, L  1 € 7,85 € 10
SKLADOM
26 FRONT SUPPORT TUBE, R (Ref. č 26) 27445 FRONT SUPPORT TUBE, R  1 € 6,36 € 8
SKLADOM
27 BACKREST (Ref. č 27) 35383 BACKREST  1 € 79,17 € 97
SKLADOM
27 BACKREST (SKIN TYPE) (Ref. č 27) 35721 BACKREST (SKIN TYPE)  1 € 36,94 € 45
SKLADOM
28 REAR BACKREST WELD ASSEMBLY (Ref. č 28) 35384 REAR BACKREST WELD ASSEMBLY  1 € 63,55 € 78
SKLADOM
29 NUT M8 (Ref. č 29) 10919 NUT M8  4 € 2,15 € 3
SKLADOM
30 BOLT M8X25 (Ref. č 30) 10059 BOLT M8X25  4 € 2,40 € 3
SKLADOM
31 NUT M8 (Ref. č 31) 10079 NUT M8  4 € 2,40 € 3
SKLADOM
32 35793 BRACKET, SPEED LIMIT  1 € 5,54 € 7
NA DOPYT
32B 35793a BRACKET, SPEED LIMIT  1 € 5,54 € 7
NA DOPYT
33 36207 STICKERS,SPEED LIMIT（80km/h）  1 € 3,88 € 5
NA DOPYT
16 REAR REFLECTOR (Ref. č 16) 70779 REAR REFLECTOR  2 € 6,78 € 8
NA DOPYT
15 WASHER 8 (Ref. č 15) 10068 WASHER 8  4 € 7,19 € 9
SKLADOM
2 35527 REAR RACK (FOR EUROPE)  1 € 56,86 € 70
NA DOPYT
2 REAR RACK（FOR EUROPE）（NEW MODEL） (Ref. č 2) 35553 REAR RACK（FOR EUROPE）（NEW MODEL）  1 € 66,36 € 82
NA DOPYT
3 SCREW M5x15 (Ref. č 3) 10111 SCREW M5x15  4 € 8,76 € 11
SKLADOM
4 SCREW ST4.2X13 (Ref. č 4) 10178 SCREW ST4.2X13  4 € 2,40 € 3
SKLADOM
5 26006 BOLT M8X25  2
NA DOPYT
Detail
6 PIN 4X32 (Ref. č 6) 26267 PIN 4X32  2 € 7,19 € 9
SKLADOM
7 TRESTLE 1 LEFT (Ref. č 7) 35026 TRESTLE 1 LEFT  1 € 11,74 € 14
SKLADOM
7 TRESTLE 1 LEFT (FOR EUROPE) (Ref. č 7) 27440 TRESTLE 1 LEFT (FOR EUROPE)  1 € 5,87 € 7
NA CESTE
8 BUMPER BRACKET (Ref. č 8) 27441 BUMPER BRACKET  1 € 56,20 € 69
SKLADOM
10 26145 BOLT M8X25  2
NA DOPYT
Detail
11 10011 WASHER 6  4 € 7,19 € 9
NA DOPYT
12 10133 CIRCLIP 8  2 € 7,19 € 9
NA DOPYT
13 WASHER 6 (Ref. č 13) 10006 WASHER 6  2 € 2,40 € 3
SKLADOM
14 TRESTLE 1 RIGHT (Ref. č 14) 35027 TRESTLE 1 RIGHT  1 € 16,94 € 21
SKLADOM
14 TRESTLE 1 RIGHT (FOR EUROPE) (Ref. č 14) 27442 TRESTLE 1 RIGHT (FOR EUROPE)  1 € 8,18 € 10
NA CESTE
34 BOLT M6X20 (Ref. č 34) 10110 BOLT M6X20  4 € 2,40 € 3
NA DOPYT
Kód produktu LINHAI_4_420_ATV400-D-E4
ZNACKA: LINHAI
typ rozkresu: BODY PARTS
MODEL: 400 E4
TYP: LINHAI 400
