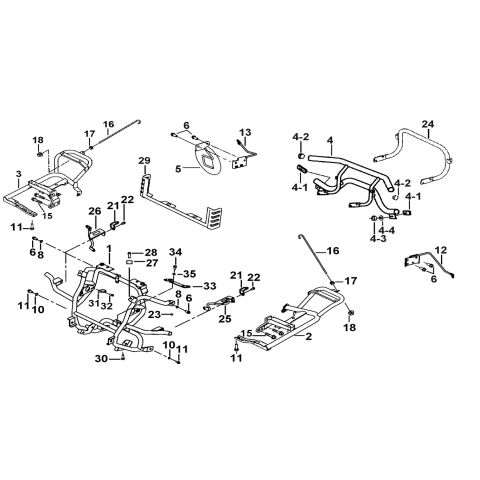

BUMPER BRACKET

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_5_430_FBH-JJDLE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
35 SPRING WASHER (Ref. č 35) GA556WS04 SPRING WASHER  2 € 2,40 € 3
SKLADOM
24D HAND HOLD, REAR(FLO. YELLOW) (Ref. č 24D) 518755SY HAND HOLD, REAR(FLO. YELLOW)

OPTION

1 € 45,54 € 56
SKLADOM
24C 518755OF HAND HOLD, REAR(BRIGHT ORANGE)

OPTION

1 € 47,11 € 58
NA DOPYT
24B HAND HOLD, REAR(INDIGO BLUE) (Ref. č 24B) 518755NB HAND HOLD, REAR(INDIGO BLUE)

OPTION

1 € 45,54 € 56
SKLADOM
24A 518755BC HAND HOLD, REAR(BRIGHT BLACK)

OPTION

1 € 40,50 € 50
NA DOPYT
24 HAND HOLD, REAR(SEMI-GLOSS BLACK) (Ref. č 24) 518755SE HAND HOLD, REAR(SEMI-GLOSS BLACK)

OPTION

1 € 81,90 € 101
SKLADOM
23 516817 WASHER, RUBBER  2
NA DOPYT
22 BOLT, FLANGE (Ref. č 22) S20802 BOLT, FLANGE  2 € 2,40 € 3
SKLADOM
21 BRACKET, HEAD LAMP (Ref. č 21) 512095 BRACKET, HEAD LAMP  2 € 12,31 € 15
NA DOPYT
18 NUT (Ref. č 18) N10604 NUT  4 € 2,40 € 3
SKLADOM
24E 518755TU HAND HOLD, REAR(TURQUOISE)

OPTION

1 € 51,24 € 63
NA DOPYT
24F 518755CA HAND HOLD, REAR(CARMINE)

OPTION

1 € 40,50 € 50
NA DOPYT
25 BRACKET LH. (Ref. č 25) 512031 BRACKET LH.  1 € 26,86 € 33
SKLADOM
34 BOLT, SOCKET M8X14L  (Ref. č 34) S72804 BOLT, SOCKET M8X14L   2 € 4,79 € 6
SKLADOM
33 516815 BRACKET, RADIATOR  1
NA DOPYT
32 BOLT, FLANGE M6X16 (Ref. č 32) GA555SC05 BOLT, FLANGE M6X16  1 € 2,40 € 3
SKLADOM
31 516806 BRACKET

EURO 5

1 € 5,29 € 7
NA DOPYT
30 BOLT, FLANGE (Ref. č 30) S20617 BOLT, FLANGE  1 € 2,15 € 3
SKLADOM
29 PROTECTOR,RADIATOR (Ref. č 29) 517980 PROTECTOR,RADIATOR

EURO 5

1 € 29,09 € 36
SKLADOM
28 BOLT M6X16L (Ref. č 28) S25602 BOLT M6X16L  2 € 2,40 € 3
SKLADOM
27 514551 CUSHION  2 € 2,98 € 4
NA DOPYT
26 BRACKET RH. (Ref. č 26) 512032 BRACKET RH.  1 € 26,86 € 33
NA DOPYT
17 NUT M6 (Ref. č 17) N02601 NUT M6  2 € 2,40 € 3
SKLADOM
16 SUPPORTING ROD (Ref. č 16) 516096 SUPPORTING ROD  2 € 11,40 € 14
SKLADOM
04B REAR PROTECTION BUMPER(STEEL)(INDIGO BLUE) (Ref. č 04B) 518782NBA REAR PROTECTION BUMPER(STEEL)(INDIGO BLUE)

OPTION

1 € 227,02 € 279
SKLADOM
04.4 WASHER (Ref. č 04-4) GA552WS05 WASHER  2 € 2,40 € 3
SKLADOM
04.3 NUT,SELFLOCK (Ref. č 04-3) N20502 NUT,SELFLOCK  2 € 3,97 € 5
SKLADOM
04.2 PLUG (Ref. č 04-2) 515118 PLUG  4 € 2,40 € 3
SKLADOM
04.1 REFLECTOR ASSY.,REAR (Ref. č 04-1) 458015 REFLECTOR ASSY.,REAR  2 € 6,45 € 8
SKLADOM
04D REAR PROTECTION BUMPER(STEEL)(FLO. YELLOW) - TGB Blade 1000 LTX MAX Only (Ref. č 04D) 518782SYA REAR PROTECTION BUMPER(STEEL)(FLO. YELLOW) - TGB Blade 1000 LTX MAX Only

OPTION

1 € 233,06 € 287
SKLADOM
15 BOLT, FLANGE (Ref. č 15) S20004 BOLT, FLANGE  4 € 2,40 € 3
SKLADOM
11 BOLT M10X20 (Ref. č 11) S21008 BOLT M10X20  4 € 2,40 € 3
SKLADOM
10 SPRING WASHER 10X18X2,5 (Ref. č 10) GA556WS06 SPRING WASHER 10X18X2,5  2 € 2,40 € 3
SKLADOM
06 BOLT, FLANGE (Ref. č 06) S20814 BOLT, FLANGE  6 € 2,40 € 3
SKLADOM
05 512097 BRACKET  1 € 23,31 € 29
NA DOPYT
01 BRACKET, VENTILATION BOARD (Ref. č 01) 516813 BRACKET, VENTILATION BOARD  1 € 215,95 € 266
NA DOPYT
Kód produktu TGB_5_430_FBH-JJDLE
typ rozkresu: BODY PARTS
ZNACKA: TGB
TYP: BLADE 600LTX
MODEL: BLADE 600LTX MAX E5
