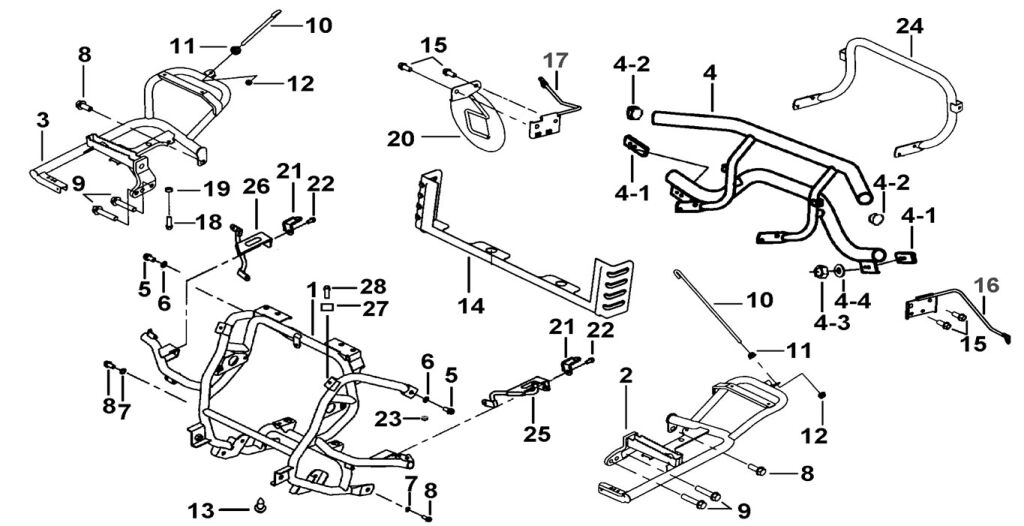

BUMPER BRACKET

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
28 BOLT M6X16L (Ref. č 28) S25602 BOLT M6X16L  2 € 2,40 € 3
SKLADOM
22 BOLT, FLANGE (Ref. č 22) S20802 BOLT, FLANGE  2 € 2,40 € 3
SKLADOM
21 BRACKET, HEAD LAMP (Ref. č 21) 512095 BRACKET, HEAD LAMP  2 € 12,31 € 15
NA DOPYT
20 512097 BRACKET  1 € 23,31 € 29
NA DOPYT
19 NUT (Ref. č 19) GA501NT01 NUT  1 € 2,40 € 3
SKLADOM
18 BOLT M10x1,25x50L (Ref. č 18) S99004 BOLT M10x1,25x50L  1 € 2,40 € 3
SKLADOM
15 BOLT, FLANGE (Ref. č 15) S20814 BOLT, FLANGE  4 € 2,40 € 3
SKLADOM
14 PROTECTOR,RADIATOR (Ref. č 14) 517980 PROTECTOR,RADIATOR  1 € 29,09 € 36
SKLADOM
23 Washer, Rubber (Ref. č 23) 402129 Washer, Rubber  2 € 2,40 € 3
NA DOPYT
24 HAND HOLD, REAR(SEMI-GLOSS BLACK) (Ref. č 24) 518755SE HAND HOLD, REAR(SEMI-GLOSS BLACK)

OPTION

1 € 81,90 € 101
SKLADOM
27 514551 CUSHION  2 € 2,98 € 4
NA DOPYT
26 BRACKET RH. (Ref. č 26) 512032 BRACKET RH.  1 € 26,86 € 33
NA DOPYT
25 BRACKET LH. (Ref. č 25) 512031 BRACKET LH.  1 € 26,86 € 33
NA DOPYT
24F 518755CA HAND HOLD, REAR(CARMINE)

OPTION

1 € 40,50 € 50
NA DOPYT
24E 518755TU HAND HOLD, REAR(TURQUOISE)

OPTION

1 € 51,24 € 63
NA DOPYT
24D HAND HOLD, REAR(FLO. YELLOW) (Ref. č 24D) 518755SY HAND HOLD, REAR(FLO. YELLOW)

OPTION

1 € 45,54 € 56
SKLADOM
24C 518755OF HAND HOLD, REAR(BRIGHT ORANGE)

OPTION

1 € 47,11 € 58
NA DOPYT
24B HAND HOLD, REAR(INDIGO BLUE) (Ref. č 24B) 518755NB HAND HOLD, REAR(INDIGO BLUE)

OPTION

1 € 45,54 € 56
SKLADOM
24A 518755BC HAND HOLD, REAR(BRIGHT BLACK)

OPTION

1 € 40,50 € 50
NA DOPYT
13 BOLT, FLANGE (Ref. č 13) S20617 BOLT, FLANGE  2 € 2,15 € 3
SKLADOM
12 NUT (Ref. č 12) N10604 NUT  2 € 2,40 € 3
SKLADOM

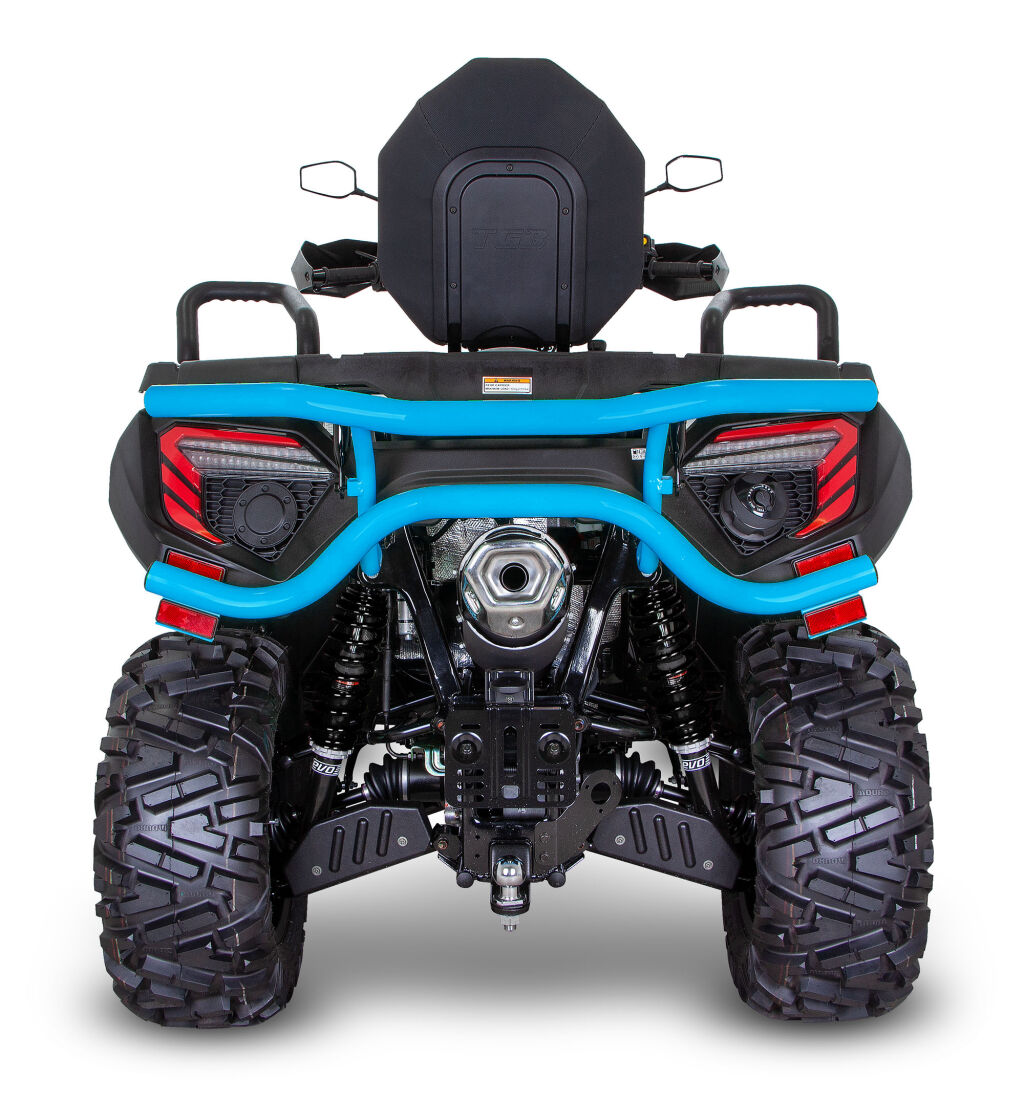

04B REAR PROTECTION BUMPER(STEEL)(INDIGO BLUE) (Ref. č 04B) 518782NBA REAR PROTECTION BUMPER(STEEL)(INDIGO BLUE)

OPTION

1 € 227,02 € 279
SKLADOM
04.4 WASHER (Ref. č 04-4) GA552WS05 WASHER  2 € 2,40 € 3
SKLADOM
04.3 NUT,SELFLOCK (Ref. č 04-3) N20502 NUT,SELFLOCK  2 € 3,97 € 5
SKLADOM
04.2 PLUG (Ref. č 04-2) 515118 PLUG  4 € 2,40 € 3
SKLADOM
04.1 REFLECTOR ASSY.,REAR (Ref. č 04-1) 458015 REFLECTOR ASSY.,REAR  2 € 6,45 € 8
SKLADOM
03 BRACKET, FOOT BOARD, RH (Ref. č 03) 512080 BRACKET, FOOT BOARD, RH  1 € 149,92 € 184
SKLADOM
02 BRACKET, FOOT BOARD, LH. (Ref. č 02) 512079 BRACKET, FOOT BOARD, LH.  1 € 130,41 € 160
NA DOPYT
04D REAR PROTECTION BUMPER(STEEL)(FLO. YELLOW) - TGB Blade 1000 LTX MAX Only (Ref. č 04D) 518782SYA REAR PROTECTION BUMPER(STEEL)(FLO. YELLOW) - TGB Blade 1000 LTX MAX Only

OPTION

1 € 233,06 € 287
SKLADOM ZA 6 dní
11 NUT M6 (Ref. č 11) N02601 NUT M6  2 € 2,40 € 3
SKLADOM
10 SUPPORTING ROD (Ref. č 10) 516096 SUPPORTING ROD  2 € 11,40 € 14
SKLADOM
09 BOLT, FLANGE (Ref. č 09) S20004 BOLT, FLANGE  4 € 2,40 € 3
SKLADOM
08 BOLT M10X20 (Ref. č 08) S21008 BOLT M10X20  4 € 2,40 € 3
SKLADOM
07 SPRING WASHER 10X18X2,5 (Ref. č 07) GA556WS06 SPRING WASHER 10X18X2,5  2 € 2,40 € 3
SKLADOM
06 SPRING WASHER (Ref. č 06) GA556WS04 SPRING WASHER  2 € 2,40 € 3
SKLADOM
01 512098 R/B 516813-S1 BRACKET,VENTILATION BOARD  1 € 228,76 € 281
NA DOPYT
Kód produktu TGB_5_428_EST-JJ
typ rozkresu: BODY PARTS
ZNACKA: TGB
TYP: BLADE 1000LTX
MODEL: BLADE 1000LTX MAX E5
