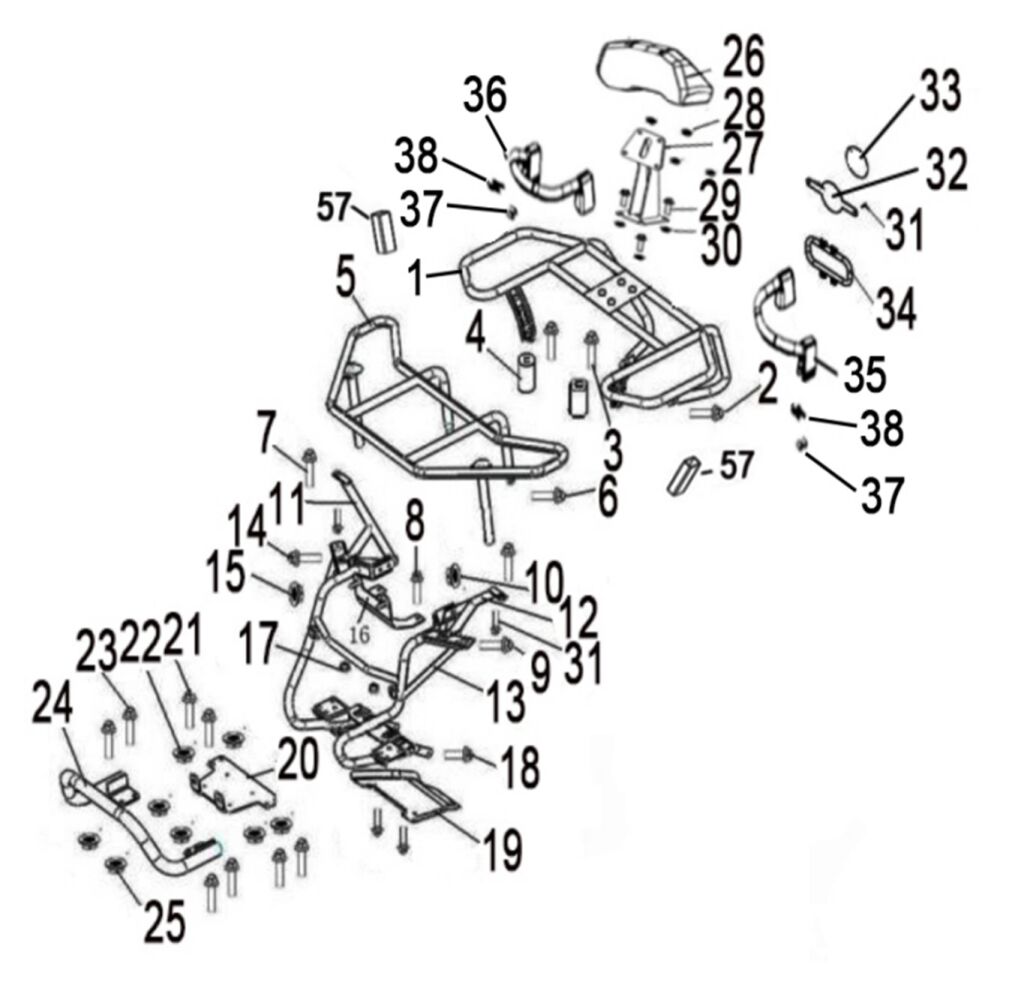

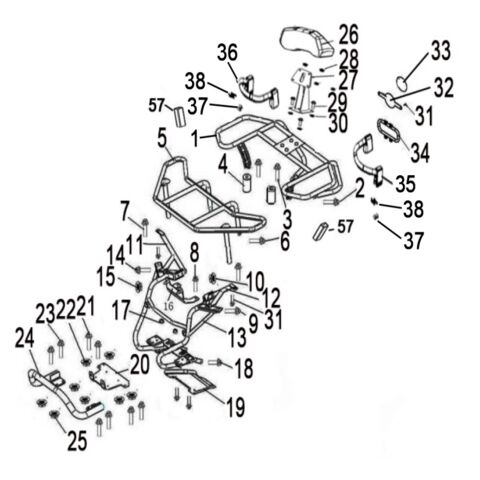

BUMPER AND RACK

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 36084 REAR RACK (FOR EUROPE)  1 € 76,78 € 92,90
SKLADOM
29 BOLT M8X25 (Ref. č 29) 10059 BOLT M8X25  4 € 2,40 € 2,90
SKLADOM
37 36457 INSTALL THE SPACER,HANDLE SAET  4 € 7,69 € 9,30
NA DOPYT
36 RIGHT, HANDLE SEAT (Ref. č 36) 36456 RIGHT, HANDLE SEAT  1 € 53,22 € 64,40
SKLADOM
35 LEFT, HANDLE SEAT (Ref. č 35) 36455 LEFT, HANDLE SEAT  1 € 53,22 € 64,40
SKLADOM
34 PROTECTION IN WELDING ASSY.(EXCEPT FOR FRANCE) OF M550L E4 1 (Ref. č 34) 36208 PROTECTION IN WELDING ASSY.(EXCEPT FOR FRANCE) OF M550L E4 1  1 € 37,36 € 45,20
NA DOPYT
33 38164 STICKERS,SPEED LIMIT(56mph)  1
NA DOPYT
Detail
33 38163 STICKERS, SPEED LIMIT (90km/h)  1
NA DOPYT
Detail
32 35793a BRACKET, SPEED LIMIT  1 € 5,54 € 6,70
NA DOPYT
20 BRACKET, PULLING (Ref. č 20) 36119 BRACKET, PULLING  1 € 35,54 € 43
NA CESTE
9 10055 BOLT M8X45  4 € 8,02 € 9,70
NA DOPYT
5 36093 FRONT RACK (FOR EUROPE)  1 € 55,87 € 67,60
SKLADOM
7 BOLT M8X25 (Ref. č 7) 10059 BOLT M8X25  2 € 2,40 € 2,90
SKLADOM
2 BOLT M8X25 (Ref. č 2) 10059 BOLT M8X25  4 € 2,40 € 2,90
SKLADOM
14 BOLT M8X25 (Ref. č 14) 10059 BOLT M8X25  2 € 2,40 € 2,90
SKLADOM
28 NUT M8 (Ref. č 28) 10919 NUT M8  4 € 2,15 € 2,60
SKLADOM
27 REAR BACKREST WELD ASSEMBLY (Ref. č 27) 35384 REAR BACKREST WELD ASSEMBLY  1 € 63,55 € 76,90
SKLADOM
26 BACKREST (SKIN TYPE) (Ref. č 26) 35721 BACKREST (SKIN TYPE)  1 € 36,94 € 44,70
NA DOPYT
25 NUT M8 (Ref. č 25) 11455 NUT M8  4 € 2,40 € 2,90
SKLADOM
24 R/B 36118a FRONT BUMPER (Ref. č 24) 36118 R/B 36118a FRONT BUMPER  1 € 33,64 € 40,70
NA DOPYT
23 10814 Hexagon Flange Bolt M8×1.25X20  4 € 8,02 € 9,70
NA DOPYT
31 11459 Hexagon Flange Bolt M6×20  4 € 2,40 € 2,90
NA DOPYT
38 HEXAGON BOLTS M8X30 (Ref. č 38) 11017 HEXAGON BOLTS M8X30  4 € 2,40 € 2,90
SKLADOM
4 REAR RACK MOUNTING SPACER (Ref. č 4) 36085 REAR RACK MOUNTING SPACER  2 € 5,79 € 7
SKLADOM
3 29506 BOLT M8X55 ATV200-D T3b  2
NA DOPYT
Detail
11 Right Y shaped support tube (Ref. č 11) 36112 Right Y shaped support tube  1 € 17,19 € 20,80
SKLADOM
19 FRONT BOTTOM GUARD (Ref. č 19) 36113 FRONT BOTTOM GUARD  1 € 40,91 € 49,50
NA DOPYT
17 Supporting rubber ring under water tank (Ref. č 17) 36054 Supporting rubber ring under water tank  2 € 9,59 € 11,60
SKLADOM
16 MOUNTING PLATE ON WATER TANK (Ref. č 16) 36051 MOUNTING PLATE ON WATER TANK  1 € 23,72 € 28,70
SKLADOM
13 36022 FRONT PART SUPPORT ASSEMBLY  1 € 69,34 € 83,90
SKLADOM ZA 9 dní
12 Left Y shaped support tube (Ref. č 12) 36111 Left Y shaped support tube  1 € 19,09 € 23,10
SKLADOM
57 35880 RUBBER COVER FOR REAR SHELF  2 € 4,21 € 5,10
NA DOPYT
10 NUT M8 (Ref. č 10) 11455 NUT M8  4 € 2,40 € 2,90
SKLADOM
15 NUT M8 (Ref. č 15) 11455 NUT M8  2 € 2,40 € 2,90
SKLADOM
22 NUT M8 (Ref. č 22) 11455 NUT M8  4 € 2,40 € 2,90
SKLADOM
30 NUT M8 (Ref. č 30) 11455 NUT M8  4 € 2,40 € 2,90
SKLADOM
21 10814 Hexagon Flange Bolt M8×1.25X20  4 € 8,02 € 9,70
NA DOPYT
8 10814 Hexagon Flange Bolt M8×1.25X20  2 € 8,02 € 9,70
NA DOPYT
6 10814 Hexagon Flange Bolt M8×1.25X20  2 € 8,02 € 9,70
NA DOPYT
18 10814 Hexagon Flange Bolt M8×1.25X20  2 € 8,02 € 9,70
NA DOPYT
