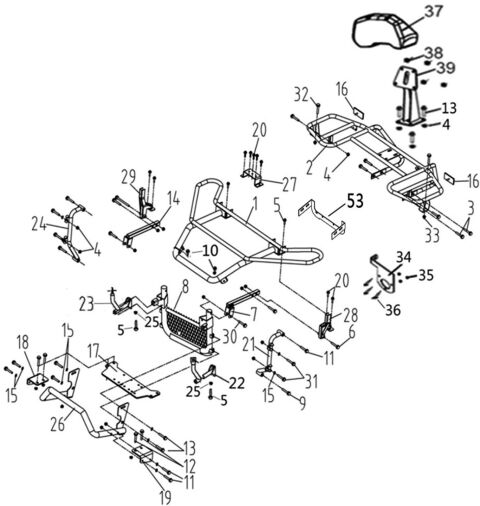

BUMPER AND RACK (FOR ATV550 PROMAX WITH NORMALL EEC LIGHTS)

LINHAI
  • Výrobca  LINHAI
  • Kód produktu  LINHAI_4_434_570_PROMAX-T3
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
53 REAR PLATE MOUNTING BRACKET (OPTION) (Ref. č 53) 25319 REAR PLATE MOUNTING BRACKET (OPTION)  1 € 20,66 € 25
SKLADOM
34 71070 BRACKET,OUTPUT SOCKET  1 € 18,02 € 22
NA DOPYT
33 11064 NUT M16X1.5  2 € 9,59 € 12
NA DOPYT
32 11105 BOLT M6X35  2 € 8,76 € 11
NA DOPYT
31 11539 Bolt M6X25  4 € 2,40 € 3
NA CESTE
30 BOLT.FLANGE (Ref. č 30) 10403 BOLT.FLANGE  2 € 2,40 € 3
SKLADOM
29 TRESTLE, R (Ref. č 29) 35029 TRESTLE, R  1 € 14,21 € 17
SKLADOM
28 TRESTLE L (Ref. č 28) 35028 TRESTLE L  1 € 14,13 € 17
SKLADOM
27 AUXILIARY RELAY BRACKET (Ref. č 27) 35532 AUXILIARY RELAY BRACKET  1 € 10,17 € 13
SKLADOM
26 FRONT BUMPER (Ref. č 26) 27443 FRONT BUMPER  1 € 40,41 € 50
SKLADOM
35 10109 NUT M5  3 € 9,59 € 12
NA DOPYT
36 10427 Cross Recessed Pan Head Screw M5×35  3 € 8,51 € 10
NA DOPYT
37 BACKREST (SKIN TYPE) (Ref. č 37) 35721 BACKREST (SKIN TYPE)  1 € 36,94 € 45
SKLADOM
52 26919 Nut  8 € 11,74 € 14
NA DOPYT
51 26918 Washer  8 € 7,02 € 9
NA DOPYT
50 26917 Spring Washer  8 € 7,02 € 9
NA DOPYT
49 26916 Bolt  4 € 11,74 € 14
NA DOPYT
48 84381 In The Middle Of Lock Assembly  1 € 13,64 € 17
NA DOPYT
47 84382 Intermediate Belt Combination  1 € 9,59 € 12
NA DOPYT
46 84380 Intermediate Belt Components（only for Integral seat backrest ）  1 € 20,25 € 25
NA DOPYT
39 REAR BACKREST WELD ASSEMBLY (Ref. č 39) 35384 REAR BACKREST WELD ASSEMBLY  1 € 63,55 € 78
SKLADOM
38 NUT M8 (Ref. č 38) 10919 NUT M8  4 € 2,15 € 3
SKLADOM
24 RIGHT BRACKET RADIATOR (Ref. č 24) 35013 RIGHT BRACKET RADIATOR  1 € 13,06 € 16
SKLADOM
23 FRONT RACK SUPPORT TUBE, R (Ref. č 23) 38212 FRONT RACK SUPPORT TUBE, R  1 € 16,86 € 21
SKLADOM
10 BOLT M8x20 (Ref. č 10) 10783 BOLT M8x20  2 € 2,40 € 3
SKLADOM
9 25056 BOLT M8X70  2 € 9,59 € 12
NA DOPYT
8 BUMPER BRACKET (Ref. č 8) 38215 BUMPER BRACKET  1 € 39,26 € 48
NA CESTE
7 TRESTLE 1 LEFT (Ref. č 7) 38213 TRESTLE 1 LEFT  1 € 10 € 12
SKLADOM
6 11103 BOLT M8X85  2 € 12,81 € 16
NA DOPYT
5 11102 BOLT M8X25  4 € 8,02 € 10
NA DOPYT
4 NUT M8 (Ref. č 4) 10882 NUT M8  18 € 2,40 € 3
SKLADOM
3 11101 BOLTM8X45  4 € 2,15 € 3
NA DOPYT
2 REAR RACK (Ref. č 2) 25654 REAR RACK  1 € 105,37 € 130
SKLADOM
11 Hexagon Flange Bolt M8×1.25×55 (Ref. č 11) 10780 Hexagon Flange Bolt M8×1.25×55  6 € 9,59 € 12
SKLADOM
13 BOLT M8X25 (Ref. č 13) 10059 BOLT M8X25  6 € 2,40 € 3
SKLADOM
22 FRONT RACK SUPPORT TUBE, L (Ref. č 22) 38211 FRONT RACK SUPPORT TUBE, L  1 € 16,86 € 21
SKLADOM
21 LEFT BRACKET RADIATOR (Ref. č 21) 35012 LEFT BRACKET RADIATOR  1 € 13,06 € 16
NA CESTE
20 Bolt M6x12 (Ref. č 20) 10140B Bolt M6x12  9 € 2,40 € 3
SKLADOM
19 HOLDER,L.PULLIN BRACKET (Ref. č 19) 27386 HOLDER,L.PULLIN BRACKET  1 € 19,75 € 24
SKLADOM
18 HOLDER,R.PULLIN BRACKET (Ref. č 18) 27387 HOLDER,R.PULLIN BRACKET  1 € 19,75 € 24
SKLADOM
17 BRACKET,PULLING (Ref. č 17) 35848 BRACKET,PULLING  1 € 44,05 € 54
NA DOPYT
16 R/B 36514 REAR REFLECTOR (Ref. č 16) 35705 R/B 36514 REAR REFLECTOR  2 € 2,89 € 4
SKLADOM
15 WASHER 8 (Ref. č 15) 26009 WASHER 8  8 € 7,19 € 9
SKLADOM
14 TRESTLE 1 RIGHT (Ref. č 14) 38214 TRESTLE 1 RIGHT  1 € 10 € 12
SKLADOM
1 FRONT RACK (Ref. č 1) 38210 FRONT RACK  1 € 72,40 € 89
SKLADOM
Kód produktu LINHAI_4_434_570_PROMAX-T3
ZNACKA: LINHAI
typ rozkresu: BODY PARTS
TYP: LINHAI 570
MODEL: 570 PROMAX T3
