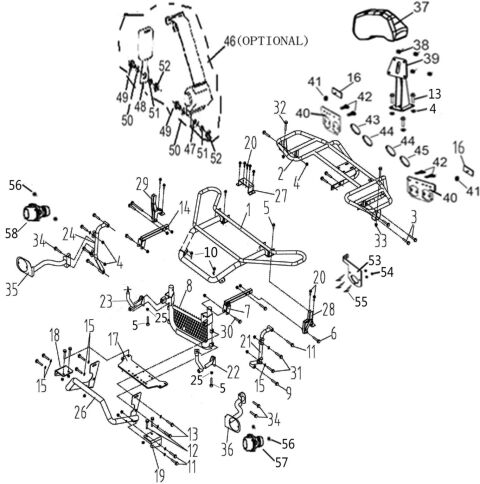

BUMPER AND RACK (EFI T3, HOMOLOGATED)

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_5_V22b_500_PROMAX_T3b
MODEL:
500 PROMAX T3b 500 PROMAX T3b
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
41 11454 NUT M6  8 € 2,40 € 2,90
NA DOPYT
47 84382 Intermediate Belt Combination  1 € 9,59 € 11,60
NA DOPYT
46 84380 Intermediate Belt Components（only for Integral seat backrest ）  1 € 20,25 € 24,50
NA DOPYT
37 BACKREST (SKIN TYPE) (Ref. č 37) 35721 BACKREST (SKIN TYPE)  1 € 36,94 € 44,70
NA DOPYT
33 11064 NUT M16X1.5  2 € 9,59 € 11,60
NA DOPYT
48 84381 In The Middle Of Lock Assembly  1 € 13,64 € 16,50
NA DOPYT
49 26916 Bolt  4 € 11,74 € 14,20
NA DOPYT
50 26917 Spring Washer  8 € 7,02 € 8,50
NA DOPYT
36 38238 FRONT INDICATOR LIGHT BRACKET,L (FOR T3)  1
NA DOPYT
Detail
35 38237 FRONT INDICATOR LIGHT BRACKET,R (FOR T3)  1
NA DOPYT
Detail
24 RIGHT BRACKET RADIATOR (Ref. č 24) 38236 RIGHT BRACKET RADIATOR  1 € 23,14 € 28
NA DOPYT
21 LEFT BRACKET RADIATOR (Ref. č 21) 38235 LEFT BRACKET RADIATOR  1 € 23,14 € 28
NA DOPYT
58 TURNLIGHT, R (Ref. č 58) 83364 TURNLIGHT, R  1 € 41,82 € 50,60
SKLADOM
57 TURNLIGHT, L (Ref. č 57) 83365 TURNLIGHT, L  1 € 41,65 € 50,40
SKLADOM
56 10109 NUT M5  3 € 9,59 € 11,60
NA DOPYT
54 10109 NUT M5  3 € 9,59 € 11,60
NA DOPYT
55 10427 Cross Recessed Pan Head Screw M5×35  3 € 8,51 € 10,30
NA DOPYT
53 71070 BRACKET,OUTPUT SOCKET  1 € 18,02 € 21,80
NA DOPYT
52 26919 Nut  8 € 11,74 € 14,20
NA DOPYT
25 26919 Nut  2 € 11,74 € 14,20
NA DOPYT
45 TURN INDICATE LIGHT,L,RR (Ref. č 45) 73324 TURN INDICATE LIGHT,L,RR  1 € 31,07 € 37,60
SKLADOM
44 TAIL LAMP RED (Ref. č 44) 73320 TAIL LAMP RED  2 € 40,74 € 49,30
SKLADOM
43 TURN INDICATE LIGHT, R, RR (Ref. č 43) 73319 TURN INDICATE LIGHT, R, RR  1 € 30,50 € 36,90
NA CESTE
42 BOLT M6X16 (Ref. č 42) 10183B BOLT M6X16  4 € 7,19 € 8,70
SKLADOM
40 BRACKER, TAILLIGHT (Ref. č 40) 27631 BRACKER, TAILLIGHT  2 € 13,88 € 16,80
SKLADOM
39 REAR BACKREST WELD ASSEMBLY (Ref. č 39) 35384 REAR BACKREST WELD ASSEMBLY  1 € 63,55 € 76,90
SKLADOM
38 NUT M8 (Ref. č 38) 10919 NUT M8  4 € 2,15 € 2,60
SKLADOM
51 26918 Washer  8 € 7,02 € 8,50
NA DOPYT
32 11105 BOLT M6X35  2 € 8,76 € 10,60
NA DOPYT
31 11539 Bolt M6X25  4 € 2,40 € 2,90
NA DOPYT
13 BOLT M8X25 (Ref. č 13) 10059 BOLT M8X25  6 € 2,40 € 2,90
SKLADOM
12 BOLT M8x20 (Ref. č 12) 10783 BOLT M8x20  4 € 2,40 € 2,90
SKLADOM
10 BOLT M8x20 (Ref. č 10) 10783 BOLT M8x20  2 € 2,40 € 2,90
SKLADOM
11 Hexagon Flange Bolt M8×1.25×55 (Ref. č 11) 10780 Hexagon Flange Bolt M8×1.25×55  6 € 9,59 € 11,60
SKLADOM
9 25056 BOLT M8X70  2 € 9,59 € 11,60
NA DOPYT

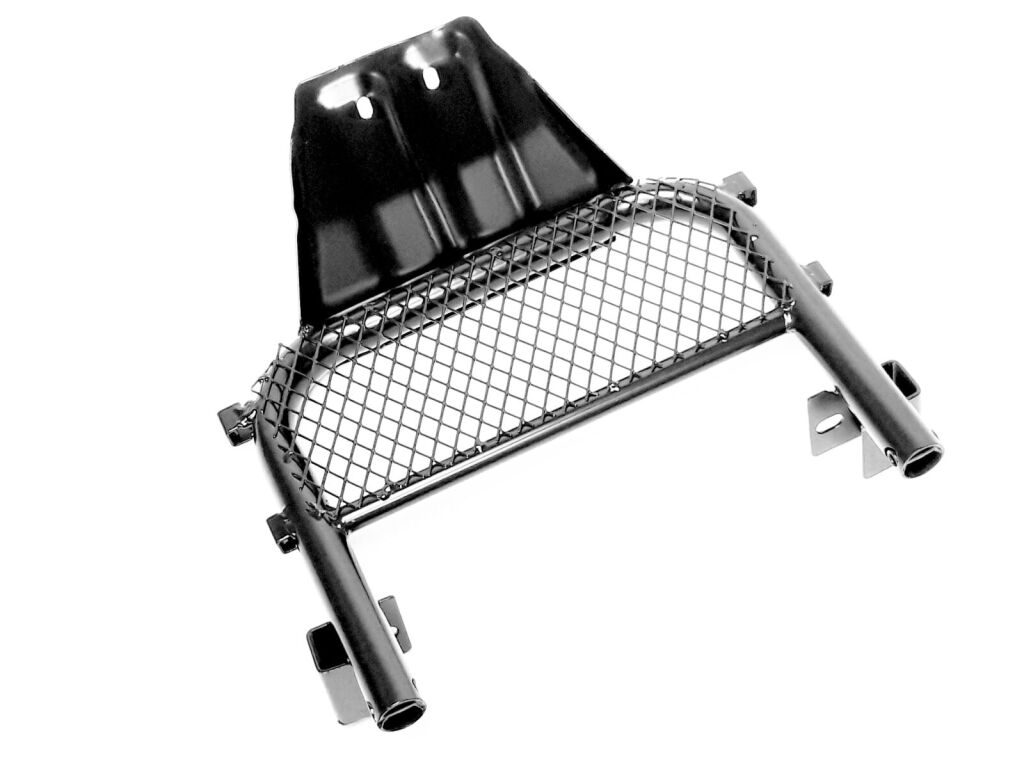

8 BUMPER BRACKET (Ref. č 8) 38215 BUMPER BRACKET  1 € 39,26 € 47,50
SKLADOM
7 TRESTLE 1 LEFT (Ref. č 7) 38213 TRESTLE 1 LEFT  1 € 10 € 12,10
SKLADOM
6 11103 BOLT M8X85  2 € 12,81 € 15,50
NA DOPYT
5 11102 BOLT M8X25  6 € 8,02 € 9,70
NA DOPYT
4 NUT M8 (Ref. č 4) 10882 NUT M8  18 € 2,40 € 2,90
SKLADOM
3 11101 BOLTM8X45  4 € 8,76 € 10,60
NA DOPYT
2 REAR RACK (Ref. č 2) 25300 REAR RACK  1 € 78,10 € 94,50
SKLADOM
14 TRESTLE 1 RIGHT (Ref. č 14) 38214 TRESTLE 1 RIGHT  1 € 10 € 12,10
SKLADOM
15 WASHER 8 (Ref. č 15) 26009 WASHER 8  8 € 7,19 € 8,70
SKLADOM
16 REAR REFLECTOR (Ref. č 16) 35705 REAR REFLECTOR  2 € 2,89 € 3,50
SKLADOM
30 BOLT.FLANGE (Ref. č 30) 10403 BOLT.FLANGE  2 € 2,40 € 2,90
SKLADOM
29 TRESTLE, R (Ref. č 29) 35029 TRESTLE, R  1 € 14,21 € 17,20
SKLADOM
28 TRESTLE L (Ref. č 28) 35028 TRESTLE L  1 € 14,13 € 17,10
NA CESTE
27 AUXILIARY RELAY BRACKET (Ref. č 27) 35532 AUXILIARY RELAY BRACKET  1 € 10,17 € 12,30
SKLADOM
26 FRONT BUMPER (Ref. č 26) 27443 FRONT BUMPER  1 € 40,41 € 48,90
NA CESTE
23 FRONT RACK SUPPORT TUBE, R (Ref. č 23) 38212 FRONT RACK SUPPORT TUBE, R  1 € 16,86 € 20,40
SKLADOM
22 FRONT RACK SUPPORT TUBE, L (Ref. č 22) 38211 FRONT RACK SUPPORT TUBE, L  1 € 16,86 € 20,40
SKLADOM
20 Bolt M6x12 (Ref. č 20) 10140B Bolt M6x12  9 € 2,40 € 2,90
NA DOPYT
19 HOLDER,L.PULLIN BRACKET (Ref. č 19) 27386 HOLDER,L.PULLIN BRACKET  1 € 19,75 € 23,90
SKLADOM
18 HOLDER,R.PULLIN BRACKET (Ref. č 18) 27387 HOLDER,R.PULLIN BRACKET  1 € 19,75 € 23,90
SKLADOM
17 BRACKET,PULLING (Ref. č 17) 35848 BRACKET,PULLING  1 € 44,05 € 53,30
SKLADOM
1 FRONT RACK (Ref. č 1) 38210 FRONT RACK  1 € 72,40 € 87,60
SKLADOM
34 BOLT M6X16 (Ref. č 34) 10183B BOLT M6X16  4 € 7,19 € 8,70
SKLADOM
