BRAKING system

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_264_UT10_CREW_U3
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 FR BRAKE ASSY (Ref. č 1) U01E11200001 FR BRAKE ASSY  1 € 108,43 € 133
SKLADOM
20 Bolt M6×16 (Ref. č 20) GBT005789007 Bolt M6×16  5 € 2,18 € 3
SKLADOM

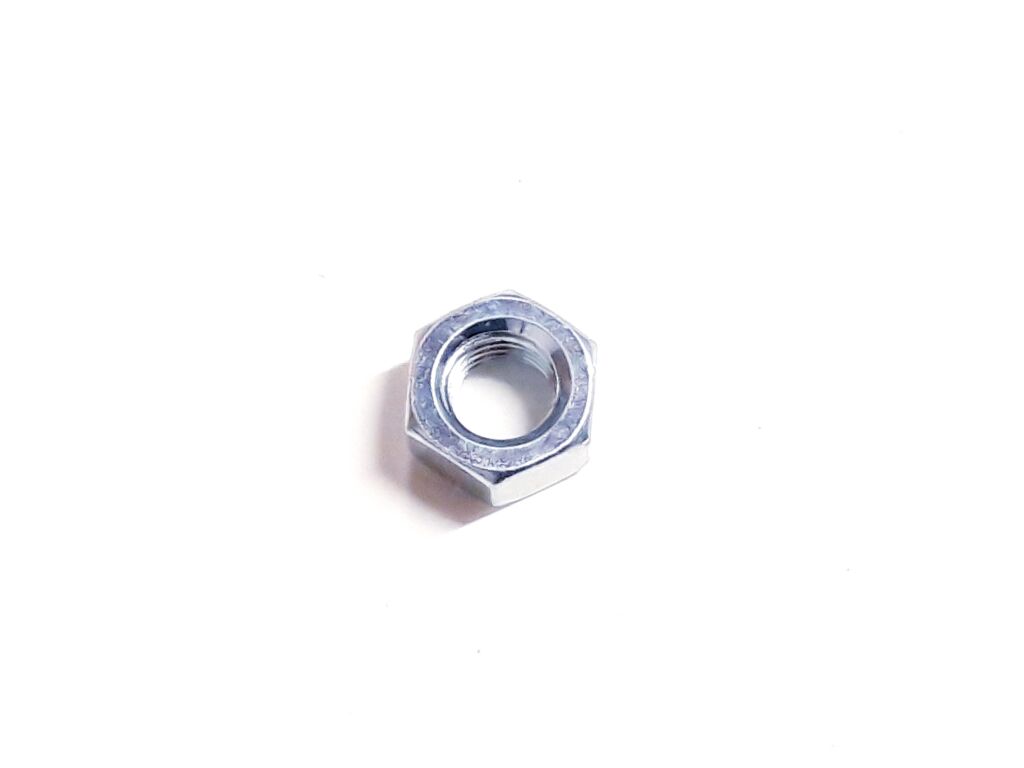

21 NUT M6 (Ref. č 21) GBT061771002 NUT M6  3 € 2,18 € 3
SKLADOM
22 Hexagon flange bolt M10×1.25×25 (Ref. č 22) GBT005789026 Hexagon flange bolt M10×1.25×25  8 € 2,48 € 3
SKLADOM
23 HEXAGON FLANGE BOLT M6×20 (Ref. č 23) GBT005789008 HEXAGON FLANGE BOLT M6×20  1 € 2,18 € 3
SKLADOM

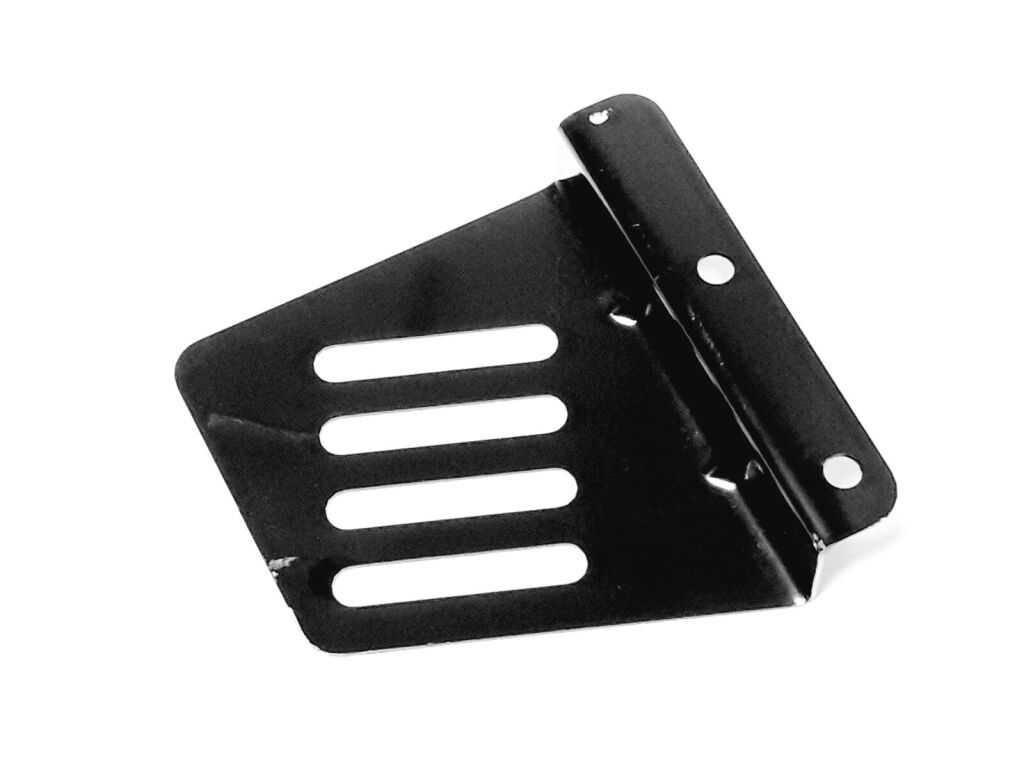

24 U01_MAIN BRAKE PUMP GUARD BOARD (Ref. č 24) U01C00003002 U01_MAIN BRAKE PUMP GUARD BOARD  1 € 15,79 € 19
SKLADOM
25 Hexagon flange bolt M8×25 (Ref. č 25) GBT005789016 Hexagon flange bolt M8×25  2 € 2,18 € 3
SKLADOM
26 SCREW M10×1.25×65 (Ref. č 26) GBT000701008 SCREW M10×1.25×65  1 € 2,18 € 3
SKLADOM
27 Nylon bushing (Ref. č 27) A03E12201001 Nylon bushing  2 € 2,18 € 3
SKLADOM
28 U01_brake pedal spring 65Mn (Ref. č 28) U01E12003001 U01_brake pedal spring 65Mn  1 € 2,18 € 3
SKLADOM
29 U01_lining sleeve (Ref. č 29) U01E12004001 U01_lining sleeve  1 € 2,18 € 3
SKLADOM
30 U03-E120100-DB0-00 Brake pedal(Black)  1 € 18,43 € 23
NA DOPYT
31 WASHER 10 (Ref. č 31) GBT000971005 WASHER 10  1 € 2,18 € 3
SKLADOM
32 SPRING WASHER 10 (Ref. č 32) GB0000093005 SPRING WASHER 10  1 € 2,18 € 3
SKLADOM
33 NUT M10×1.25 (Ref. č 33) GBT006170001 NUT M10×1.25  1 € 2,48 € 3
SKLADOM
34 U03-E120300-DB0-00 Brake pedal holder assy  1 € 15,79 € 19
NA DOPYT
35 BOLT M8×20 (Ref. č 35) GBT005789015 BOLT M8×20  3 € 2,18 € 3
SKLADOM
19 Bolt M6×12 (Ref. č 19) GBT005789006 Bolt M6×12  4 € 2,18 € 3
SKLADOM
18 BOLT,FRONT BRAKE DISC (Ref. č 18) A03E10004001 BOLT,FRONT BRAKE DISC  16 € 2,48 € 3
SKLADOM
2 BRAKE PAD CLIP (Ref. č 2) S05E15C50001 BRAKE PAD CLIP  8 € 4,38 € 5
NA DOPYT
3 BRAKE PAD CLIP A (Ref. č 3) S05E15C60001 BRAKE PAD CLIP A  8 € 4,38 € 5
NA DOPYT
4 R/B S03E15A20002, FRONT BRAKE PAD (Ref. č 4) S03E15A20001 R/B S03E15A20002, FRONT BRAKE PAD  2 € 49,01 € 60
NA DOPYT
5 GASKET (Ref. č 5) A03E11012001 GASKET  11 € 2,18 € 3
SKLADOM
6 BOLT INNER OIL (Ref. č 6) A03E11011001 BOLT INNER OIL  4 € 4,01 € 5
SKLADOM
7 FR BRAKE OIL PIPE (Ref. č 7) U01E11700001 FR BRAKE OIL PIPE  1 € 42,73 € 53
SKLADOM
8 HYDRAULIC INDUCTION SWITCH (Ref. č 8) A03E11005001 HYDRAULIC INDUCTION SWITCH  1 € 39,75 € 49
SKLADOM
9 FL BRAKE OIL PIPE (Ref. č 9) U01E11600001 FL BRAKE OIL PIPE  1 € 31,24 € 38
SKLADOM
10 U03-E115000-000-00 Foot brake main pump assy  1 € 97,44 € 120
NA DOPYT
11 FRONT LEFT BRAKE ASSEMBLY (Ref. č 11) U01E11100001 FRONT LEFT BRAKE ASSEMBLY  1 € 113,14 € 139
SKLADOM
12 U03-E118000-000-00 Rear brake hose  1 € 147,36 € 181
NA DOPYT

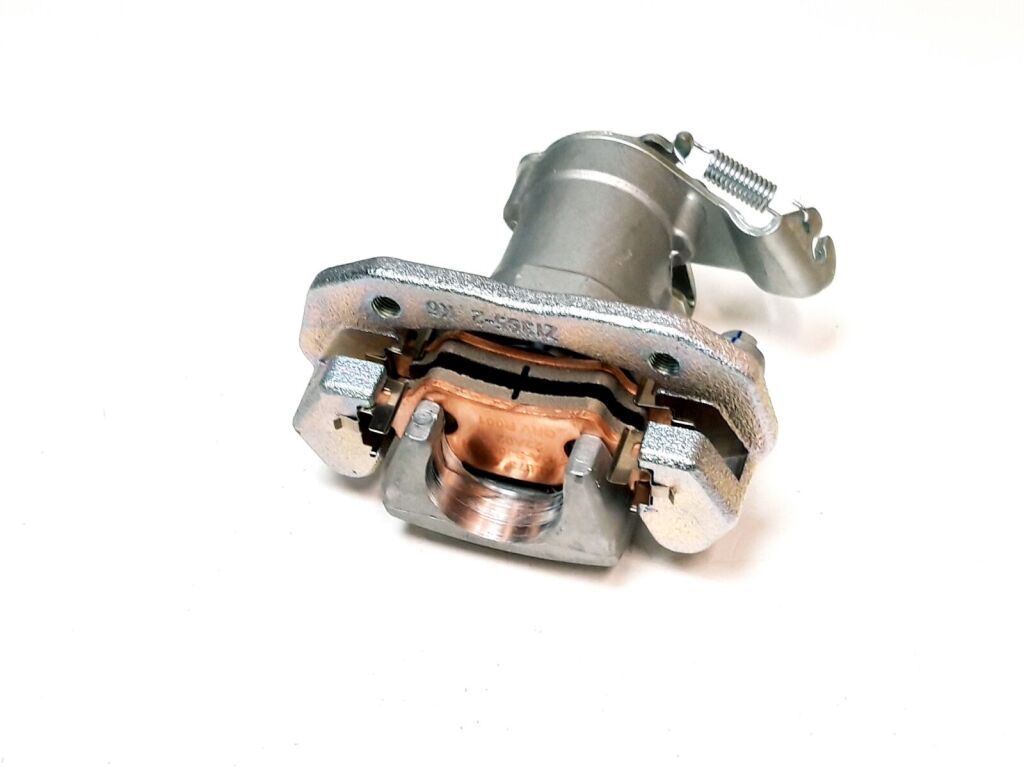

13 RL BRAKE ASSY (Ref. č 13) U05E11300001 RL BRAKE ASSY  1 € 146,28 € 180
SKLADOM

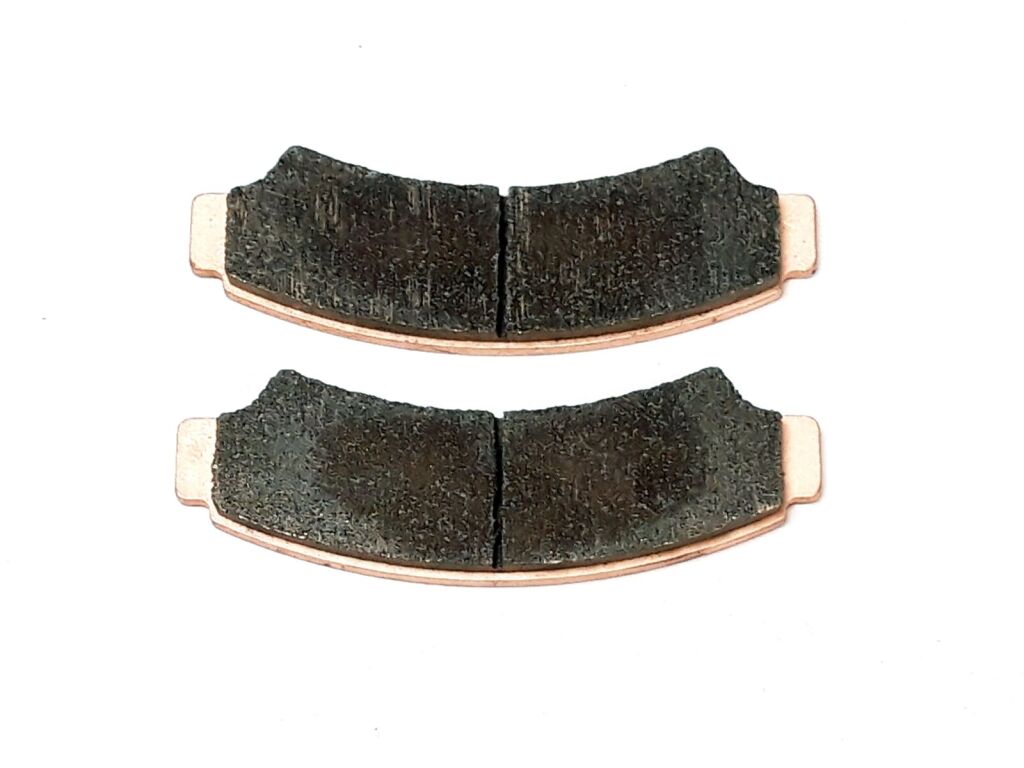

14 REAR BRAKE PAD ASSY (Ref. č 14) S05E15C20001 REAR BRAKE PAD ASSY  2 € 36,61 € 45
SKLADOM

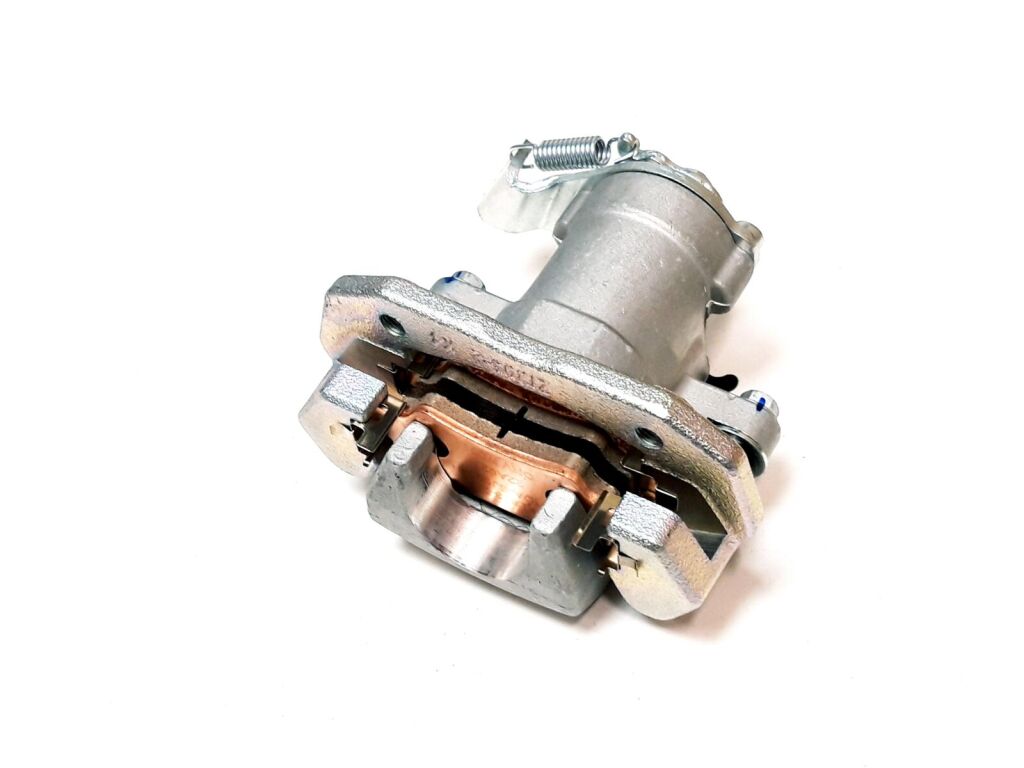

15 RR BRAKE ASSY (Ref. č 15) U05E11400001 RR BRAKE ASSY  1 € 146,28 € 180
SKLADOM
16 U03-E110000-000-00 Hydraulic brake assy  1 € 815,21 € 1 003
NA DOPYT
17 U01_FRONT BRAKE DISCφ248，PCD120 (Ref. č 17) U01E10001002 U01_FRONT BRAKE DISCφ248，PCD120  2 € 23,55 € 29
SKLADOM

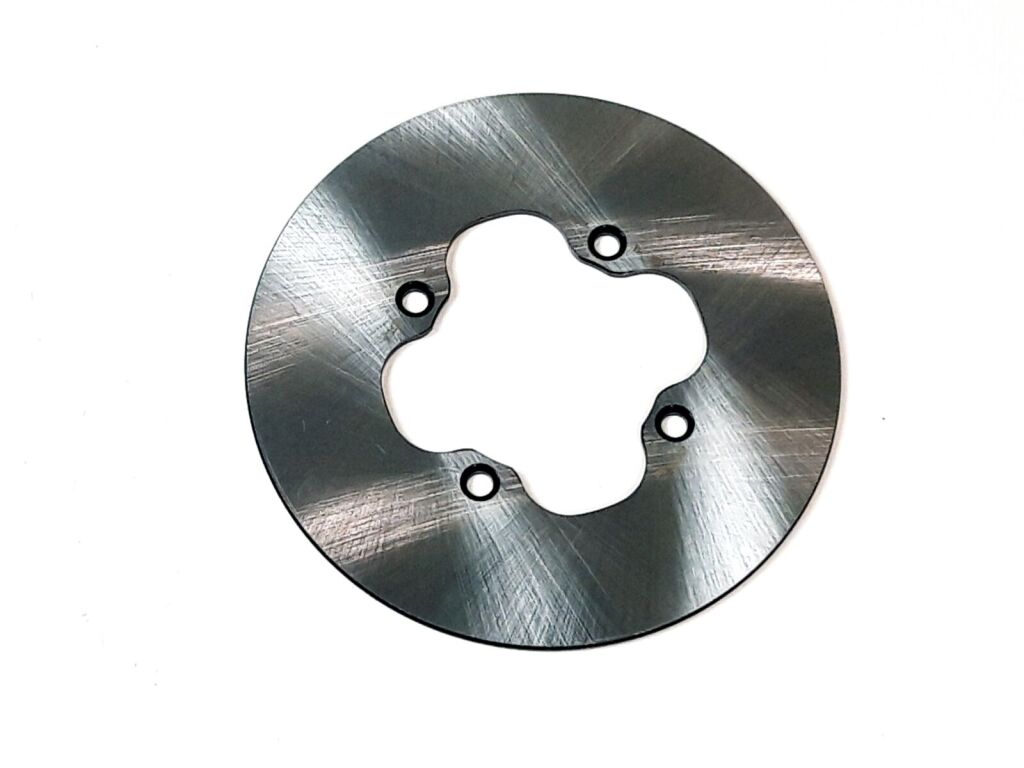

36 U01_REAR BRAKE DISCφ240，PCD140 (Ref. č 36) U01E10002002 U01_REAR BRAKE DISCφ240，PCD140  2 € 21,49 € 26
SKLADOM
Kód produktu SEGWAY_2_264_UT10_CREW_U3
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT10 Crew U3
