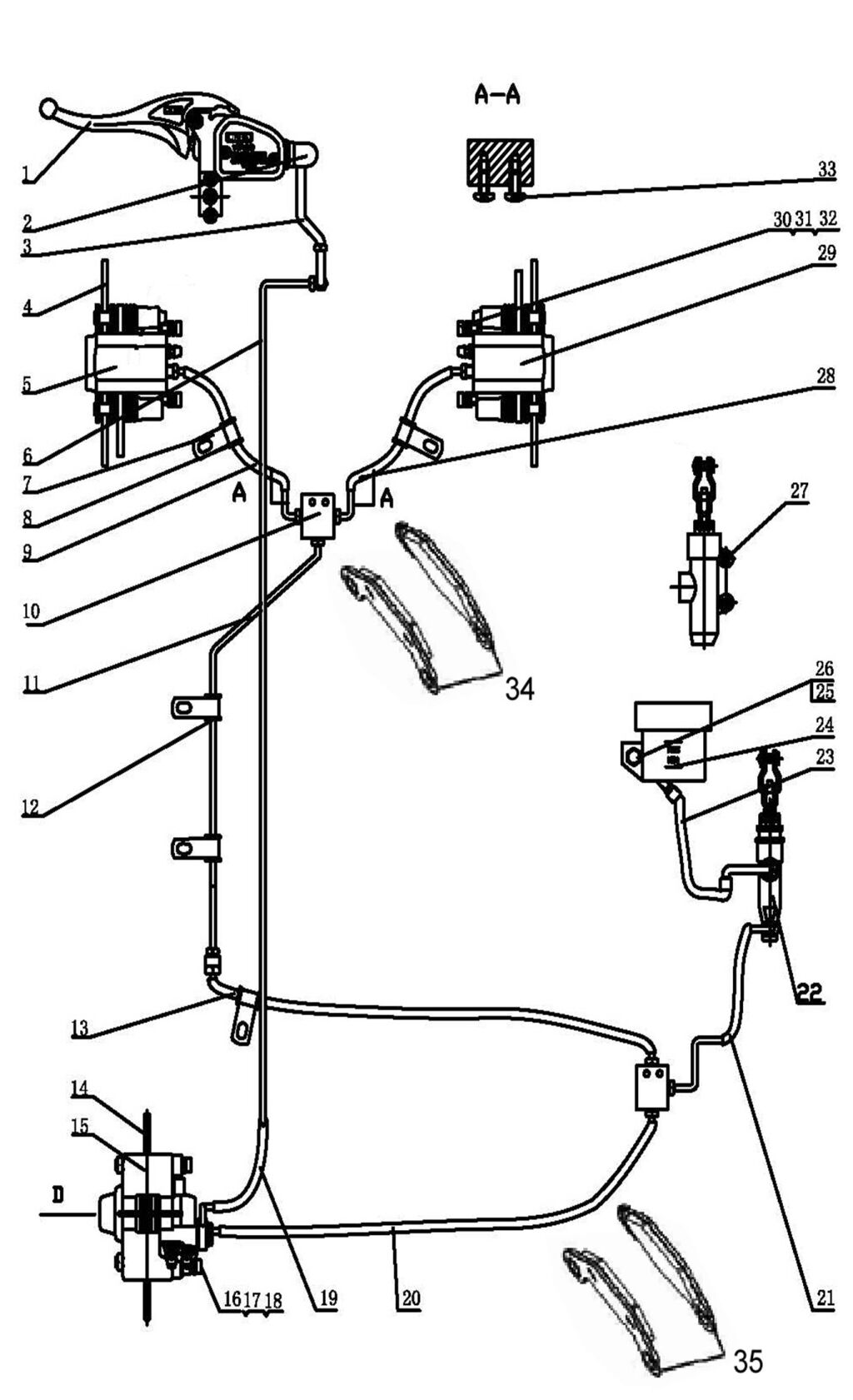

BRAKING SYSTEM （FOR EUROPE）

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_2_215_ATV200-D_T3b
MODEL:
200 T3b 200 T3b
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 BRAKE LEVER (Ref. č 1) 2211120 BRAKE LEVER  1 € 14,13 € 17,10
SKLADOM
21 FOOT BRAKE HOSE (Ref. č 21) 25122 FOOT BRAKE HOSE  1 € 36,94 € 44,70
SKLADOM
22 REAR BRAKE CYLINDER(SEE THE DETAIL ON P24.1(4) ) (Ref. č 22) 70481 REAR BRAKE CYLINDER(SEE THE DETAIL ON P24.1(4) )  1 € 96,53 € 116,80
SKLADOM
24 RESERVOIR (Ref. č 24) 25299 RESERVOIR  1 € 9,83 € 11,90
SKLADOM
25 10109 NUT M5  1 € 9,59 € 11,60
NA DOPYT
26 10108 BOLT M5X12  1 € 8,76 € 10,60
NA DOPYT
27 BOLT M6X20 (Ref. č 27) 10110 BOLT M6X20  2 € 2,40 € 2,90
SKLADOM
28 R/B 22229 FRONT BRAKE HOSE (Ref. č 28) 22228 R/B 22229 FRONT BRAKE HOSE  1 € 39,83 € 48,20
NA DOPYT
29 22227 BRAKE CALIPER RIGHT FRONT  1
NA DOPYT
Detail
30 Hexagon Bolt M8×1.25×25 10.9 (Ref. č 30) 10105 Hexagon Bolt M8×1.25×25 10.9  4 € 8,02 € 9,70
SKLADOM
31 WASHER 8 (Ref. č 31) 10106 WASHER 8  4 € 2,40 € 2,90
SKLADOM
32 WASHER 8 (Ref. č 32) 10068 WASHER 8  4 € 7,19 € 8,70
SKLADOM
33 SCREW M5x15 (Ref. č 33) 10111 SCREW M5x15  6 € 8,76 € 10,60
SKLADOM

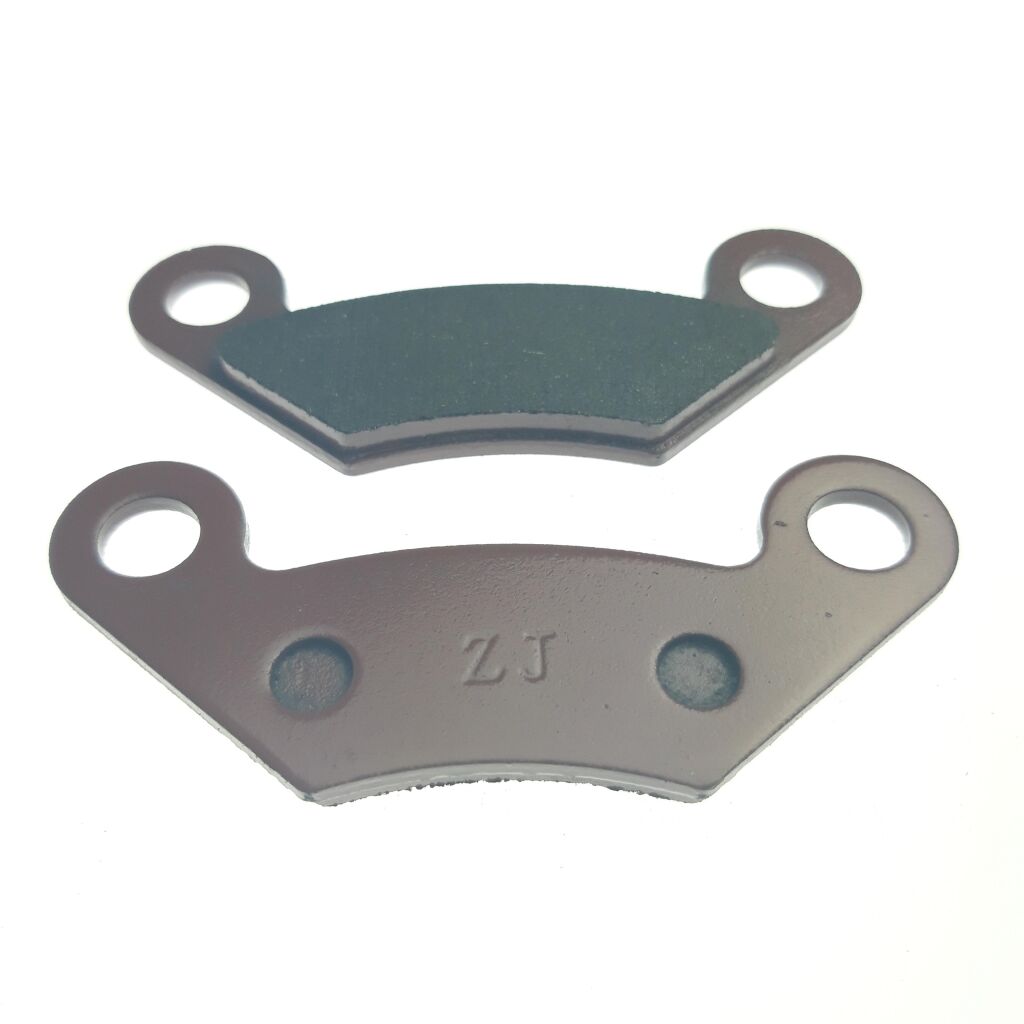

34 BRAKE PAD FRONT LINHAI 200 (Ref. č 34) 3220505a BRAKE PAD FRONT LINHAI 200  4 € 10,83 € 13,10
SKLADOM
35 BRAKE PADS LINHAI REAR 300, 200 (Ref. č 35) 22111 BRAKE PADS LINHAI REAR 300, 200  2 € 11,82 € 14,30
SKLADOM
14 REAR DISC BRAKE ATV200-D T3b (Ref. č 14) 32115 REAR DISC BRAKE ATV200-D T3b  1 € 40,91 € 49,50
SKLADOM
20 REAR BRAKE HOSE 3 (Ref. č 20) 25242 REAR BRAKE HOSE 3  1 € 40,17 € 48,60
SKLADOM
19 REAR BRAKE HOSE 2 (Ref. č 19) 25240 REAR BRAKE HOSE 2  1 € 41,74 € 50,50
SKLADOM
18 WASHER 10 (Ref. č 18) 10019 WASHER 10  2 € 2,40 € 2,90
SKLADOM
2 29644 MASTER CYLINDER  1 € 46,45 € 56,20
NA DOPYT
3 HAND BRAKE HOSE (Ref. č 3) 27683 HAND BRAKE HOSE  1 € 23,47 € 28,40
SKLADOM ZA 10 dní
4 FRONT BRAKE DISC (Ref. č 4) 22226 FRONT BRAKE DISC  2 € 36,45 € 44,10
SKLADOM
5 22114 BRAKE CALIPER LEFT FRONT  1
NA DOPYT
Detail
6 REAR BRAKE HOSE (Ref. č 6) 22103 REAR BRAKE HOSE  1 € 34,13 € 41,30
SKLADOM
13 REAR BRAKE HOSE (Ref. č 13) 22103 REAR BRAKE HOSE  1 € 34,13 € 41,30
SKLADOM
7 CLAMP (Ref. č 7) 32104 CLAMP  5 € 2,40 € 2,90
NA DOPYT
8 RUBBER TUBE 1 (Ref. č 8) 32105 RUBBER TUBE 1  3 € 2,81 € 3,40
SKLADOM
9 FRONT BRAKE HOSE1 (Ref. č 9) 32103 FRONT BRAKE HOSE1  1 € 44,63 € 54
NA DOPYT
10 BRAKE LINE COUPLER (Ref. č 10) 32107 BRAKE LINE COUPLER  2 € 10,83 € 13,10
SKLADOM
11 TUB DISKBRAKE FRONT (Ref. č 11) 32108 TUB DISKBRAKE FRONT  1 € 36,94 € 44,70
SKLADOM
12 RUBBER TUBE 2 (Ref. č 12) 32109 RUBBER TUBE 2  2 € 4,63 € 5,60
SKLADOM
15 REAR BRAKE CALIPER (Ref. č 15) 22105 REAR BRAKE CALIPER  1 € 47,85 € 57,90
SKLADOM ZA 10 dní
16 BOLT M10X1.25X83 (Ref. č 16) 10102 BOLT M10X1.25X83  2 € 2,40 € 2,90
SKLADOM
17 NUT M10X1.25 (Ref. č 17) 10015 NUT M10X1.25  2 € 2,40 € 2,90
SKLADOM
23 25262 RESERVOIR HOSE ATV200-D T3b  1
NA DOPYT
Detail
