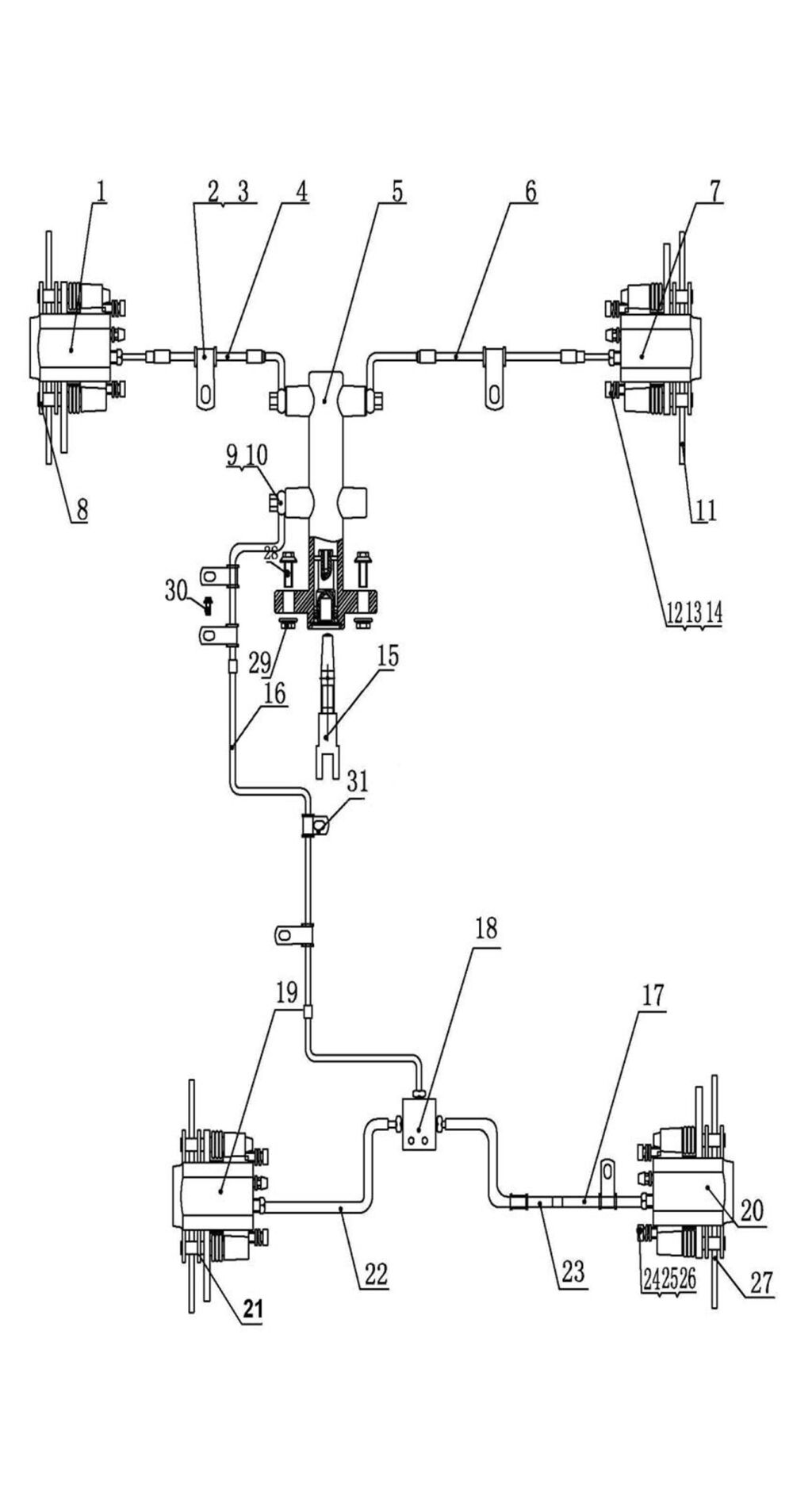

BRAKING SYSTEM

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost

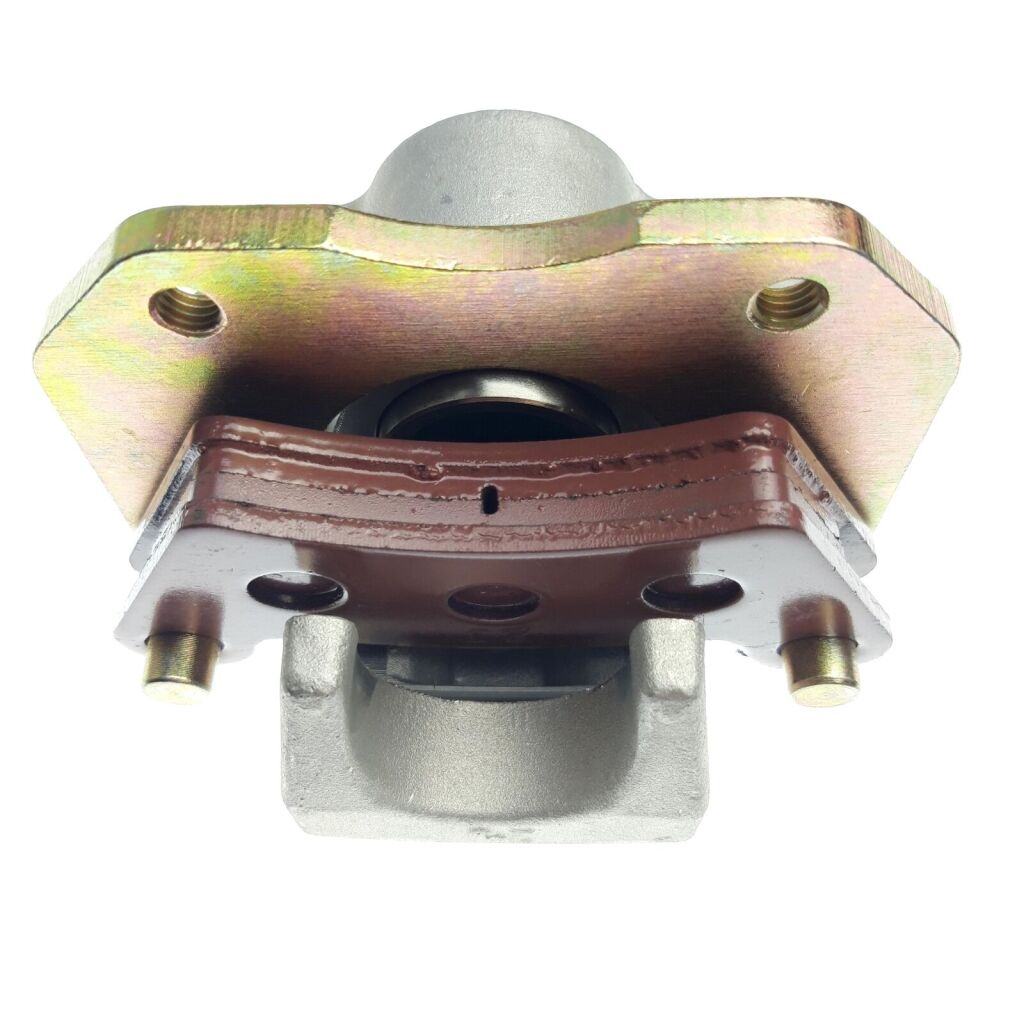

1 BRAKE CALIPER, FR, L (SEE THE DETAIL ON P25) (Ref. č 1) 26822 BRAKE CALIPER, FR, L (SEE THE DETAIL ON P25)  1 € 81,32 € 98,40
SKLADOM
20 BRAKE CALIPER ，RR，R (SEE THE DETAIL ON P（WITH DROPPING DEVICE) (Ref. č 20) 27749 BRAKE CALIPER ，RR，R (SEE THE DETAIL ON P（WITH DROPPING DEVICE)  1 € 90,50 € 109,50
SKLADOM
24 Hexagon Bolt M8×1.25×25 10.9 (Ref. č 24) 10105 Hexagon Bolt M8×1.25×25 10.9  4 € 8,02 € 9,70
SKLADOM
21 BRAKE PADS LINHAI - FRONT 300 - F/R M550,M565,M570 Brzdové destičky přední (Ref. č 21) 22245 BRAKE PADS LINHAI - FRONT 300 - F/R M550,M565,M570 Brzdové destičky přední  4 € 12,07 € 14,60
SKLADOM
22 27116 RUBBER TUBE 2，RR  1 € 51,57 € 62,40
NA DOPYT
23 27117 RUBBER TUBE 3，RR  1 € 40,58 € 49,10
NA DOPYT
25 WASHER 8 (Ref. č 25) 10106 WASHER 8  4 € 2,40 € 2,90
SKLADOM
26 WASHER 8 (Ref. č 26) 10068 WASHER 8  4 € 7,19 € 8,70
SKLADOM
27 DISC BRAKE, RR (Ref. č 27) 26871 DISC BRAKE, RR  2 € 43,47 € 52,60
SKLADOM

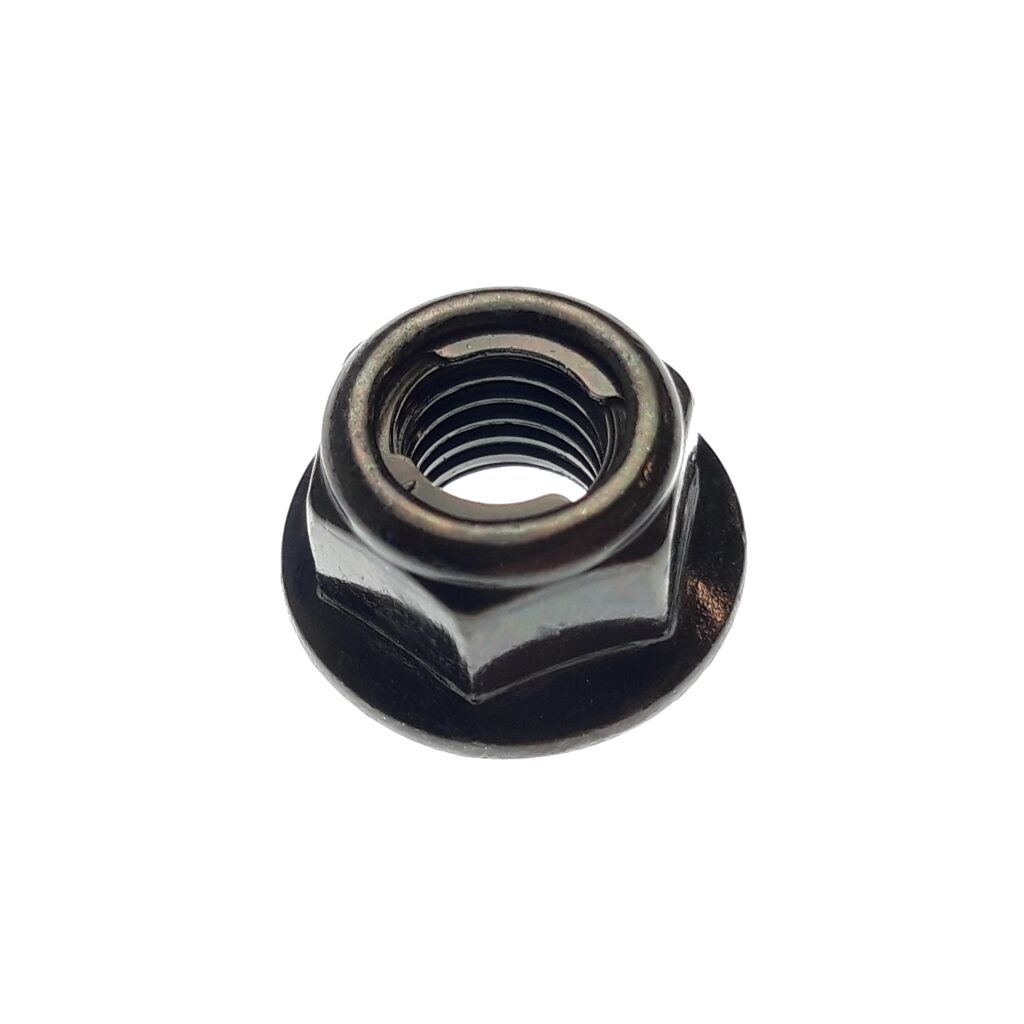

29 PREVAILING TORQUE TYPE AII - METAL HEXAGON NUT M8 (Ref. č 29) 10794 PREVAILING TORQUE TYPE AII - METAL HEXAGON NUT M8  2 € 40,66 € 49,20
SKLADOM
30 BOLT M6×16 (Ref. č 30) 10189 BOLT M6×16  4 € 1,98 € 2,40
SKLADOM
12 Hexagon Bolt M8×1.25×25 10.9 (Ref. č 12) 10105 Hexagon Bolt M8×1.25×25 10.9  4 € 8,02 € 9,70
SKLADOM
15 26830 CALIPER SHELL , L  1 € 25,54 € 30,90
NA DOPYT
28 11030 BOLT M8X35 OF M550 E4  2 € 2,40 € 2,90
NA DOPYT
19 27748 BRAKE CALIPER ，RR，L (SEE THE DETAIL ON P26-2A）（WITH DROPPING DEVICE)  1 € 70,41 € 85,20
NA DOPYT
18 BRAKE LINE COUPLER (Ref. č 18) 32107 BRAKE LINE COUPLER  1 € 10,83 € 13,10
SKLADOM

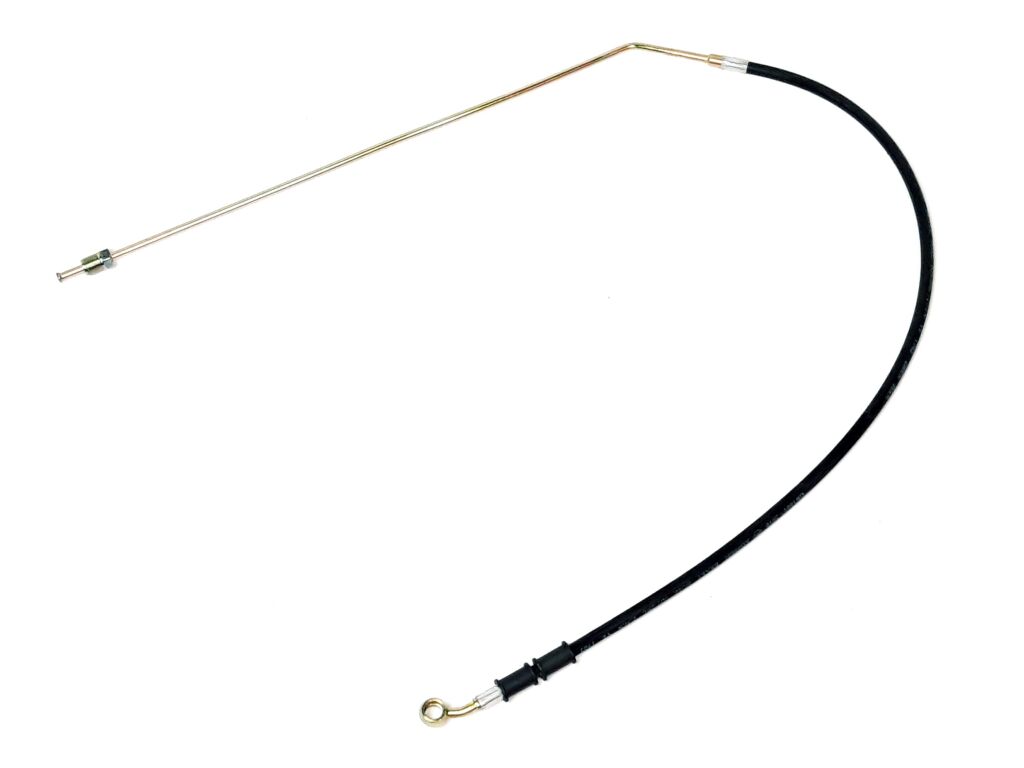

17 RUBBER TUBE 1，RR (Ref. č 17) 27115 RUBBER TUBE 1，RR  1 € 53,39 € 64,60
NA DOPYT
2 21811 clip  7 € 13,80 € 16,70
NA DOPYT
3 RUBBER TUBE 1 (Ref. č 3) 32105 RUBBER TUBE 1  7 € 2,81 € 3,40
SKLADOM
4 RUBER TUBE 1, FR (Ref. č 4) 26840 RUBER TUBE 1, FR  1 € 39,01 € 47,20
SKLADOM
5 26841 MASTER BREAKE CYLINDER (SEE THE DETAIL ON P31）  1 € 90,50 € 109,50
NA DOPYT
6 RUBBER TUBE2, FR (Ref. č 6) 26857 RUBBER TUBE2, FR  1 € 35,45 € 42,90
SKLADOM
7 BRAKE CALIPER, FR, R (Ref. č 7) 26858 BRAKE CALIPER, FR, R  1 € 93,64 € 113,30
SKLADOM ZA 16 dní
8 INSIDE/OUTSIDE PAD (Ref. č 8) 26823 INSIDE/OUTSIDE PAD  4 € 11,90 € 14,40
SKLADOM
9 70550 OIL BOLT  3 € 9,01 € 10,90
NA DOPYT
10 70553 WASHER  6 € 3,64 € 4,40
NA DOPYT

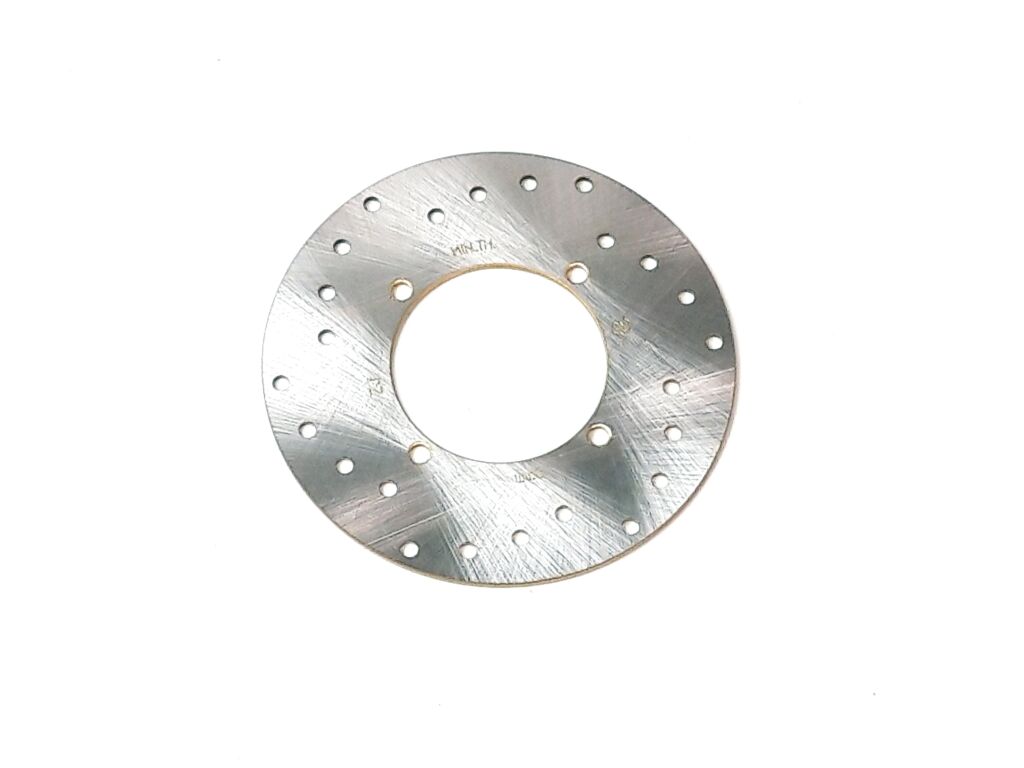

11 Front Disk (Ref. č 11) 27298 Front Disk  2 € 44,63 € 54
NA CESTE
16 RUBBER TUBE ，RR (Ref. č 16) 27114 RUBBER TUBE ，RR  1 € 49,92 € 60,40
SKLADOM
31 27118 CLAMP2  1 € 2,40 € 2,90
NA DOPYT
13 WASHER 8 (Ref. č 13) 10106 WASHER 8  4 € 2,40 € 2,90
SKLADOM
14 WASHER 8 (Ref. č 14) 10068 WASHER 8  4 € 7,19 € 8,70
SKLADOM
