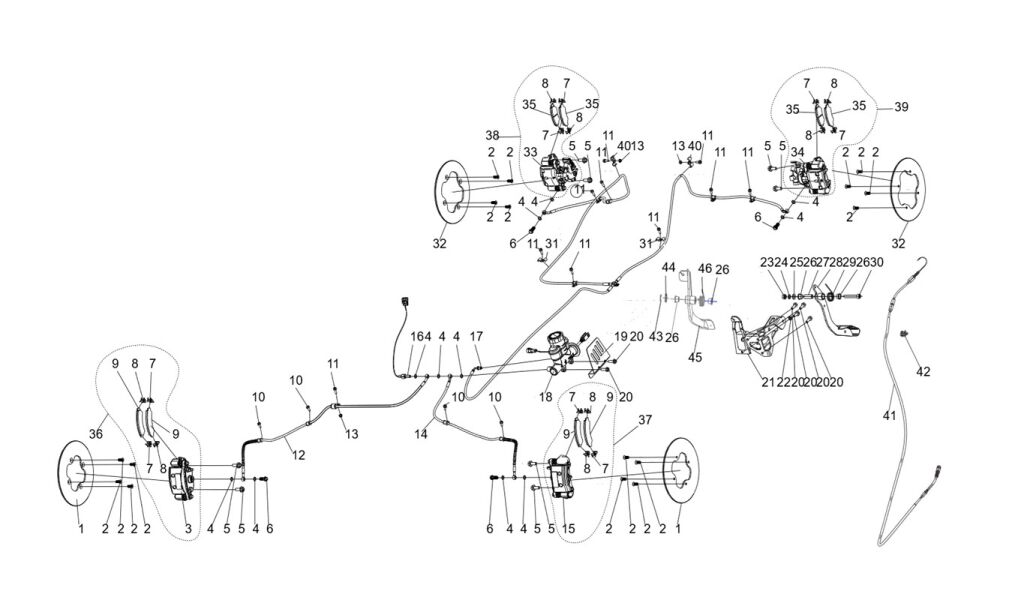

BRAKE SYSTEM.

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_224_UT6
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
46 U06-F100300-000-00 RETURN SPRING  1 € 2,18 € 3
NA DOPYT
43 OPEN RETAINER RING 12 (Ref. č 43) GB0000896005 OPEN RETAINER RING 12  1 € 2,48 € 3
SKLADOM
42 WIRE CLIP (Ref. č 42) T05000001003 WIRE CLIP  1 € 2,18 € 3
SKLADOM
39 RR BRAKE ASSY (Ref. č 39) U05E11400001 RR BRAKE ASSY  1 € 146,28 € 180
SKLADOM
38 RL BRAKE ASSY (Ref. č 38) U05E11300001 RL BRAKE ASSY  1 € 146,28 € 180
SKLADOM
37 FRONT LEFT BRAKE ASSEMBLY (Ref. č 37) U01E11100001 FRONT LEFT BRAKE ASSEMBLY  1 € 113,14 € 139
SKLADOM
36 FR BRAKE ASSY (Ref. č 36) U01E11200001 FR BRAKE ASSY  1 € 108,43 € 133
SKLADOM
35 REAR BRAKE PAD ASSY (Ref. č 35) S05E15C20001 REAR BRAKE PAD ASSY  4 € 36,61 € 45
SKLADOM
31 S01E10200001 DOUBLE WIRE CLAMP A  2 € 2,48 € 3
NA DOPYT
30 SCREW M10×1.25×65 (Ref. č 30) GBT000701008 SCREW M10×1.25×65  1 € 2,18 € 3
SKLADOM
44 A- WASHER 14 (Ref. č 44) GBT000971007 A- WASHER 14  1 € 2,48 € 3
SKLADOM
1 U06-E100010-000-00 FRONT BRAKE DISC  2 € 18,37 € 23
NA DOPYT
12 U06-E117000-000-00 FRONT RIGHT BARKE PIPE  1 € 38,03 € 47
NA DOPYT
45 U06-F100100-DB0-00 ACCELERATOR PEDAL  1 € 15,32 € 19
NA DOPYT
41 U06-F100200-000-00 THROTTLE CABLE  1 € 7,08 € 9
NA DOPYT
40 U06-E100001-000-00 DOUBLE WIRE CLAMP A  2 € 2,18 € 3
NA DOPYT
34 U05E11410001 U05 RR BRAKE CALIPER BODY ASSY  1 € 122,45 € 151
NA DOPYT
33 U05E11310001 U05 RL BRAKE CALIPER BODY ASSY  1 € 122,45 € 151
NA DOPYT
32 U06-E100020-000-00 REAR BRAKE DISC  2 € 16,33 € 20
NA DOPYT
21 U06-E120300-DB0-00 BRAKE PADEL SEAT  1 € 28,60 € 35
NA DOPYT
17 U06-E118000-000-00 REAR BRAKE PIPE  1 € 114,46 € 141
NA DOPYT
14 U06-E116000-000-00 FRONT LEFT BRAKE PIPE  1 € 27,77 € 34
NA DOPYT
29 U01_brake pedal spring 65Mn (Ref. č 29) U01E12003001 U01_brake pedal spring 65Mn  1 € 2,18 € 3
SKLADOM
28 U03-E120100-DB0-00 Brake pedal(Black)  1 € 18,43 € 23
NA DOPYT
11 Bolt M6×16 (Ref. č 11) GBT005789007 Bolt M6×16  13 € 2,18 € 3
SKLADOM
10 Bolt M6×12 (Ref. č 10) GBT005789006 Bolt M6×12  4 € 2,18 € 3
SKLADOM
9 R/B S03E15A20002, FRONT BRAKE PAD (Ref. č 9) S03E15A20001 R/B S03E15A20002, FRONT BRAKE PAD  4 € 49,01 € 60
NA DOPYT
8 BRAKE PAD CLIP (Ref. č 8) S05E15C50001 BRAKE PAD CLIP  8 € 4,38 € 5
NA DOPYT
7 BRAKE PAD CLIP A (Ref. č 7) S05E15C60001 BRAKE PAD CLIP A  8 € 4,38 € 5
NA DOPYT
6 BOLT INNER OIL (Ref. č 6) A03E11011001 BOLT INNER OIL  4 € 4,01 € 5
SKLADOM
5 Hexagon flange bolt M10×1.25×25 (Ref. č 5) GBT005789026 Hexagon flange bolt M10×1.25×25  8 € 2,48 € 3
SKLADOM
4 GASKET (Ref. č 4) A03E11012001 GASKET  11 € 2,18 € 3
SKLADOM
3 FR CALIPER BRAKE (Ref. č 3) A03E11210001 FR CALIPER BRAKE  1 € 136,86 € 168
SKLADOM
13 NUT M6 (Ref. č 13) GBT061771002 NUT M6  3 € 2,18 € 3
SKLADOM
15 FL CALIPER BRAKE (Ref. č 15) A03E11110001 FL CALIPER BRAKE  1 € 136,86 € 168
SKLADOM
16 HYDRAULIC INDUCTION SWITCH (Ref. č 16) A03E11005001 HYDRAULIC INDUCTION SWITCH  1 € 39,75 € 49
SKLADOM
27 U01_lining sleeve (Ref. č 27) U01E12004001 U01_lining sleeve  1 € 2,18 € 3
SKLADOM
26 Nylon bushing (Ref. č 26) A03E12201001 Nylon bushing  4 € 2,18 € 3
SKLADOM
25 WASHER 10 (Ref. č 25) GBT000971005 WASHER 10  1 € 2,18 € 3
SKLADOM
24 SPRING WASHER 10 (Ref. č 24) GB0000093005 SPRING WASHER 10  1 € 2,18 € 3
SKLADOM
23 NUT M10×1.25 (Ref. č 23) GBT006170001 NUT M10×1.25  1 € 2,48 € 3
SKLADOM
22 GBT006170004 TYPE 1 HEXAGON NUT M8  1 € 2,48 € 3
NA DOPYT
20 Hexagon flange bolt M8×25 (Ref. č 20) GBT005789016 Hexagon flange bolt M8×25  6 € 2,18 € 3
SKLADOM
19 U01_MAIN BRAKE PUMP GUARD BOARD (Ref. č 19) U01C00003002 U01_MAIN BRAKE PUMP GUARD BOARD  1 € 15,79 € 19
SKLADOM
18 U03-E115000-000-00 Foot brake main pump assy  1 € 97,44 € 120
NA DOPYT
2 SCREW M8×20 (Ref. č 2) BG026731-08020-ZA1 SCREW M8×20  16 € 1,74 € 2
SKLADOM
Kód produktu SEGWAY_2_224_UT6
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT6
