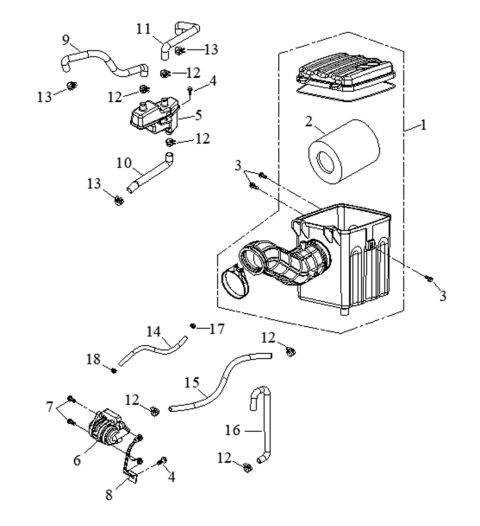

AIR FILTER ASS'Y

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  ACCESS_5_140_WARRIOR_450
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 Air Cleaner Ass'y (Ref. č 1) 17300-E12-000 Air Cleaner Ass'y  1 € 137,19 € 169
NA DOPYT

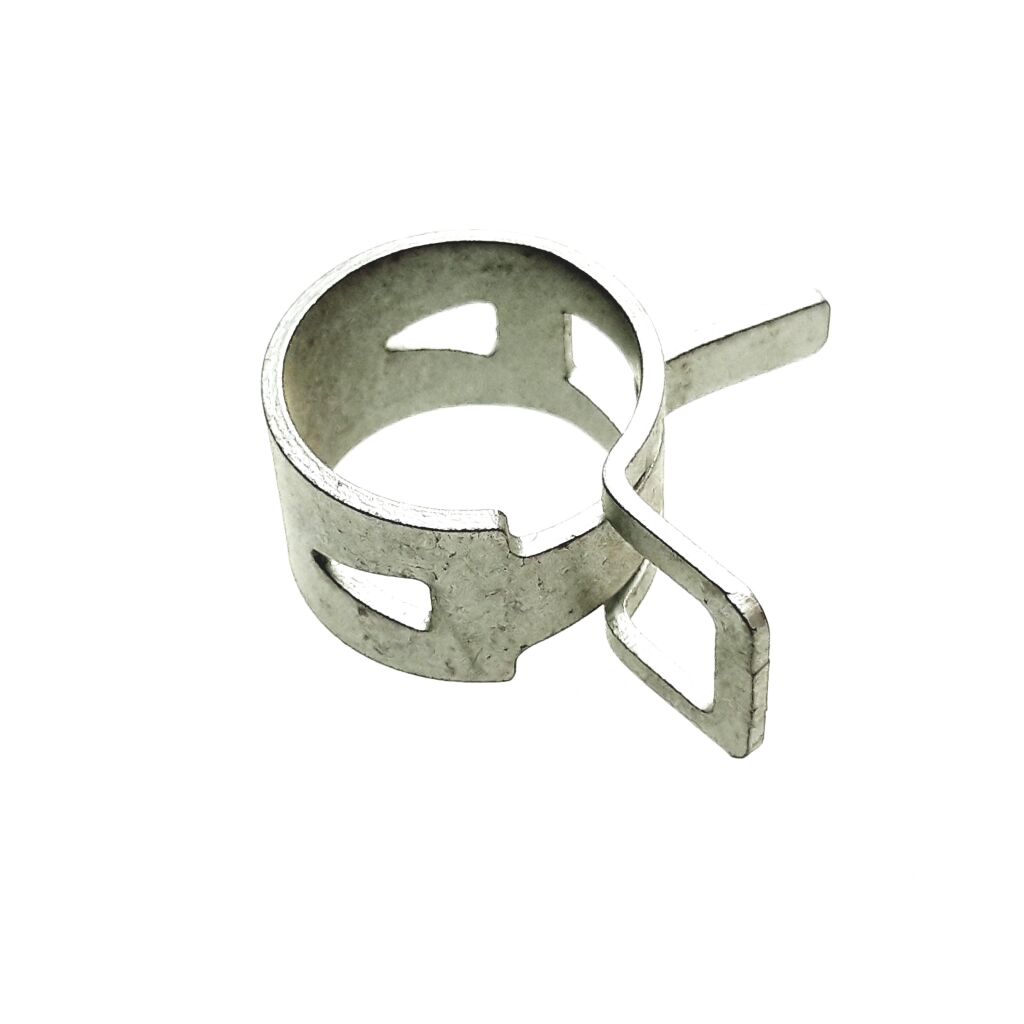

17 Clip (Ref. č 17) 97411-095-08 Clip  1 € 2,48 € 3
NA DOPYT

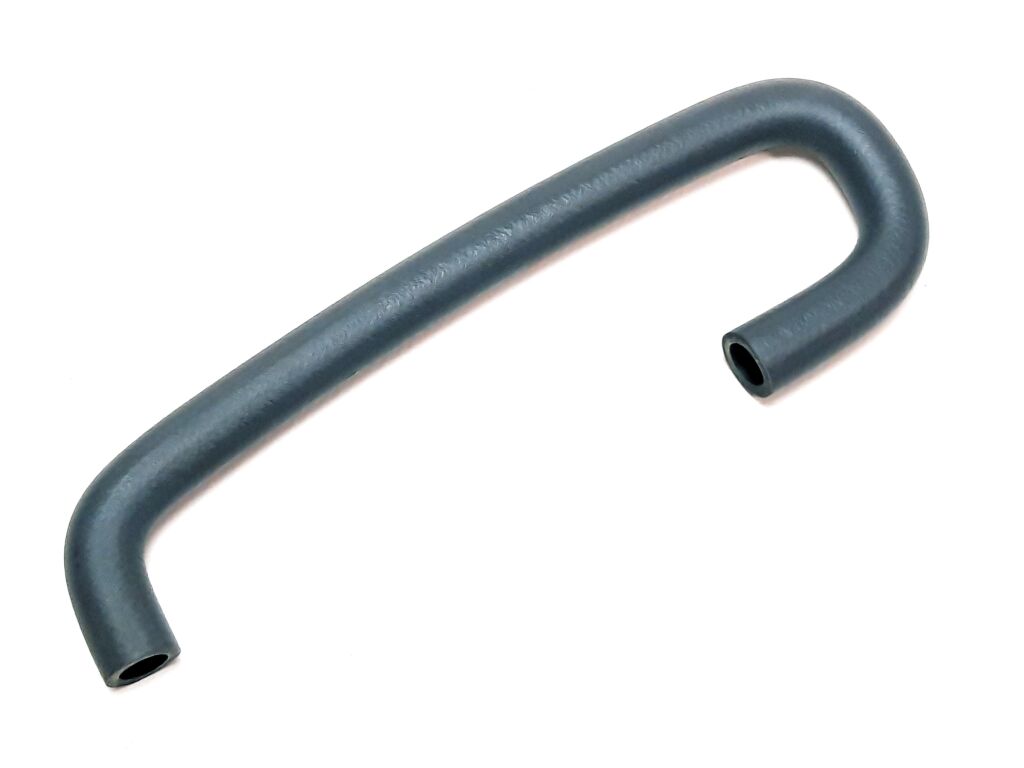

16 Hose, Pressure Release (Ref. č 16) 12168-A12-010 Hose, Pressure Release  1 € 6,61 € 8
SKLADOM
15 Hose, Air (Ref. č 15) 12168-A12-000 Hose, Air  1 € 8,26 € 10
SKLADOM
14 12313-A12-010 R/B 12313-A12-011 Vacuum Tube,Fuel  1 € 4,96 € 6
NA DOPYT
13 Clip (Ref. č 13) 97411-162-12 Clip  3 € 2,48 € 3
SKLADOM
12 Clip (Ref. č 12) 97411-178-10 Clip  6 € 2,48 € 3
SKLADOM
11 Hose, Pressure Release (Ref. č 11) 16314-A12-001 Hose, Pressure Release  1 € 4,13 € 5
SKLADOM
10 Hose, Pressure Release (Ref. č 10) 16313-A12-000 Hose, Pressure Release  1 € 4,13 € 5
NA DOPYT
9 Hose, Pressure Release (Ref. č 9) 16312-A12-000 Hose, Pressure Release  1 € 5,79 € 7
NA DOPYT
8 71207-A12-000 Bracket, Air Valve  1 € 5,79 € 7
NA DOPYT
7 Hex Washer Face Bolt (unavailable) (Ref. č 7) 91700-06016-10G Hex Washer Face Bolt (unavailable)  2 € 2,48 € 3
SKLADOM
6 Reed Valve Ass'y, Air (Ref. č 6) 12166-A12-000 Reed Valve Ass'y, Air  1 € 40,50 € 50
SKLADOM
5 Oil Filter, Box (Ref. č 5) 16300-E12-001 Oil Filter, Box  1 € 101,16 € 124
SKLADOM
4 Hex Washer Face Bolt R/B 92130-08S-12G (Ref. č 4) 91700-06012-10G Hex Washer Face Bolt R/B 92130-08S-12G  2 € 2,48 € 3
SKLADOM
3 Hex Washer Face Bolt (Ref. č 3) 91710-06012-10G Hex Washer Face Bolt  3 € 2,48 € 3
SKLADOM
2 Filter Element, Air Cleaner 450 (Ref. č 2) 17320-E12-000 Filter Element, Air Cleaner 450  1 € 21,49 € 26
SKLADOM
18 Clip (Ref. č 18) 97411-078-06 Clip  1 € 2,48 € 3
SKLADOM
Kód produktu ACCESS_5_140_WARRIOR_450
typ rozkresu: ENGINE PARTS
ZNACKA: ACCESS
TYP: ACCESS Warrior
MODEL: warrior 450
