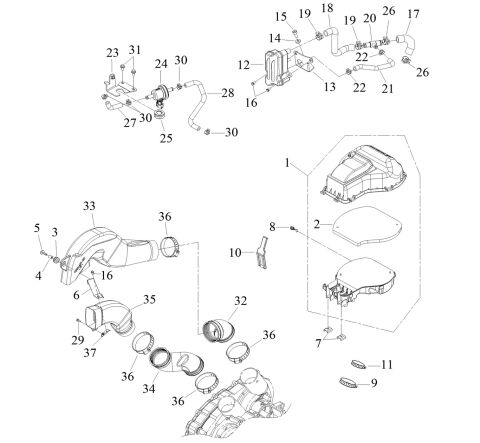

AIR FILTER ASS'Y

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  ACCESS_5_131_MAX_650i_LT
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 17300-E20-000 Air Cleaner Assy  1 € 95,87 € 118
NA DOPYT
21 16314-A27-000 Hose, Pressure Release  1 € 2,89 € 4
NA DOPYT
22 97411-138-08 Clip  2 € 1,90 € 2
NA DOPYT
23 83124-A27-000 bracket, Idle control valve  1 € 366,94 € 451
NA DOPYT
24 Idle Air Control Valve (Ref. č 24) 63220-A27-000 Idle Air Control Valve  1 € 71,07 € 87
NA DOPYT
25 Fixed Rubber (Ref. č 25) 93516-A27-000 Fixed Rubber  1 € 2,48 € 3
SKLADOM
26 97411-197-12 Clip  2 € 1,90 € 2
NA DOPYT
27 Vacuum Tube (Ref. č 27) 12313-A27-000 Vacuum Tube  1 € 2,48 € 3
NA DOPYT
28 Vacuum Tube (Ref. č 28) 12314-A27-000 Vacuum Tube  1 € 2,48 € 3
NA DOPYT
29 Bolt, Hex, Socker, Ladder (Ref. č 29) 91900-090025-12-1 Bolt, Hex, Socker, Ladder  1 € 2,48 € 3
SKLADOM
30 Clip (Ref. č 30) 97411-106-08 Clip  4 € 2,48 € 3
NA DOPYT
31 Hex Washer Face Bolt R/B 92130-08S-12G (Ref. č 31) 91700-06012-10G Hex Washer Face Bolt R/B 92130-08S-12G  2 € 2,48 € 3
SKLADOM
32 17363-E20-001 R/B 17363-U02-000 Connector, Breath out  1 € 9,09 € 11
NA DOPYT
33 17362-E20-001 Hose, Breath Out  1
NA DOPYT
Detail
34 Connector, Breath in (Ref. č 34) 17361-E20-000 Connector, Breath in  1 € 14,05 € 17
NA DOPYT
35 Hose, Breath (Ref. č 35) 17360-E20-000 Hose, Breath  1 € 11,57 € 14
SKLADOM

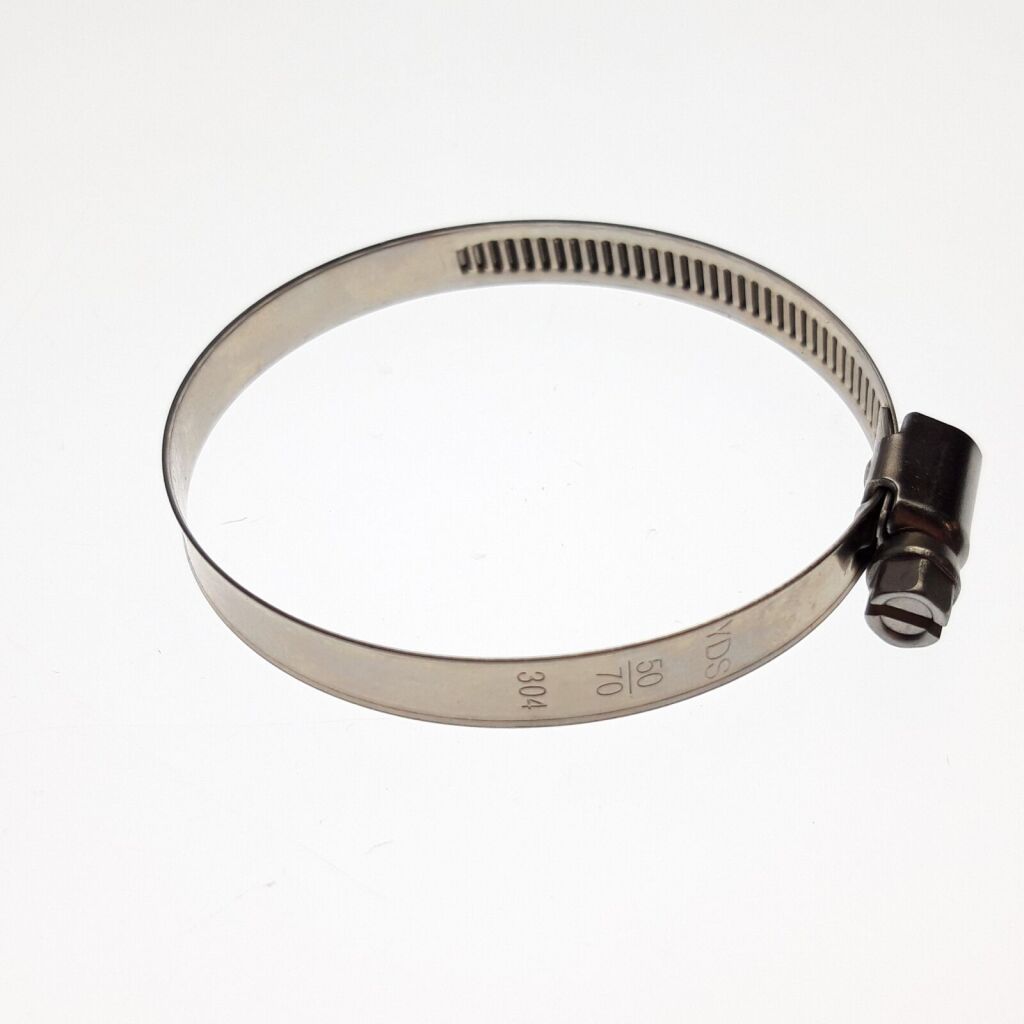

36 Clip (Ref. č 36) 97414-090090 Clip  4 € 3,31 € 4
NA DOPYT
20 15228-A27-010 Tee Connector  1 € 2,48 € 3
NA DOPYT
19 Clip (Ref. č 19) 97411-178-10 Clip  2 € 2,48 € 3
SKLADOM
18 16313-A27-000 Hose, Pressure Release  1 € 2,48 € 3
NA DOPYT
2 Filter Element, Air Cleaner (Ref. č 2) 17320-E20-000 Filter Element, Air Cleaner  1 € 12,40 € 15
SKLADOM
3 93509-A12-000 Cushion Rubber, Oil Tank  1 € 1,90 € 2
NA DOPYT
4 Spacer (Ref. č 4) 93300-0610-13 Spacer  1 € 2,48 € 3
SKLADOM
5 91750-06025-10G Bolt, Hex  1 € 1,90 € 2
NA DOPYT
6 83123-A27-010 Holder, Hose, Breath  1 € 5,21 € 6
NA DOPYT
7 17312-A27-000 shock absorber, Air Cleaner  2 € 1,90 € 2
NA DOPYT
8 PLUG, DRAIN (Ref. č 8) 93671-E20-000 PLUG, DRAIN  1 € 2,48 € 3
SKLADOM
9 Clip (Ref. č 9) 97414-070090 Clip  1 € 2,48 € 3
NA DOPYT
10 Tie, Air Cleaner (Ref. č 10) 17313-A27-000 Tie, Air Cleaner  1 € 2,48 € 3
NA DOPYT
11 Clip (Ref. č 11) 97414-060090 Clip  1 € 2,48 € 3
NA DOPYT
12 Oil Filter, Box (Ref. č 12) 16300-A27-000 Oil Filter, Box  1 € 9,92 € 12
NA DOPYT
13 71206-A27-000 Bracket,Oil Filter Box  1 € 5,79 € 7
NA DOPYT
14 Washer, Plain (Ref. č 14) 93100-06013-10W-2 Washer, Plain  1 € 2,48 € 3
SKLADOM
15 91760-06016-05W-1 Hex. Socket Bolt  1 € 1,90 € 2
NA DOPYT
16 Hex Washer Face Bolt (unavailable) (Ref. č 16) 91700-06016-10G Hex Washer Face Bolt (unavailable)  3 € 2,48 € 3
SKLADOM
17 16312-A27-000 Hose, Pressure Release  1 € 7,85 € 10
NA DOPYT
37 83123-A27-000 Holder, Hose, Breath  1 € 3,97 € 5
NA DOPYT
Kód produktu ACCESS_5_131_MAX_650i_LT
typ rozkresu: ENGINE PARTS
ZNACKA: ACCESS
TYP: ACCESS MAX
MODEL: MAX 650 LT EFI
