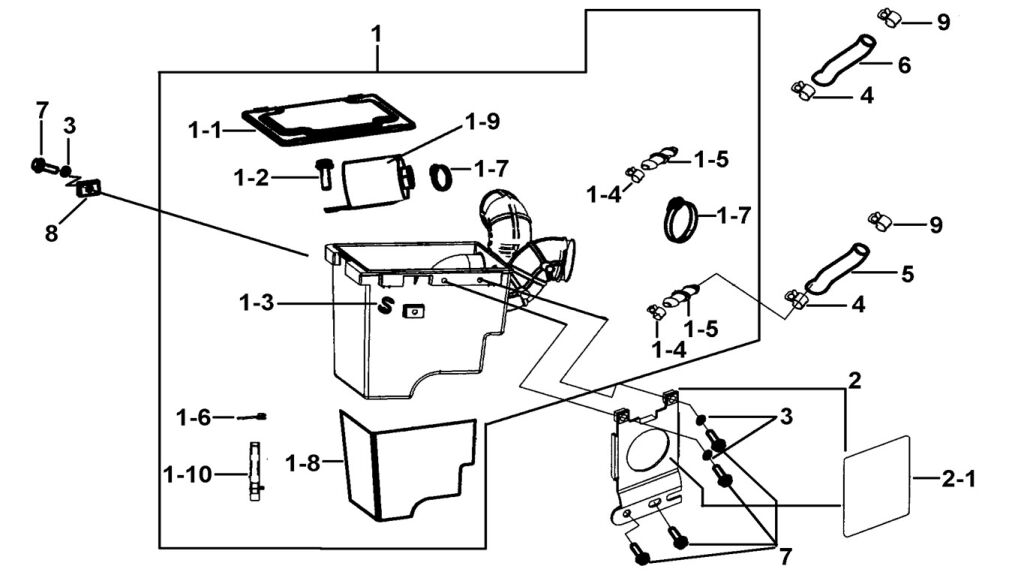

AIR CLEANER ASSY.

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_1_117_FBE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 AIR CLEANER ASSY. (Ref. č 01) 924119A AIR CLEANER ASSY.  1 € 109,34 € 134
SKLADOM
02 BRACKET, AIR CLEANER (Ref. č 02) 924691A BRACKET, AIR CLEANER  1 € 12,98 € 16
SKLADOM
02.1 924743 HEAT INSULATION  1 € 4,30 € 5
NA DOPYT
03 WASHER (Ref. č 03) W99605 WASHER  3 € 2,40 € 3
SKLADOM
04 CLIP  (Ref. č 04) R40201 CLIP   2 € 2,40 € 3
SKLADOM
05 TWO INTAKE DUCTS RH. (Ref. č 05) 924737 TWO INTAKE DUCTS RH.  1 € 9,09 € 11
NA DOPYT
06 TWO INTAKE DUCTS LH. (Ref. č 06) 924692 TWO INTAKE DUCTS LH.  1 € 4,79 € 6
SKLADOM
07 SCREW, FLANGE, HEX HEAD (Ref. č 07) S20603 SCREW, FLANGE, HEX HEAD  5 € 2,40 € 3
SKLADOM
08 NUT, SPECIAL (Ref. č 08) 924684 NUT, SPECIAL  1 € 3,97 € 5
SKLADOM
01.9 FILTER (Ref. č 01-9) 924120 FILTER  1 € 50,91 € 63
SKLADOM
01.8 HEAT INSULATION (Ref. č 01-8) 924740 HEAT INSULATION  1 € 25,54 € 31
NA DOPYT
01.1 COVER, AIR CLEANER (Ref. č 01-1) 924607 COVER, AIR CLEANER  1 € 11,32 € 14
NA DOPYT
01.10 TUBE (Ref. č 01-10) 924124 TUBE  1 € 5,45 € 7
SKLADOM
01.2 GA557SC12 SCREW,PAN HEAD M5X10  1 € 2,40 € 3
NA DOPYT
01.3 "S" CLIP (Ref. č 01-3) 923278 "S" CLIP  4 € 3,22 € 4
NA DOPYT
01.4 R40101 HOSE CLAMP BATTEN  2 € 13,72 € 17
NA DOPYT
01.5 924733 TWO THIROUGH -HOLE  2 € 2,89 € 4
NA DOPYT
01.6 CLAMP (Ref. č 01-6) R36401 CLAMP  1 € 2,40 € 3
SKLADOM
01.7 R66802 CLIP  2 € 7,19 € 9
NA DOPYT
09 CLIP (Ref. č 09) R40501 CLIP  2 € 2,15 € 3
SKLADOM
Kód produktu TGB_1_117_FBE
typ rozkresu: ENGINE PARTS
TYP: BLADE 425
ZNACKA: TGB
MODEL: BLADE 425
