DRIVE SHAFT, NARROW VERSION

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_244_AT10_A9_ABS
MODEL:

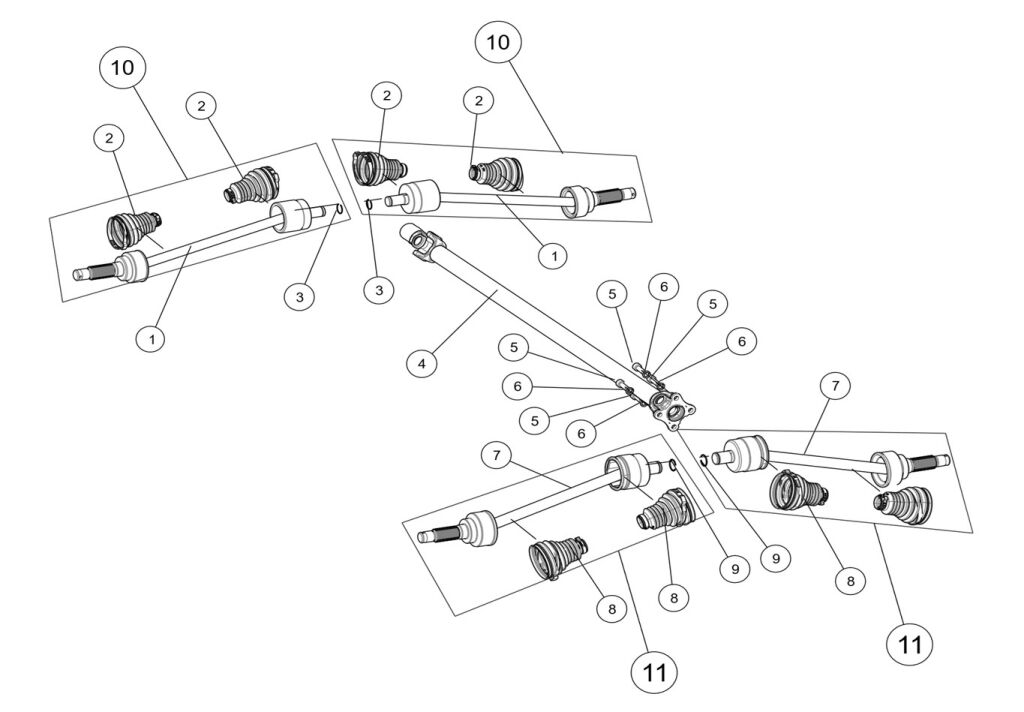

Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 A12-P110010-000-00 INNER SHAFT AND CAGE - FRONT  2 € 101,82 € 125
NA DOPYT

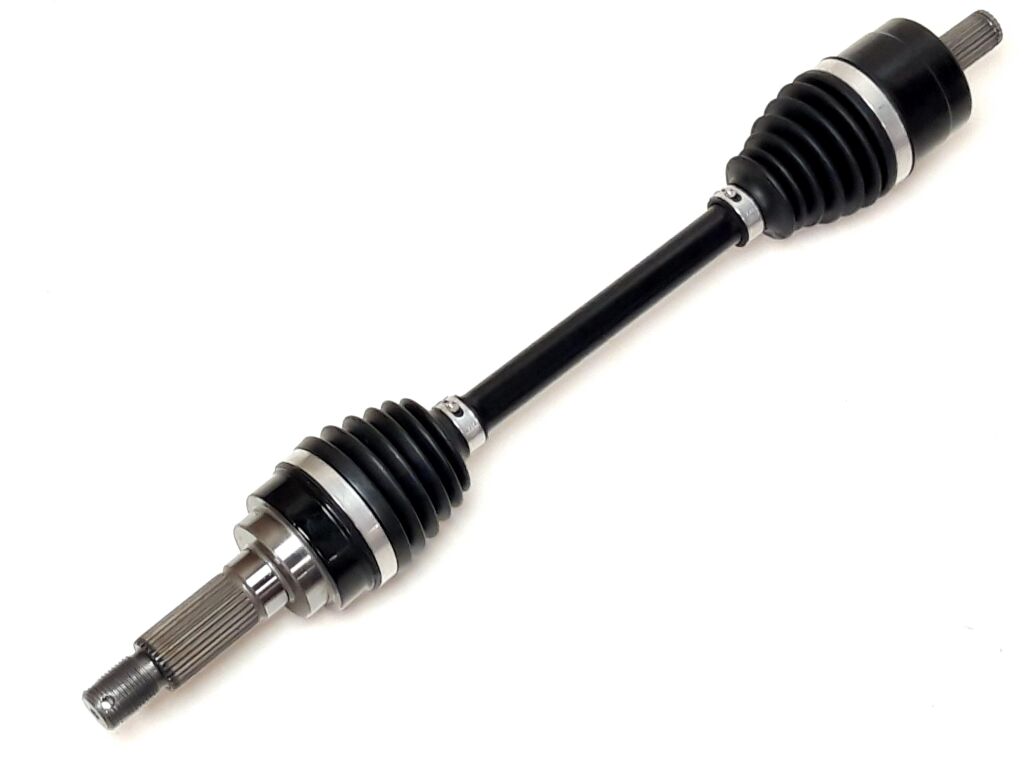

10 FRONT CV SHAFT (Ref. č 10) A12-P110000-000-00 FRONT CV SHAFT  2 € 107,60 € 132
SKLADOM
9 INNER CAGE RETAINING RING (Ref. č 9) A12-P130020-000-00 INNER CAGE RETAINING RING  2 € 1,74 € 2
SKLADOM
8 DUST COVER ASSY (Ref. č 8) A12-P130030-000-00 DUST COVER ASSY  3 € 30,25 € 37
SKLADOM
7 A12-P130010-000-00 INNER SHAFT AND CAGE - REAR  2 € 110,91 € 136
NA DOPYT
6 SPRING WASHER 10 (Ref. č 6) GB0000093005 SPRING WASHER 10  4 € 2,18 € 3
SKLADOM
5 Hexagon flange bolt M10×1.25×25 (Ref. č 5) GBT000701003 Hexagon flange bolt M10×1.25×25  4 € 2,48 € 3
SKLADOM

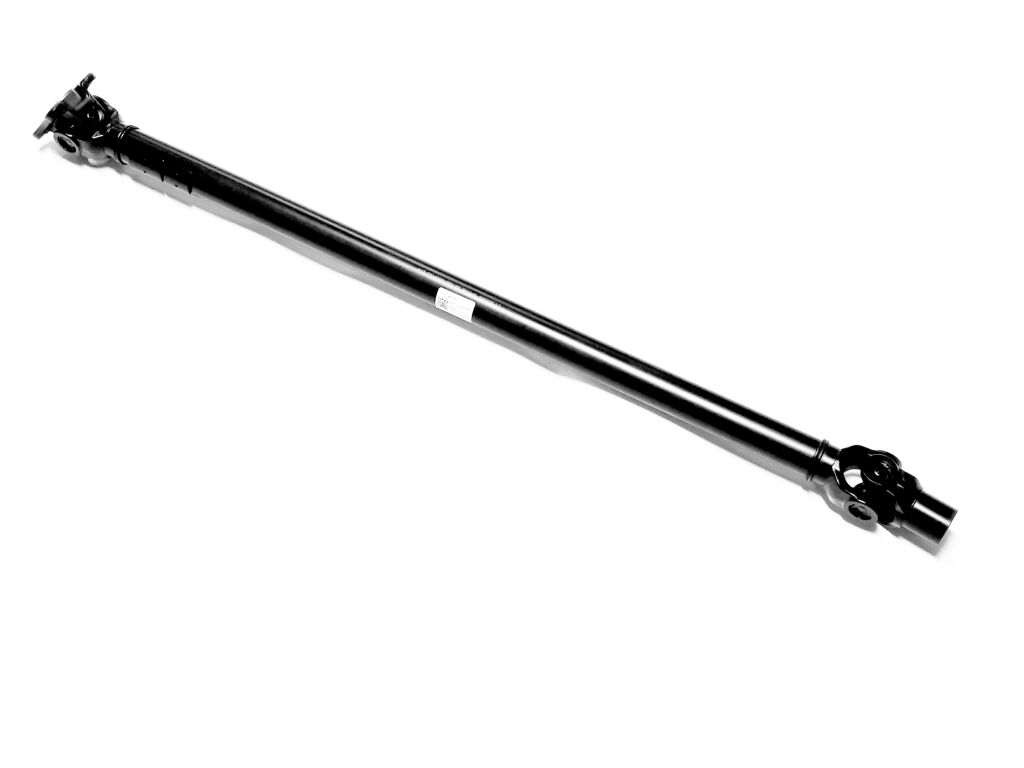

4 FRONT TRANSMISSION SHAFT (Ref. č 4) A12-P210000-000-00 FRONT TRANSMISSION SHAFT  1 € 116,45 € 143
SKLADOM
3 INNER CAGE RETAINING RING (Ref. č 3) A12-P110020-000-00 INNER CAGE RETAINING RING  2 € 1,74 € 2
SKLADOM
2 DUST COVER ASSY (Ref. č 2) A12-P110030-000-00 DUST COVER ASSY  4 € 29,09 € 36
SKLADOM
11 REAR CV SHAFT (Ref. č 11) A12-P130000-000-00 REAR CV SHAFT  2 € 113,31 € 139
SKLADOM
Kód produktu SEGWAY_2_244_AT10_A9_ABS
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: AT10
MODEL: AT10L ABS
